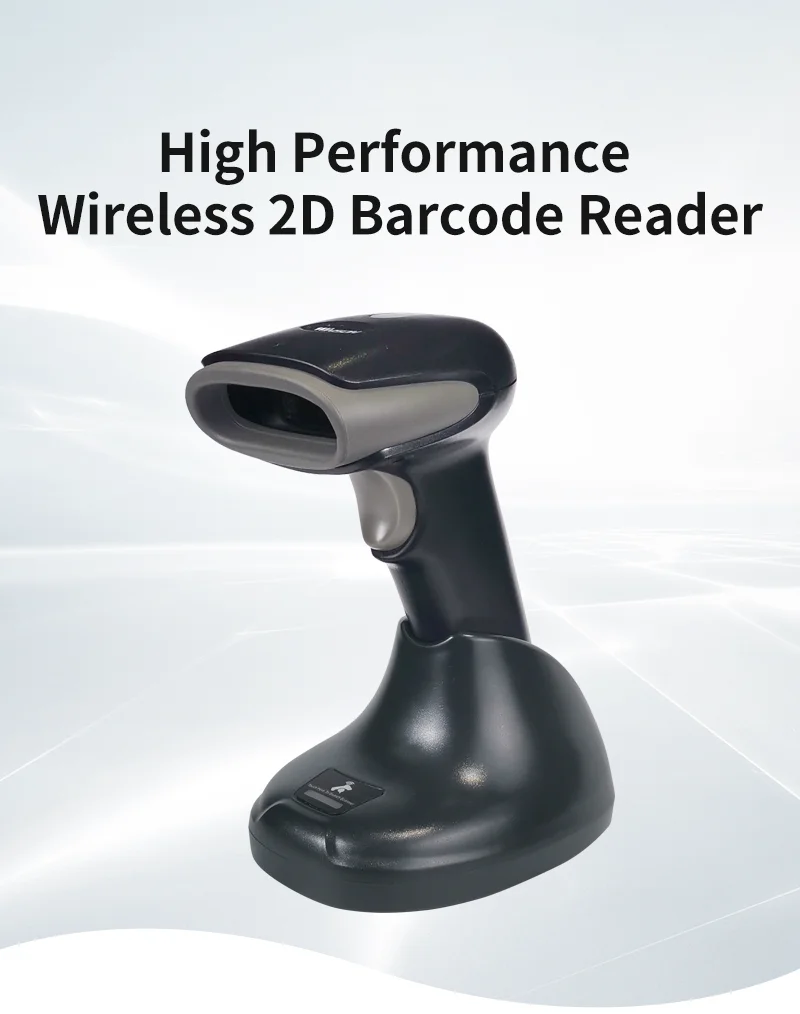

2024 NEW High Speed 1D 2D Wireless Code Scanner Scan Reader Qr Barcode Scanner
Model: WNI-6382/V
Specifications
Product Description
Specification
Communication mode | Wired transmission mode/ Wireless Read-time mode/Inventory mode/Cache mode | ||
Communication frequency | 2.402 to 2.480GHz | ||
Transmission range | ≤30M(In empty area 30M ) | ||
Battery capacity | 1500mAh (Lithium battery) | ||
Charge Time from Empty to Full Charge | 4.5H | ||
Scans per Battery Charge | 30,000 (1 scan per second) | ||
Memory | 100,000@13Byte barcode | ||
Interface Supported | USB HID KEYBOARD/USB VCP | ||
Input Voltage | DC 5V±10% | ||
Current | Max:190mA | ||
Image Sensor | CMOS Array Sensor | ||
Sensor Resolution | 640X480 Pixels | ||
Light Source | White LED | ||
Aim Light Source | Red Bar LED | ||
Scanning Angle | Pitch angle:±60°;Skew angle:±40°;Tilt angle:±180° | ||
Field of View | 66°(H),50°(V) | ||
Min Resolution | 1D:0.127mm/5mil(PCS 0.9) 2D:0.202mm/8mil(PCS 0.9) | ||
Min .PCS value | >20%UPC/EAN 13(13mil) | ||
Language | Multiple Languages | ||
Data Edition | Support for custom data output | ||
Dimensions | Scanner:90mm*67mm*168mm(L*W*H) Receiver:55mm*24mm*8mm(L*W*H) | ||
Weight | Scanner:160g Receiver:5g | ||
Indicator | Beeper, LED | ||
Temperature | 0° to 50°C / 32° to 122°F(operation) /-10° to 60°C /14° to140°F(storage) | ||
Humidity | 20 - 85% (operation) ) 20 - 90% (storage) | ||
Shock Drop Test | 1.5m drop onto concrete surface | ||
