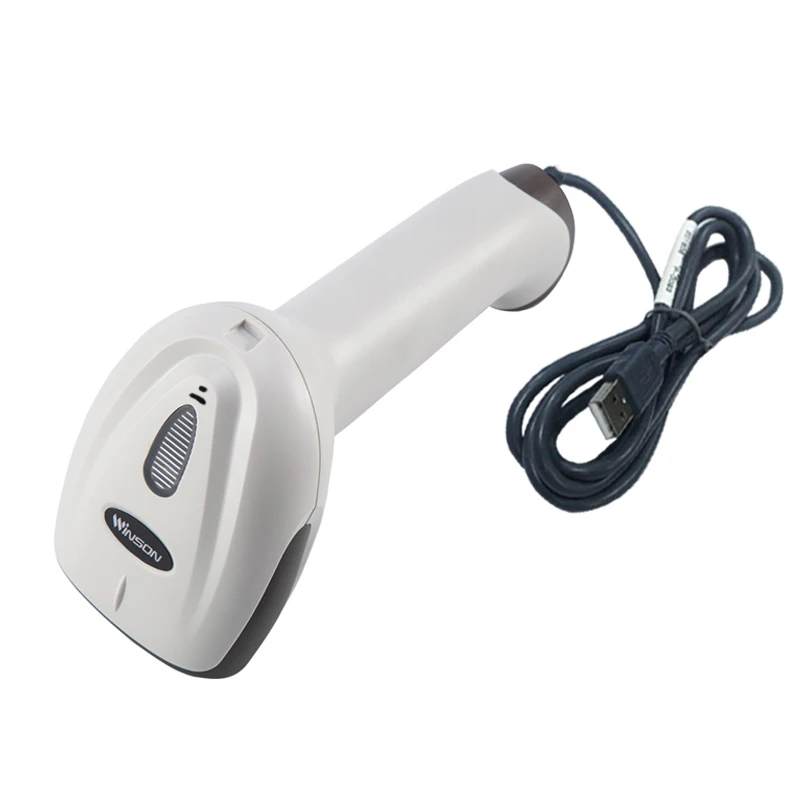

Barcode Scanners Wired Handheld Barcode Scanner Codes Android 1D 2D QR Code Reader
Model: WNI-6210g
Specifications
Product Description
Specification
Interface Supported | RS-232/USB HID KEYBOARD/USB VCP |
Input Voltage | DC 5V±10% |
Current | Max:180mA |
Image Sensor | CMOS Array Sensor |
Sensor Resolution | 640X480 Pixels |
Light Source | White LED |
Aim Light Source | Red Bar LED |
Scanning Angle | Pitch angle:±65°;Skew angle:±60°;Tilt angle:±180° |
Min Resolution | 1D：0.101mm/4mil（PCS 0.9） 2D：0.178mm/7mil（PCS 0.9） |
Min .PCS value | 〉20% UPC/EAN 13（13mil） |
Language | Multiple Languages |
Data Edition | Support for custom data output |
Decode Capability | 1d : UPC/EAN, Code 128, Code 39,Code 93, Interleaved 2 of 5,Codabar, 2d : QR ,Mirco QR,PDF417 ,MircoPDF417,Data Matrix,Aztec |
Dimensions | 90mm*67mm*168mm(L*W*H) |
Weight | 120g |
Indicator | Beeper, LED |
