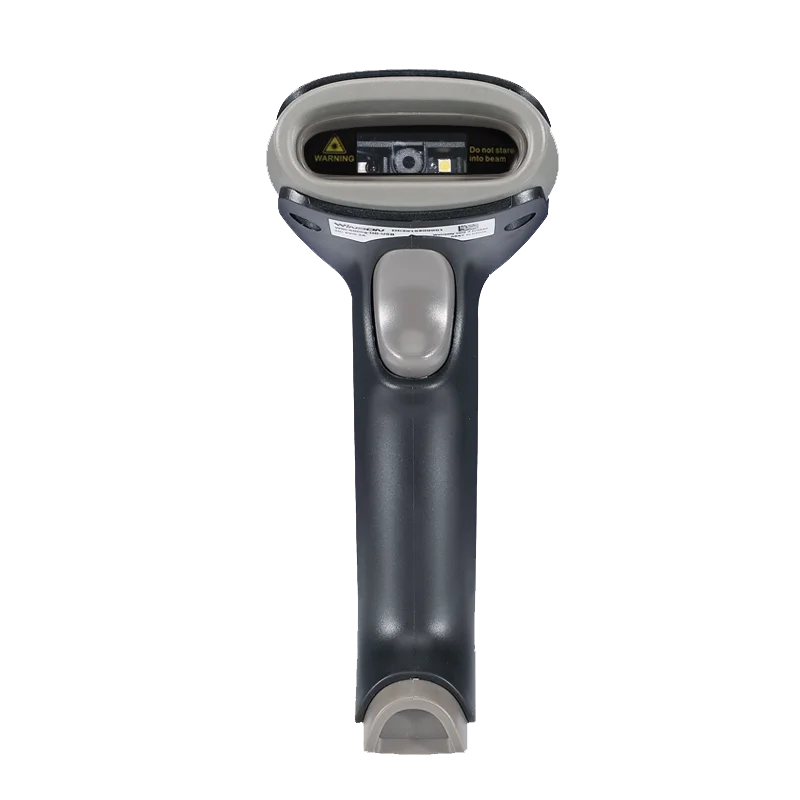

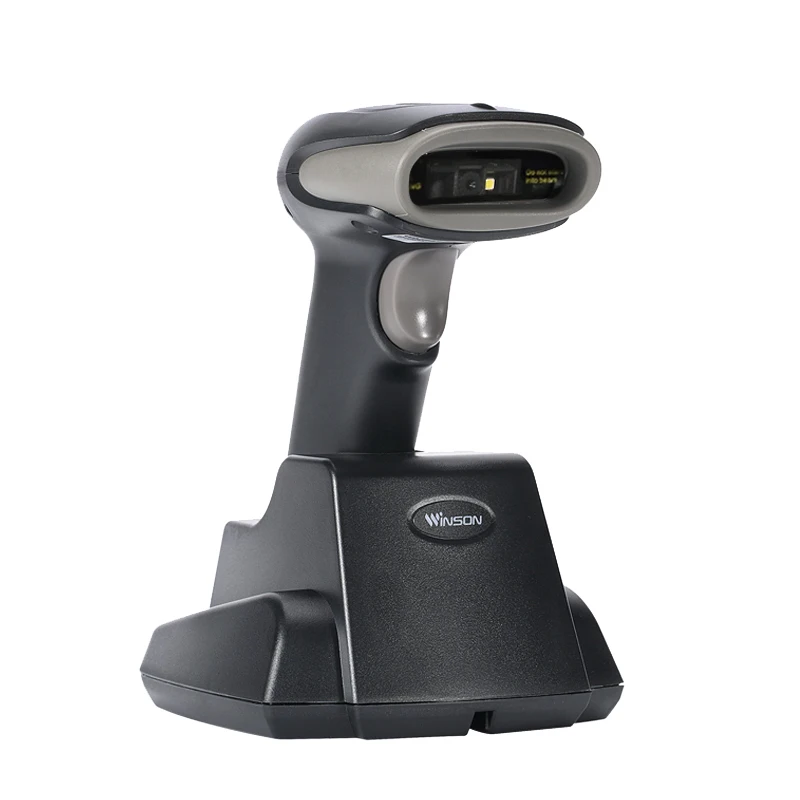

Portable 2D QR Code Barcode Scanner Pos QR Code Payment Barcode Scanner

Communication mode

Wired transmission mode/ Wireless Read-time mode/Inventory mode／Cache mode

Communication frequency

433MHz to 440MHz

Transmission range

≤100M（In empty area 100M ）

Battery capacity

2000mAh (Lithium battery)

Charge Time from Empty to Full Charge

6H

Scans per Battery Charge

25,000 （1 scan per second）

Memory

100，000@13Byte barcode

Interface Supported

USB HID KEYBOARD/USB VCP/RS232

Input Voltage

DC 5V±10%

Current

Max:250mA

Image Sensor

CMOS Array Sensor

Sensor Resolution

1280 x 800pixels

Light Source

White LED

Aim Light Source

Red Bar LED

Scanning Angle

Pitch angle:±70°;Skew angle:±70°;Tilt angle:±180°

Min Resolution

1D ≥0.101/4mil（PCS 0.9）
2D ≥0.178/7mil（PCS 0.9）

Min .PCS value

〉20%UPC/EAN 13（13mil）

Language

Multiple Languages

Data Edition

Support for custom data output

Decode Capability

1D：UPC-A/UPC-E；EAN-8/EAN-13；Code128；Code39；Code93；Code32；Code11；Codabar；Plessey；MSI；Interleaved 2 of 5；IATA 2 of 5；Matrix 2 of
5；Straight 2 of 5；Pharmacode；RSS-14；RSS-14 Expanded；RSS-14 Limited；Composite Code-A；Composite Code-B；Composite Code-C；
2D：PDF417；Micro PDF417；Data Matrix；QRcode；Micro QR；Aztec；MaxiCode

Dimensions

Scanner：90mm*67mm*168mm(L*W*H)
Receiver：145mm*112mm*74mm(L*W*H)
