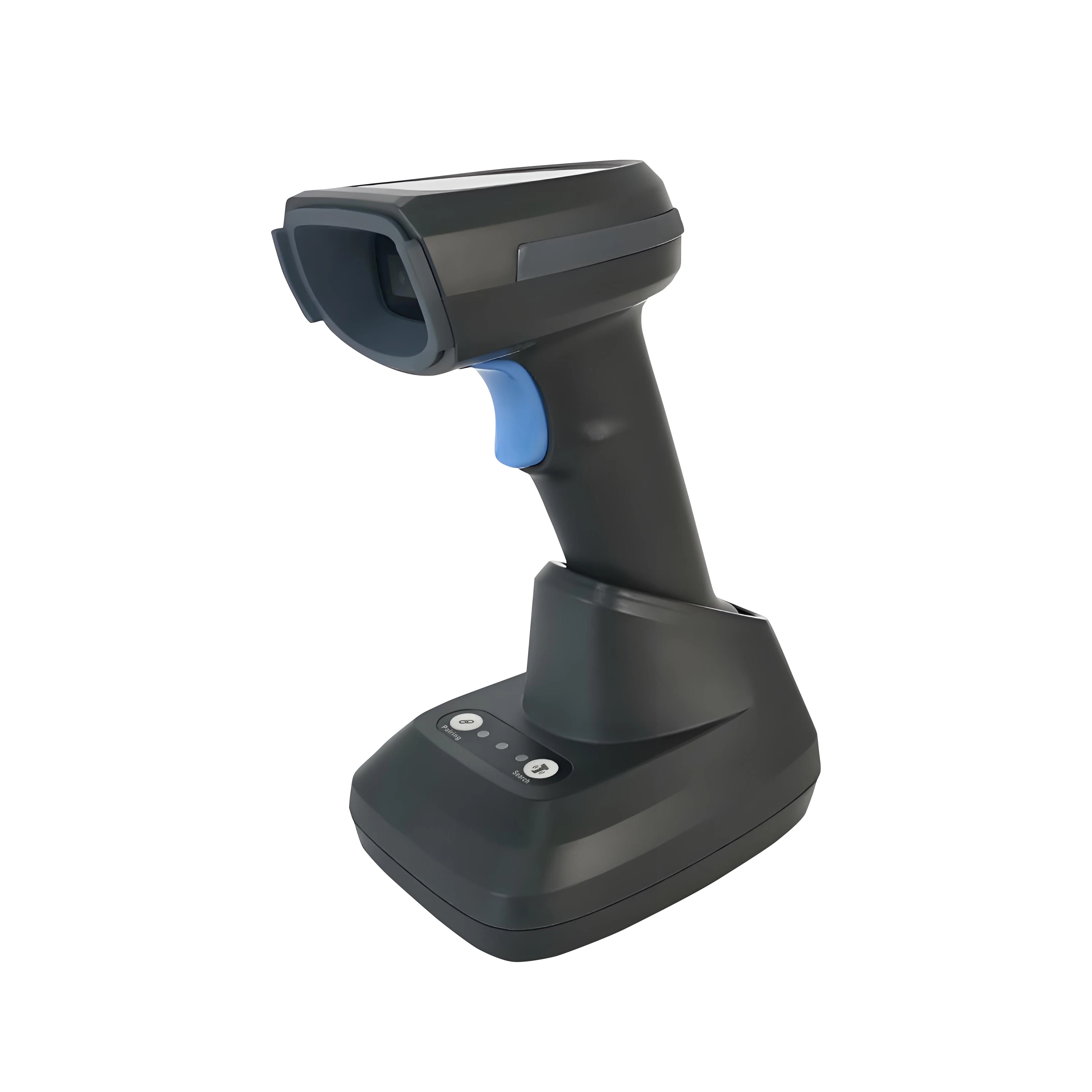

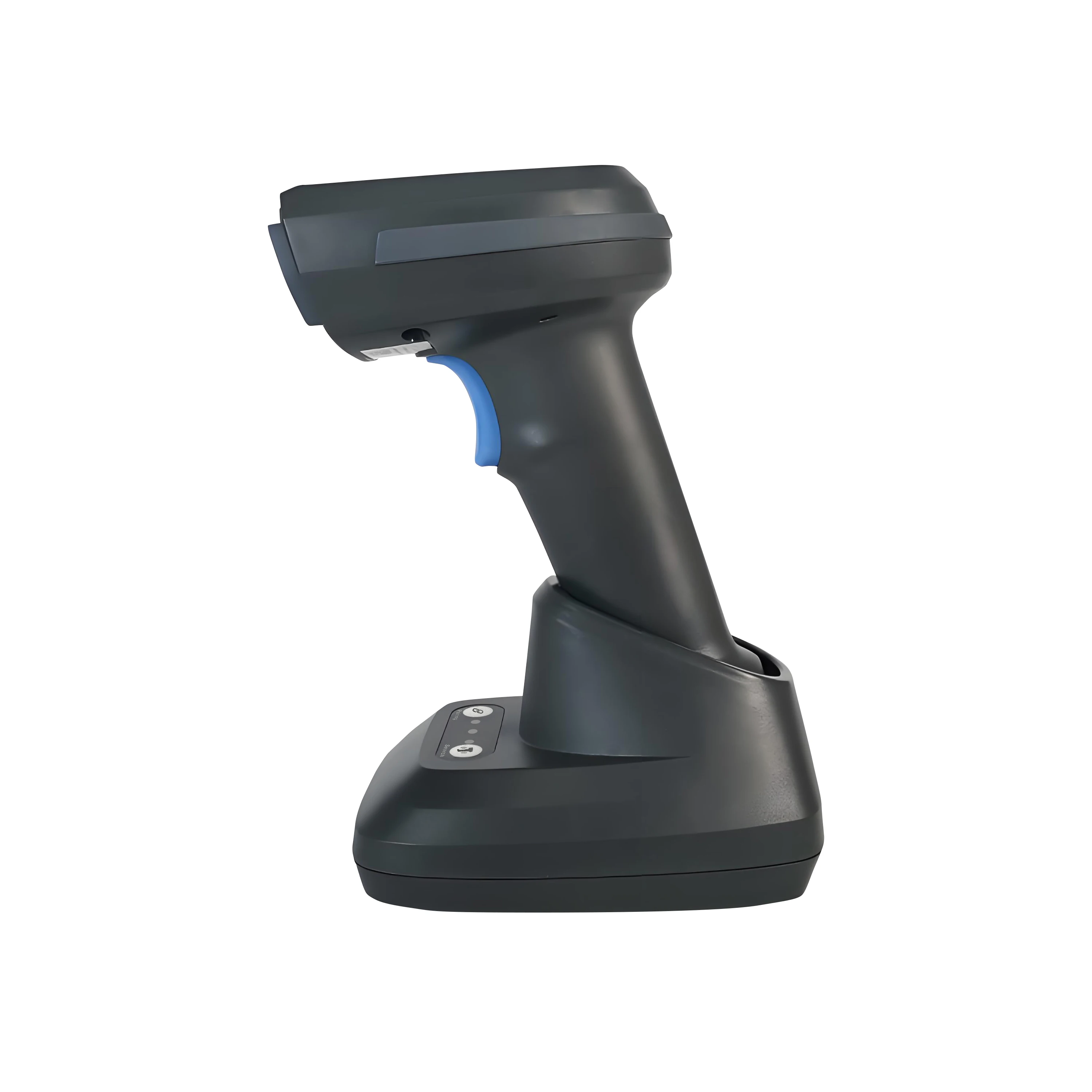

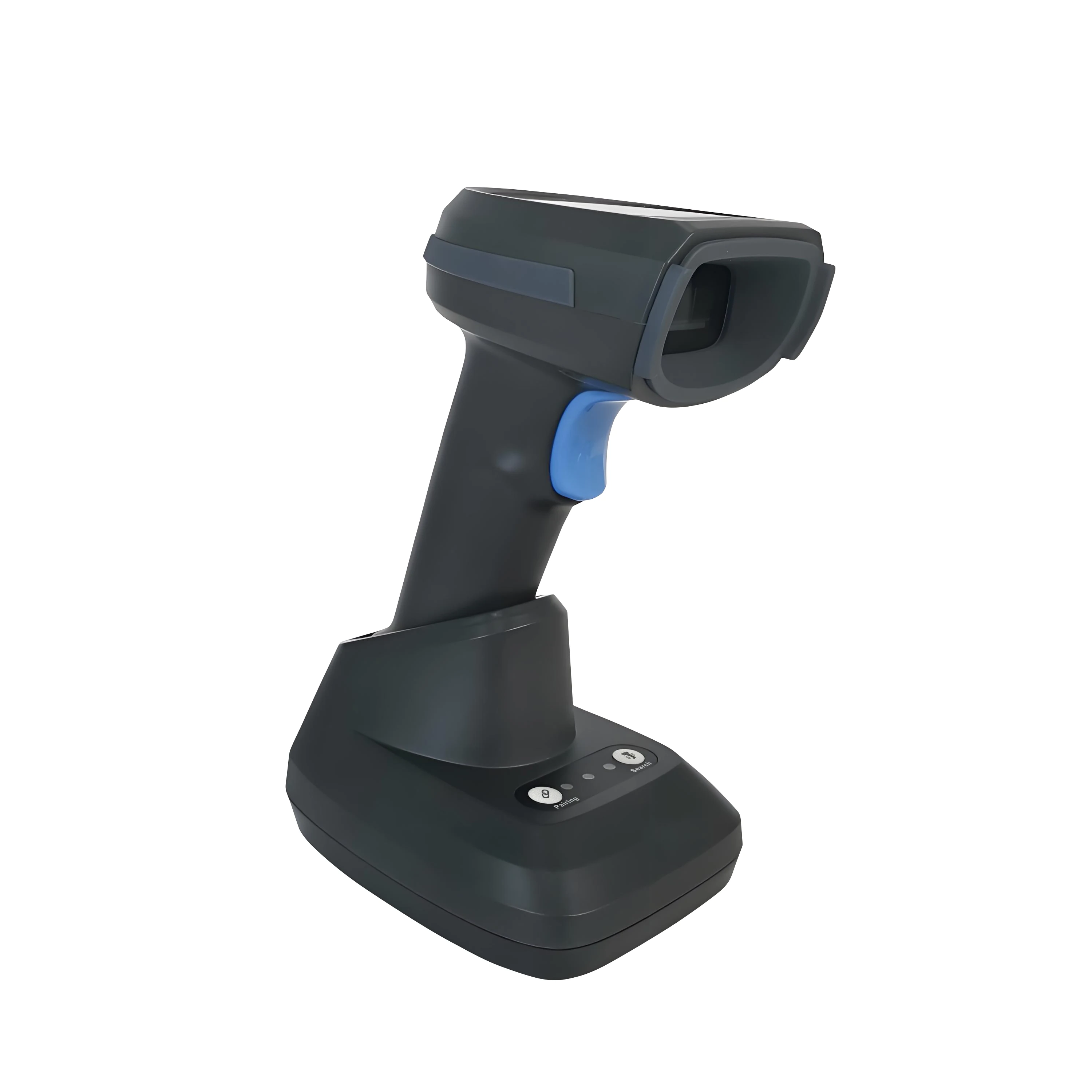

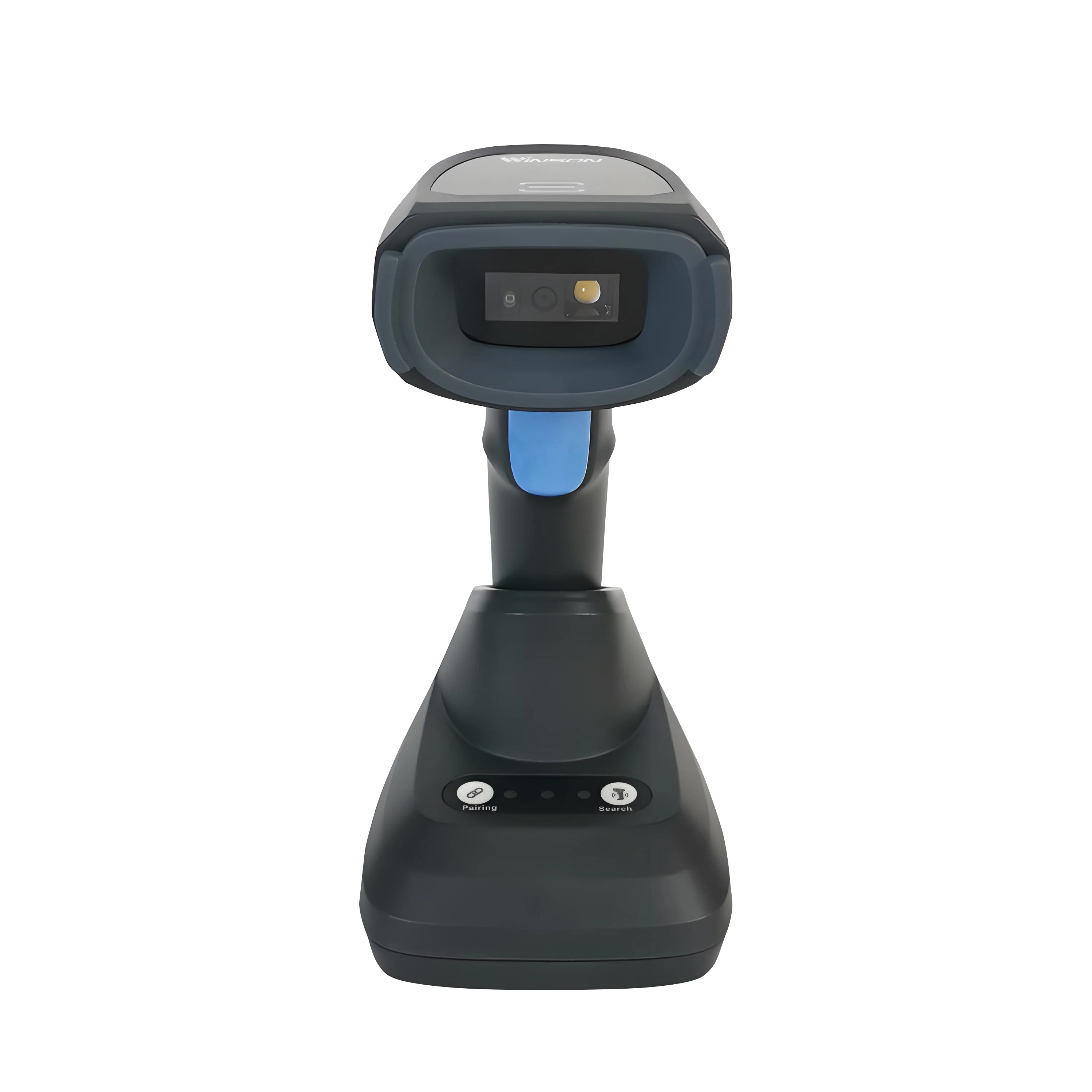

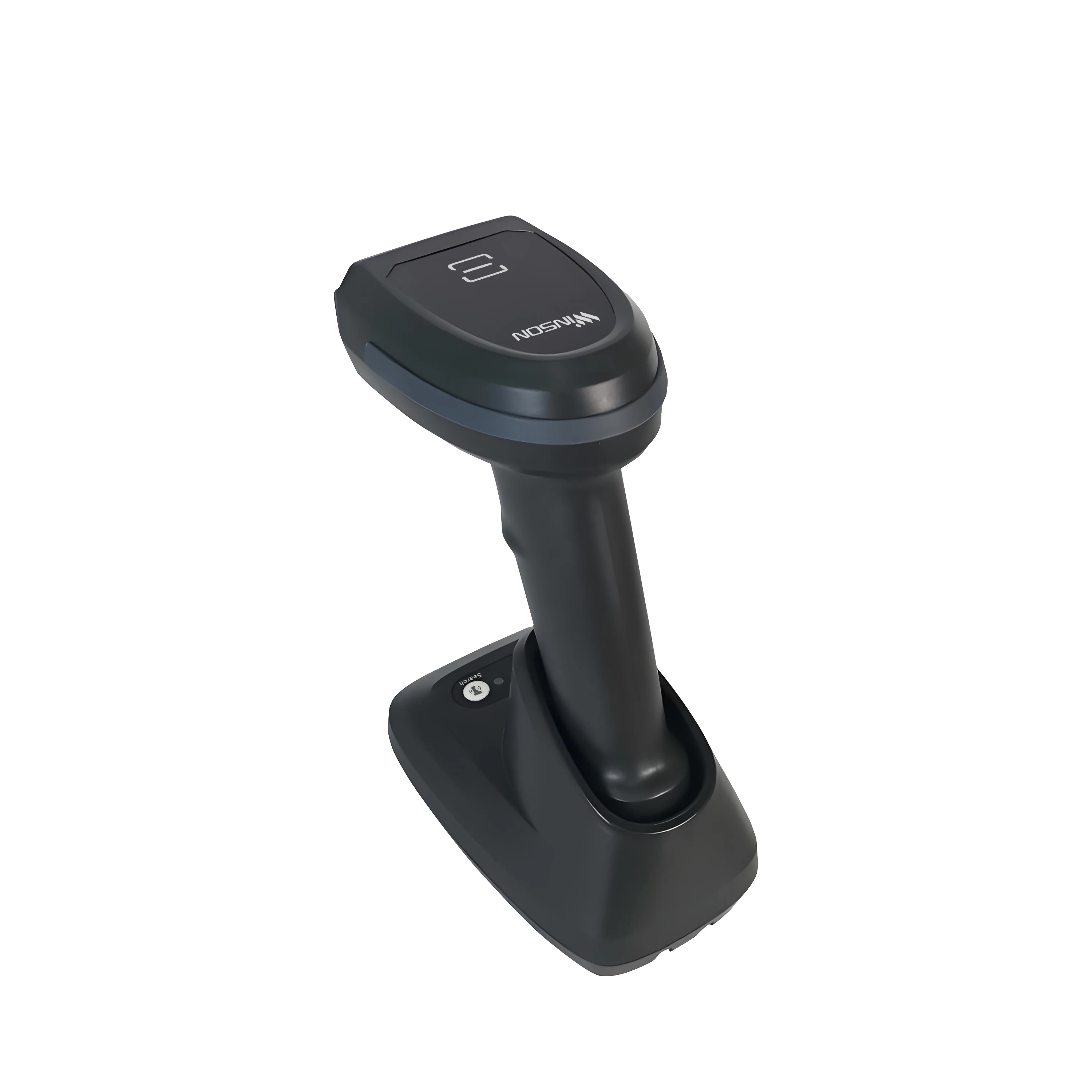

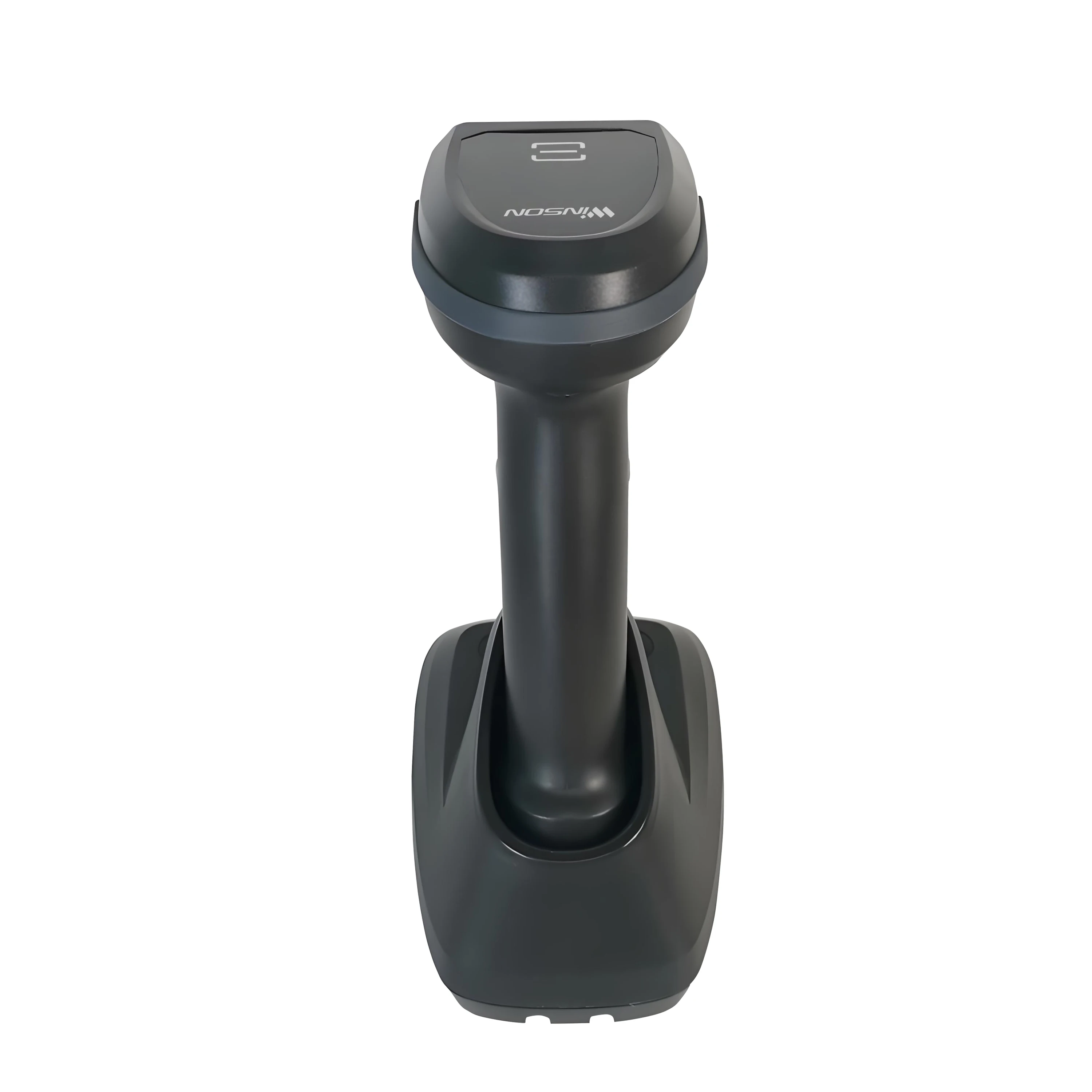

Winson Red LED Omni Directional Passport OCR QR Code 1D 2D Barcode Scanner

Interface Supported

USB HID KEYBOARD/USB VCP or RS-232

Input Voltage

DC 5V±10%

Current

300mA

Image Sensor

CMOS Array Sensor

Sensor Resolution

1280x1024 Pixels

Light Source

White LED

Aim Light Source

625nm Red Bar LED

Scanning Angle

Pitch angle:±50°;
Skew angle:±50°;
Tilt angle:±180°

Field of View

45°(H),34°(V)

Min Resolution

≥3mil

Min .PCS value

30% UPC/EAN 13(13mil)

Language

Multiple Languages

Decode Capability

1D :Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industial、Straight 2 of 5
IATA，Matrix 2 of 5，Code 11、Code 128、GS1-128、UPC-A、UPC-E、 EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post
2D：Passport-OCR、Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、Data Matrix、MaxiCode、Aztec、HANXIN.

Dimensions

98mm*70mm*108mm(L*W*H)

Indicator

Beeper, LED
