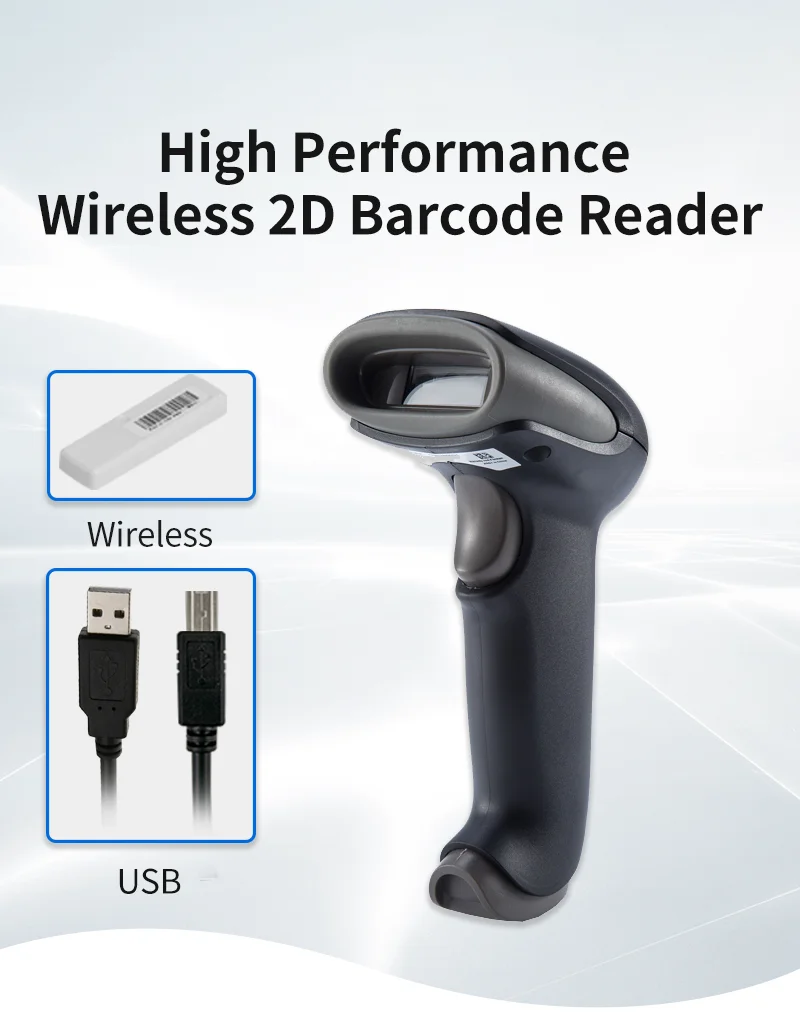

2D Barcode Scanner with Stand Automatic Sensing Scanning QR Bar Code Reader PDF417 for Mobile Payment A4 Gua Stock 32 Bit CMOS
Model: WNI-6384/V
Specifications
Product Description
Specification
Technical Specifications | ||
Wireless specifications | ||
Communication mode | Wireless Read-time mode／Cache mode | |
Communication frequency | BT 4.2 | |
Transmission range | ≤10M(In empty area 15M) | |
Battery capacity | 2000mAh (Lithium battery) | |
Charge Time from Empty to Full Charge | 4.5H | |
Scans per Battery Charge | 20,000 （1 scan per second） | |
Memory | 100，000@13Byte barcode | |
Electrical Characteristics | ||
Interface Supported | USB HID KEYBOARD/USB VCP | |
Input Voltage | DC 5V±10% | |
Current | Max:250mA | |
Optical Characteristics | ||
Image Sensor | CMOS Array Sensor | |
Sensor Resolution | 1280 x 800pixels | |
Light Source | White LED | |
Aim Light Source | Red Bar LED | |
Performance Characteristics | ||
Scanning Angle | Pitch angle:±70°;Skew angle:±70°;Tilt angle:±180° | |
Min Resolution | 1D ≥0.101/4mil (PCS 0.9) 2D ≥0.178/7mil (PCS 0.9) | |
Min .PCS value | >20%UPC/EAN 13 (13mil) | |
Language | Multiple Languages | |
Data Edition | Support for custom data output | |
Decode Capability | 1D: UPC-A/UPC-E；EAN-8/EAN-13；Code128；Code39；Code93；Code32；Code11；Codabar；Plessey；MSI；Interleaved 2 of 5；IATA 2 of 5；Matrix 2 of 5；Straight 2 of 5；Pharmacode；RSS-14；RSS-14 Expanded；RSS-14 Limited；Composite Code-A；Composite Code-B；Composite Code-C； 2D: PDF417；Micro PDF417；Data Matrix；QRcode；Micro QR；Aztec；MaxiCode | |
Physical Characteristics | ||
Dimensions | Scanner:90mm*67mm*168mm(L*W*H) | |
Weight | Scanner:160g | |
Indicator | Beeper, LED | |
