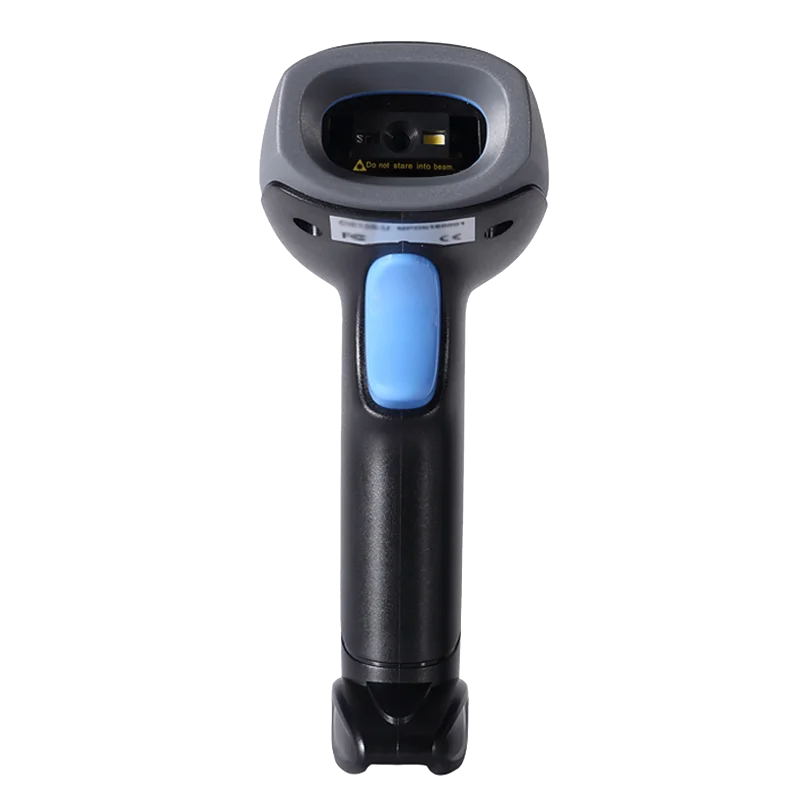

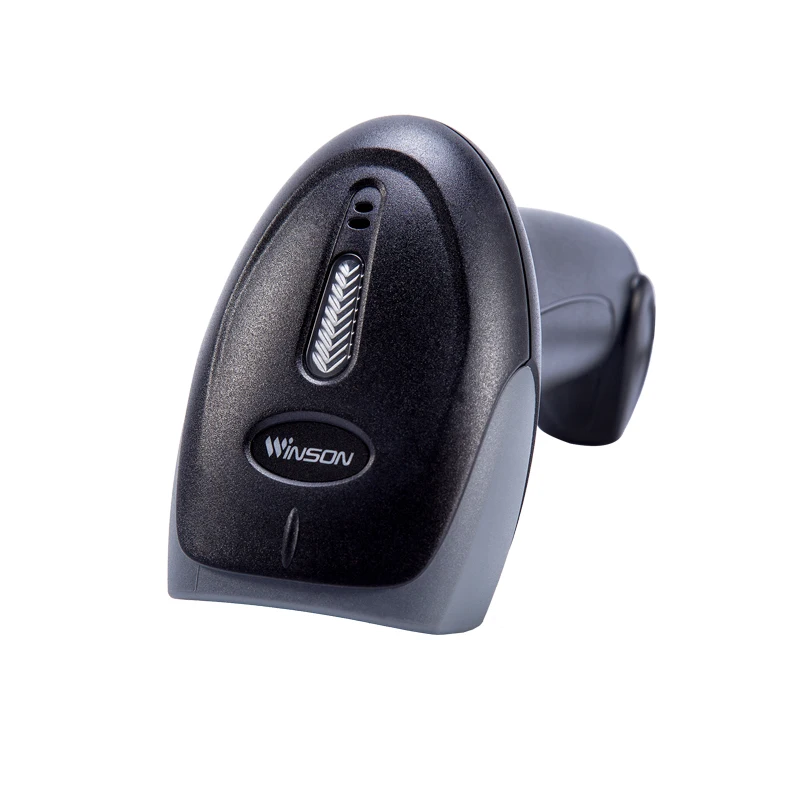

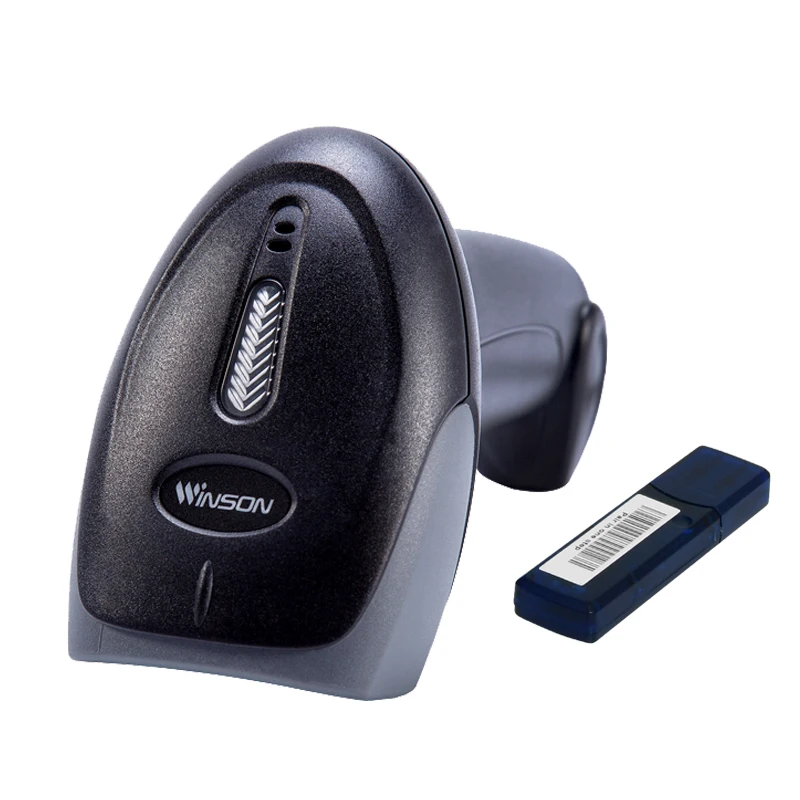

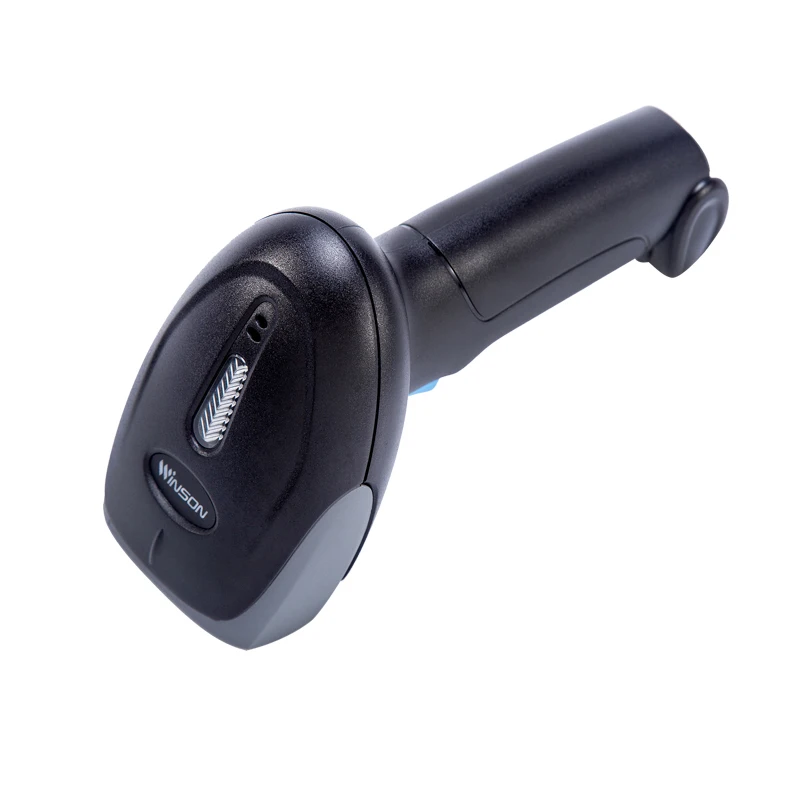

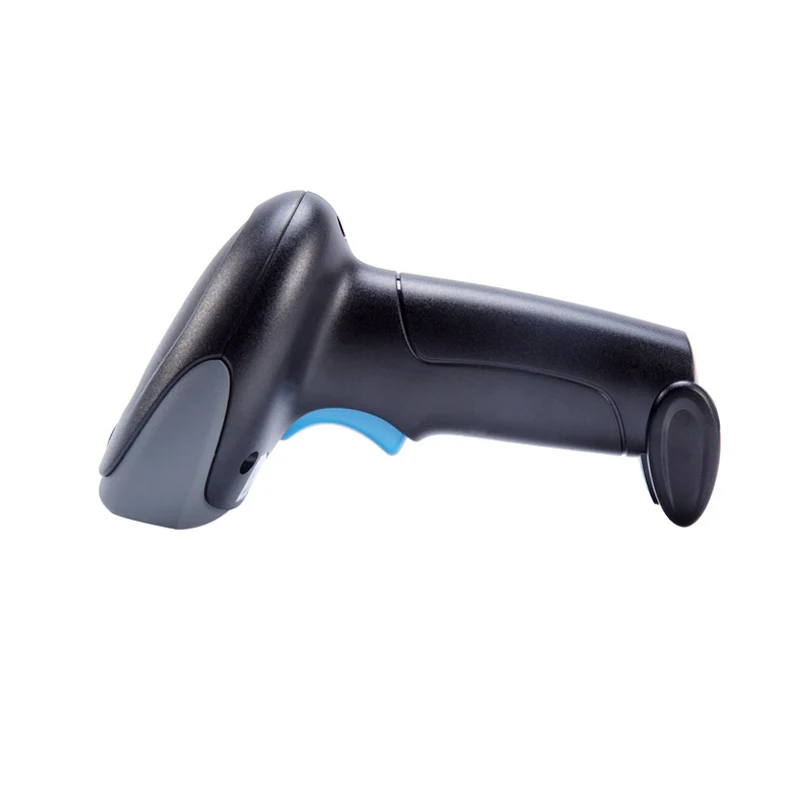

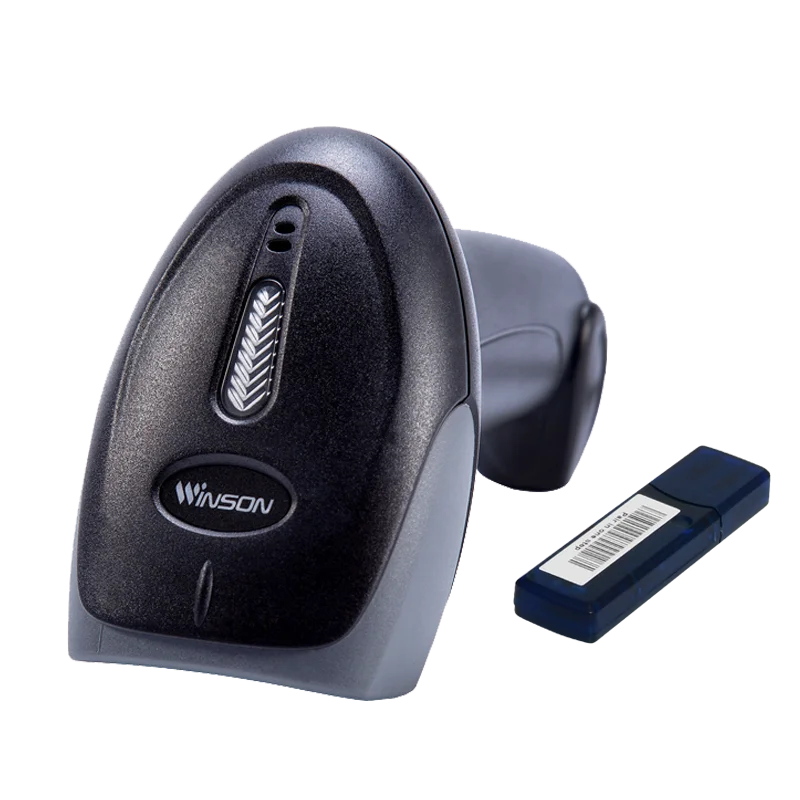

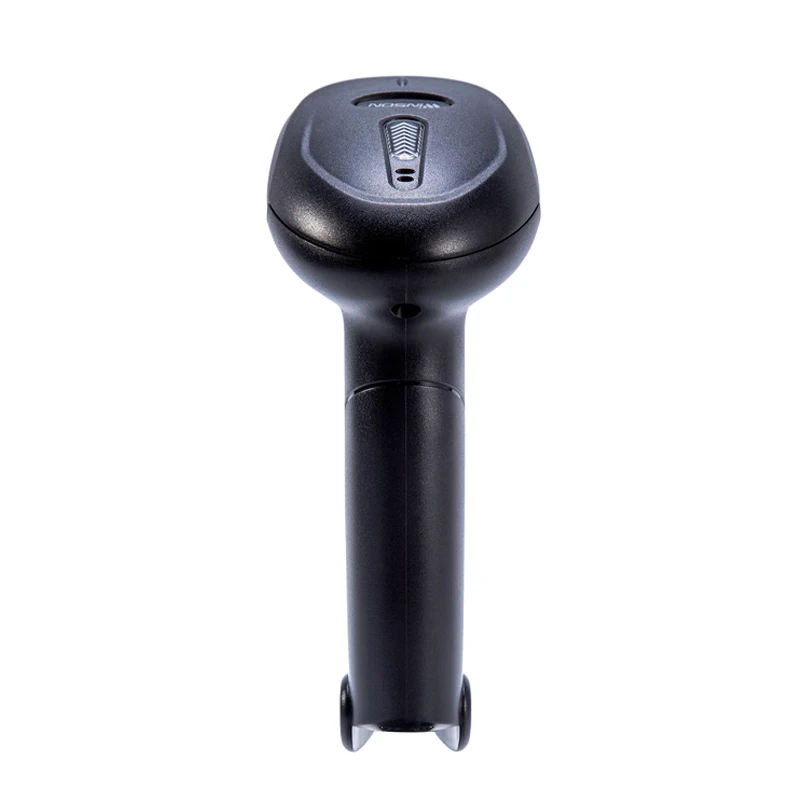

Mobile Payment QR Bar Code Reader Wired USB Portable Handheld 1D 2D QR Code Barcode Scanner for Android Tablet
Model: WNI-5213/V
Specifications
Product Description
Specification
Communication mode | Wired transmission mode/ Wireless Read-time mode/Inventory mode／Cache mode |
Communication frequency | 433-440MHz |
Transmission range | ≤100M（In empty area 100M ） |
Battery capacity | 2600mAh (Lithium battery) |
Charge Time from Empty to Full Charge | 6H |
Scans per Battery Charge | 25,000 （1 scan per second） |
Memory | 100，000@13Byte barcode |
Interface Supported | USB HID KEYBOARD/USB VCP |
Input Voltage | DC 5V±10% |
Current | Max:180mA |
Image Sensor | CMOS Array Sensor |
Sensor Resolution | 640X488 Pixels |
Light Source | White LED |
Aim Light Source | Red Bar LED |
Scanning Angle | Pitch angle:±65°;Skew angle:±60°;Tilt angle:±180° |
Field of View | 40°(H),29°(V) |
Min Resolution | 1D: 0.101mm/4mil（PCS 0.9） 2D: 0.178mm/7mil（PCS 0.9） |
Min .PCS value | 〉20%UPC/EAN 13（13mil） |
Language | Multiple Languages |
Data Edition | Support for custom data output |
Decode Capability | 1D：UPC/EAN, Code 128, Code 39,Code 93, Interleaved 2 of 5,Codabar 2D：QR ,Mirco QR,PDF417 ,MircoPDF417,Data Matrix,Aztec |
Dimensions | Scanner：97mm*67mm*165mm(L*W*H) Receiver：55mm*24mm*8mm(L*W*H) |
Weight | Scanner：160g Receiver：5g |
Indicator | Beeper, LED |
Temperature | -20°∽65°C / -4°∽149°F(operation) /-30°∽70°C /-22°∽158°F(storage) |
Humidity | 5 - 90% (operation) ) 5 - 90% (storage) |
Ambient Light: | Up to 80,000 lx |
Shock Drop Test | 1.5m drop onto concrete surface |
