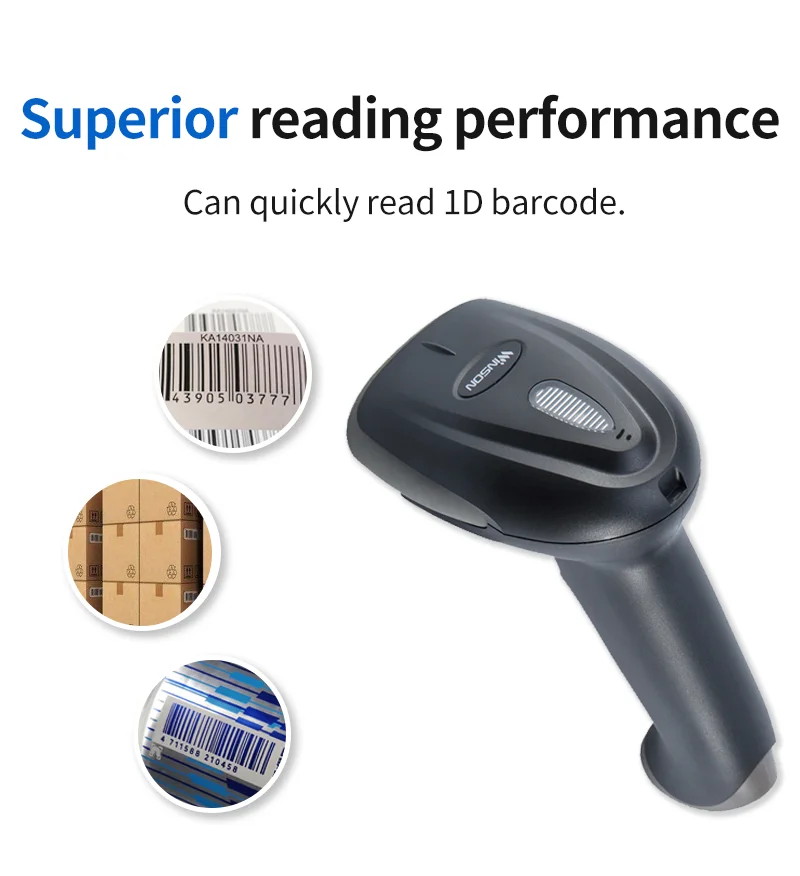

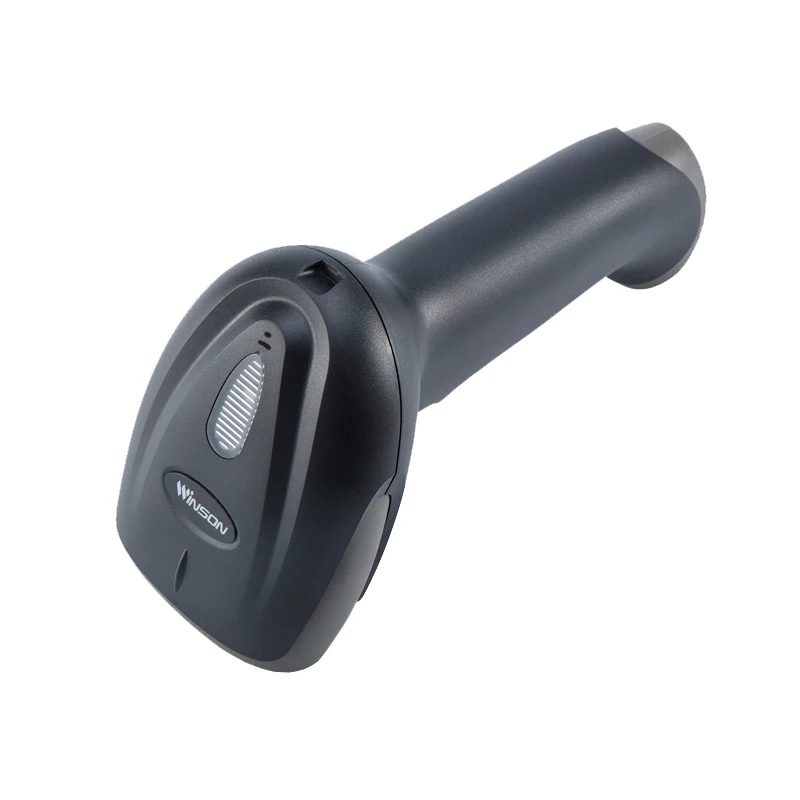

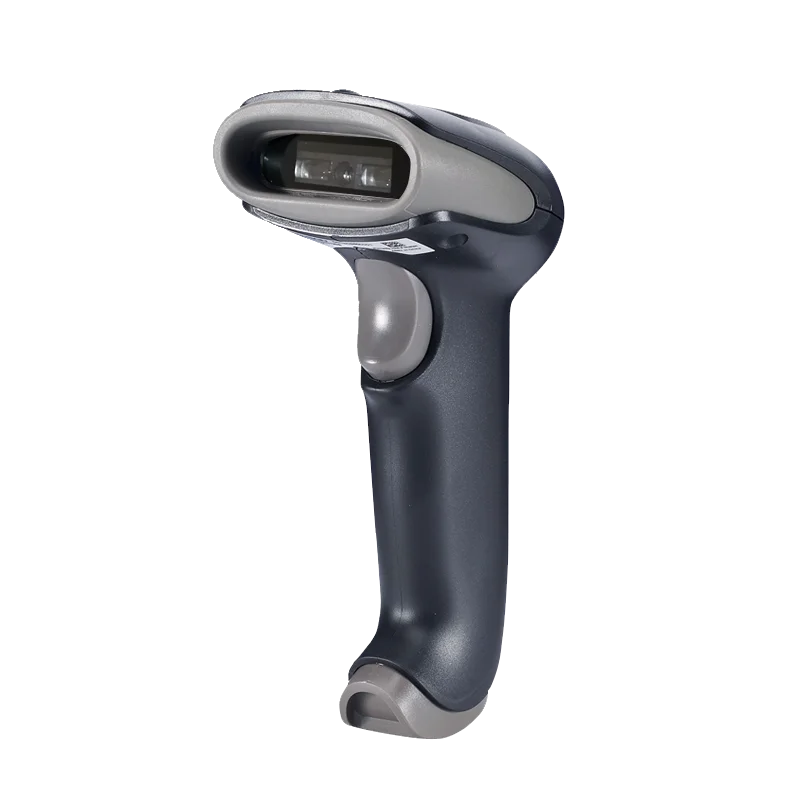

High Sense 2.4G Wireless 1D Laser Bar Code Scanner for Tablet PC IOS Mobile POS System
Model: WNC-6073B/V
Specifications
Product Description
Specification
Communication mode | Wired transmission mode/ Wireless Read-time mode/Inventory mode／Cache mode |
Communication frequency | 433MHz-440MHz |
Transmission range | ≤100M（In empty area 100M ） |
Battery capacity | 2000mAh (Lithium battery) |
Charge Time from Empty to Full Charge | 6H |
Scans per Battery Charge | 45,000 （1 scan per second） |
Memory | 100，000@13Byte barcode |
Interface Supported | USB HID KEYBOARD/USB VCP |
Input Voltage | DC 5V±10% |
Current | Max:135mA |
Image Sensor | CCD Linear Sensor |
Sensor Resolution | 2500pixels |
Light Source | 632nm Red LED |
Decoding rate: | 350 scans/second±20 scans/second |
Scanning Angle | Pitch angle:±35°;Skew angle:±75°;Tilt angle:±40° |
Min Resolution | 0.115/4.5mil（PCS 0.9） |
Min .PCS value | 〉25%UPC/EAN 13（13mil） |
Dimensions | Scanner：90mm*67mm*168mm(L*W*H) Receiver：145mm*112mm*74mm(L*W*H) |
Temperature | 0°∽50°C / 32°∽122°F(operation) /-10°∽60°C /14°∽140°F(storage) |
