USB Code Scanner 1D Barcode Scanners Image Barcode Reader Qr 1d CCD Barcode Reader Handheld Scanner

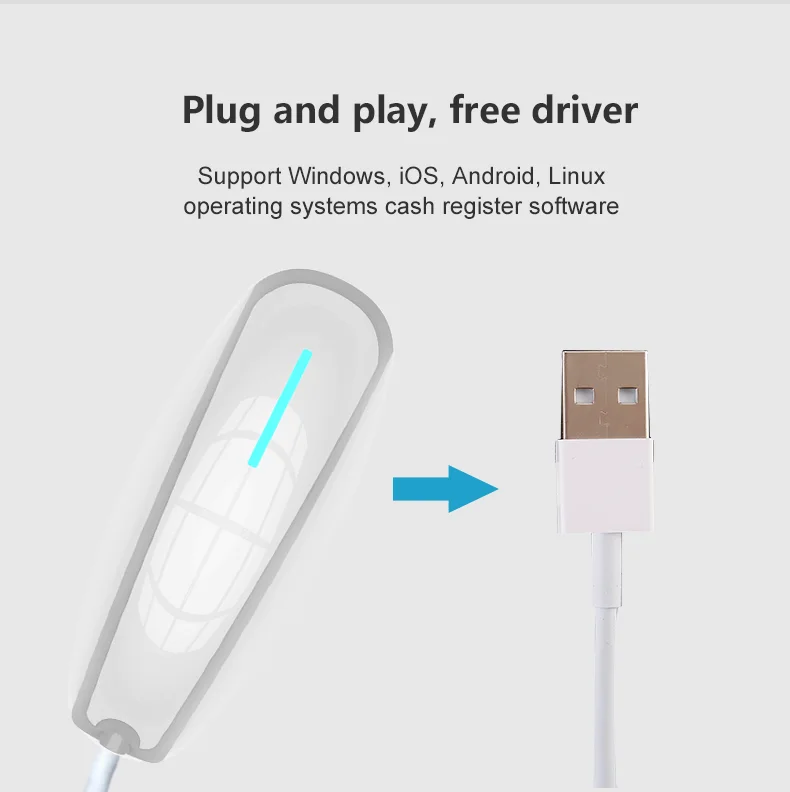

Interface Supported

RS-232/USB HID KEYBOARD/USB VCP

Input Voltage

DC 5V±10%

Current

Max:105mA

Image Sensor

CCD Linear Sensor

Sensor Resolution

2500pixels

Light Source

632nm Red LED

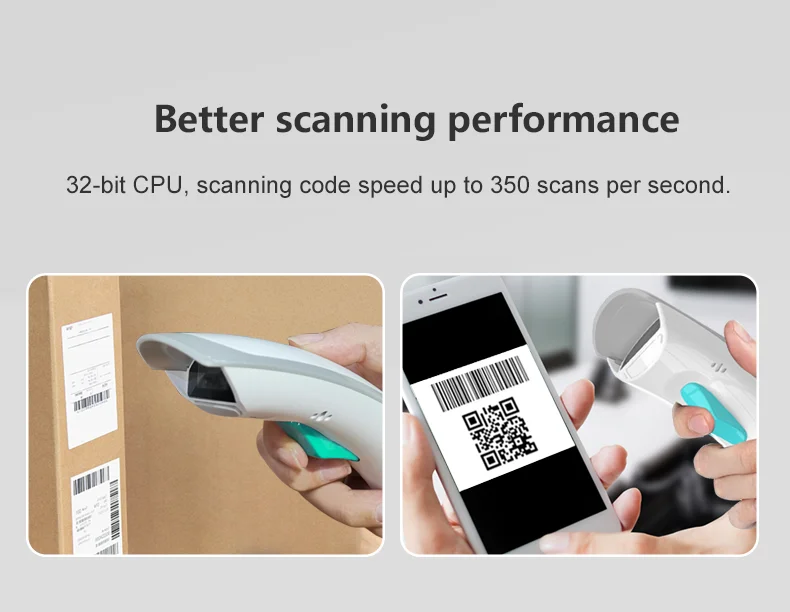

Decoding rate:

350 scans/second±50 scans/second

Scanning Angle

Pitch angle:±70°;Skew angle:±70°;Tilt angle:±45°

Min Resolution

≥0.076mm/3mil（PCS 0.9）

Min .PCS value

〉20%UPC/EAN 13（13mil）

Language

Language

Data Edition

Support for custom data output

Decode Capability

EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5,
Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, PlesseyEAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93,
ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey,
Plessey

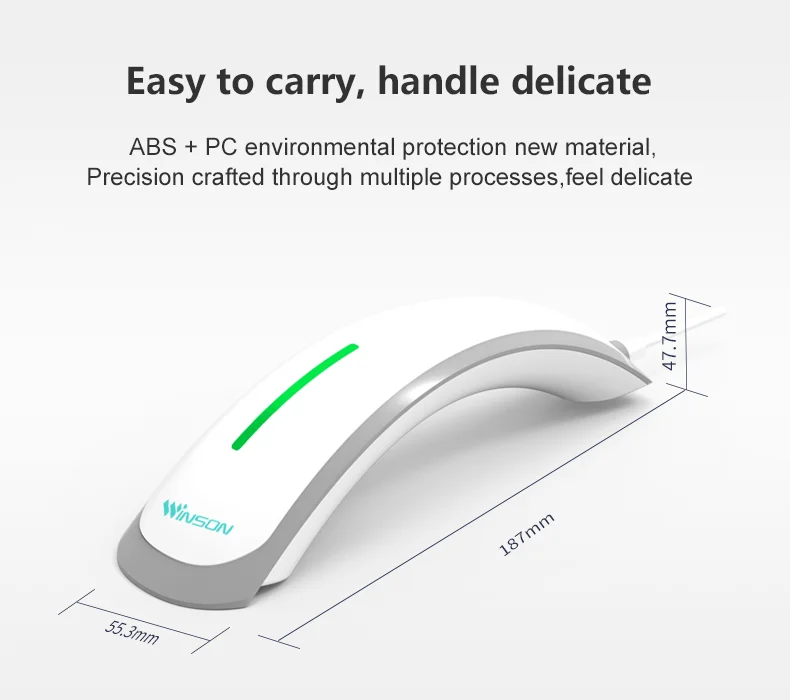

Dimensions

55.3mm*47.7mm*187mm(L*W*H)

Indicator

Beeper, LED

Temperature

0°∽50°C / 32°∽122°F(operation) /-10°∽60°C /14°∽140°F(storage)

Humidity

20 - 85% (operation) ) 20 - 90% (storage)
