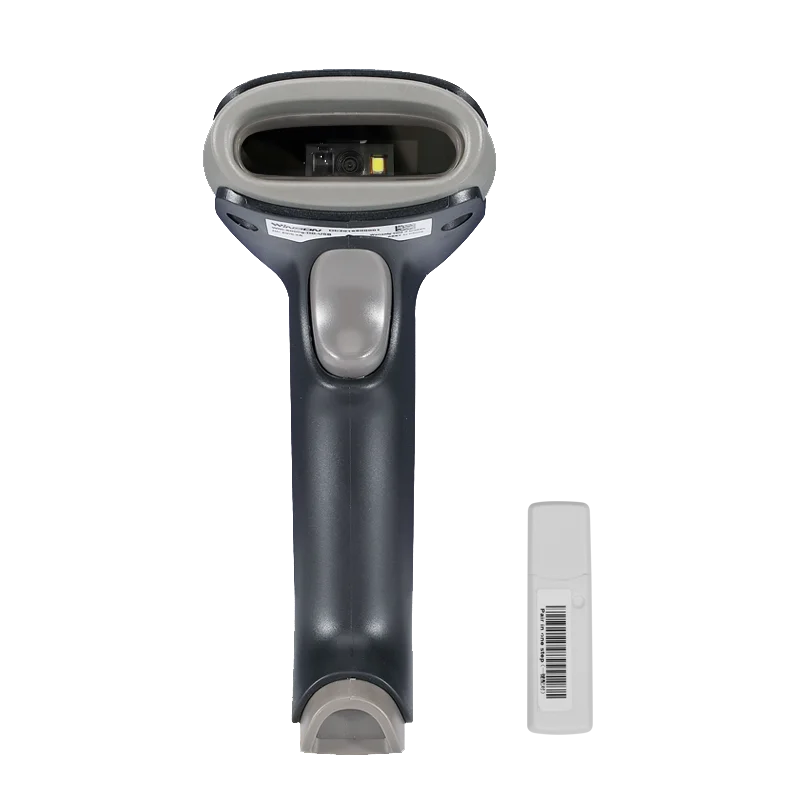

USB Code Scanner 2D Barcode Scanners Image Barcode Reader Qr 1d 2d Barcode Reader Handheld Scanner

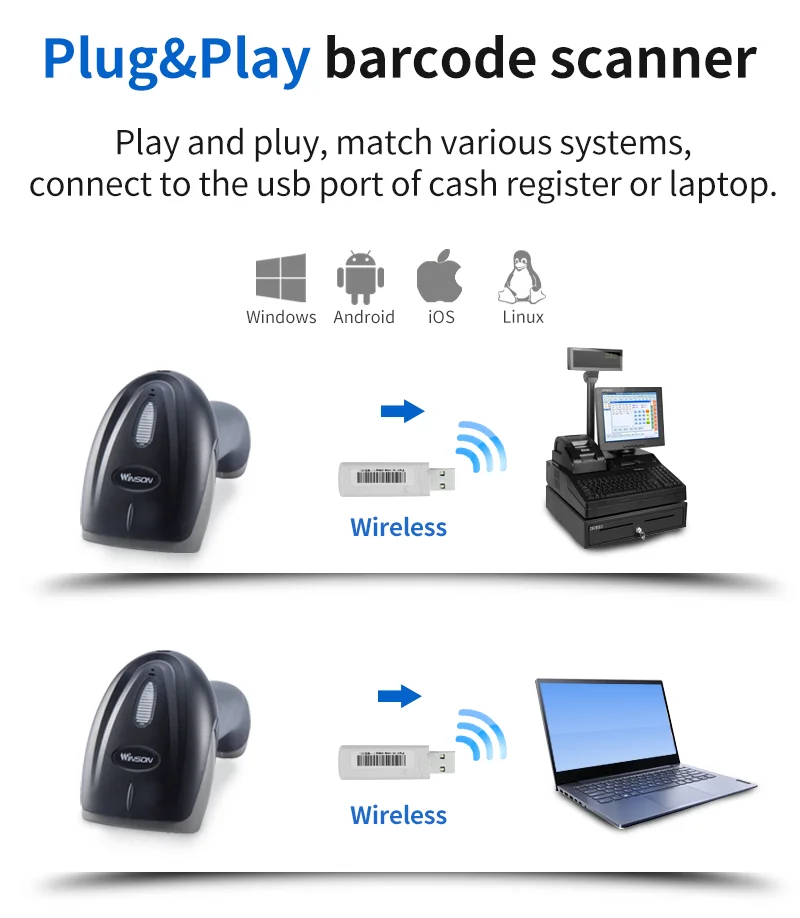

Communication mode

Wireless Read-time mode/Cache mode

Communication frequency

BT 4.2

Transmission range

≤10M(In empty area 15M)

Battery capacity

2000mAh (Lithium battery)

Charge Time from Empty to Full Charge

6H

 Scans per Battery Charge

25,000 (1 scan per second)

Memory

100,000@13Byte barcode

Interface Supported

USB HID KEYBOARD/USB VCP/RS232

Input Voltage

DC 5V±10%

Current

Max:250mA

Image Sensor

CMOS Array Sensor

Sensor Resolution

1280 x 800pixels

Light Source

White LED

Aim Light Source

Red Bar LED

Scanning Angle

Pitch angle:±70°;Skew angle:±70°;Tilt angle:±180°

Min Resolution

1D ≥0.101/4mil(PCS 0.9)
2D ≥0.178/7mil(PCS 0.9)

Min .PCS value

>20%UPC/EAN 13(13mil)

Language

Multiple Languages

Data Edition

Support for custom data output

Decode Capability

1D:UPC-A/UPC-E;EAN-8/EAN-13;Code128;Code39;Code93;Code32;Code11;Codabar;Plessey;MSI;Interleaved 2 of 5;IATA 2 of 5;Matrix 2 of
5;Straight 2 of 5;Pharmacode;RSS-14;RSS-14 Expanded;RSS-14 Limited;Composite Code-A;Composite Code-B;Composite Code-C;
2D:PDF417;Micro PDF417;Data Matrix;QRcode;Micro QR;Aztec;MaxiCode

Dimensions

Scanner:90mm*67mm*168mm(L*W*H)
Receiver:145mm*112mm*74mm(L*W*H)

Weight

Scanner:160g
Receiver:185g

Indicator

Beeper, LED

Temperature

0° to 50°C / 32° to 122°F(operation) /-10° to 60°C /14° to 140°F(storage)

Humidity

20 - 85% (operation) ) 20 - 90% (storage)

Shock Drop Test

1.5m drop onto concrete surface
