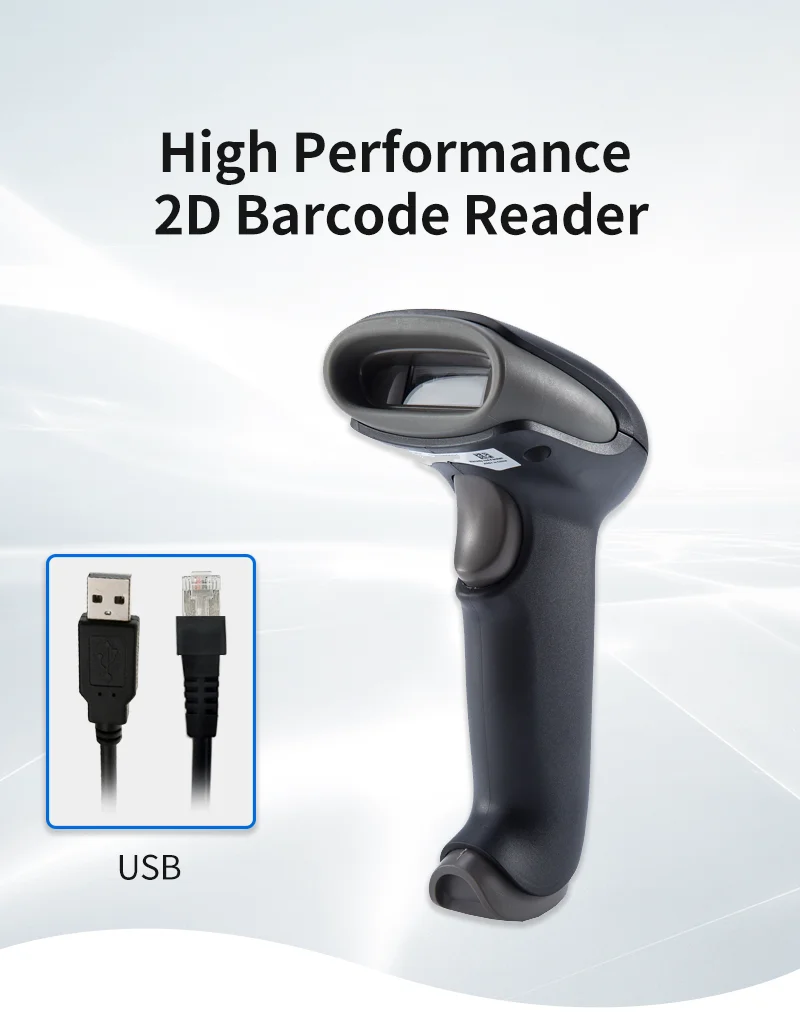

1D/2D Wire/Wireless Barcode Scanner Portable Scanning Device Wearable Bar Code Reader Mini Finger QR Barcode Scanner for Store

Interface Supported

USB HID KEYBOARD/USB VCP or RS-232

Input Voltage

DC 5V±10%

Current

136mA

Image Sensor

CMOS Array Sensor

Sensor Resolution

640 X 480 Pixels

Light Source

White LED

Aim Light Source

Red LED

Scanning Angle

Pitch angle:±65°;Skew angle:±65°;Tilt angle:±180°

Field of View

28°(H),20°(V)

Min Resolution

1D≥4mil
2D≥8mil

Min .PCS value

〉20% UPC/EAN 13（13mil）

Language

Multiple Languages

Data Edition

Support for custom data output

Decode Capability

1D：Codabar, Code 11, Code 39, Code 93, Code 128/EAN128, EAN.UCC Composite,
Interleaved 2 of 5,MSI Code, Planet, Plessey Code, Postnet, RSS, Standard 2 of 5,
Telepen, UPC/EAN, etc.
2D：
PDF417, QR code, Matrix 2 of 5, MicroPDF417, Australian Post, Canada Post, Japan
Post, MaxiCode, Codablock, Aztec, Dutch Post, TLC 39,DataMatrix, etc

Dimensions

90mm*67mm*168mm(L*W*H)

Weight

120g

Indicator

Beeper, LED
