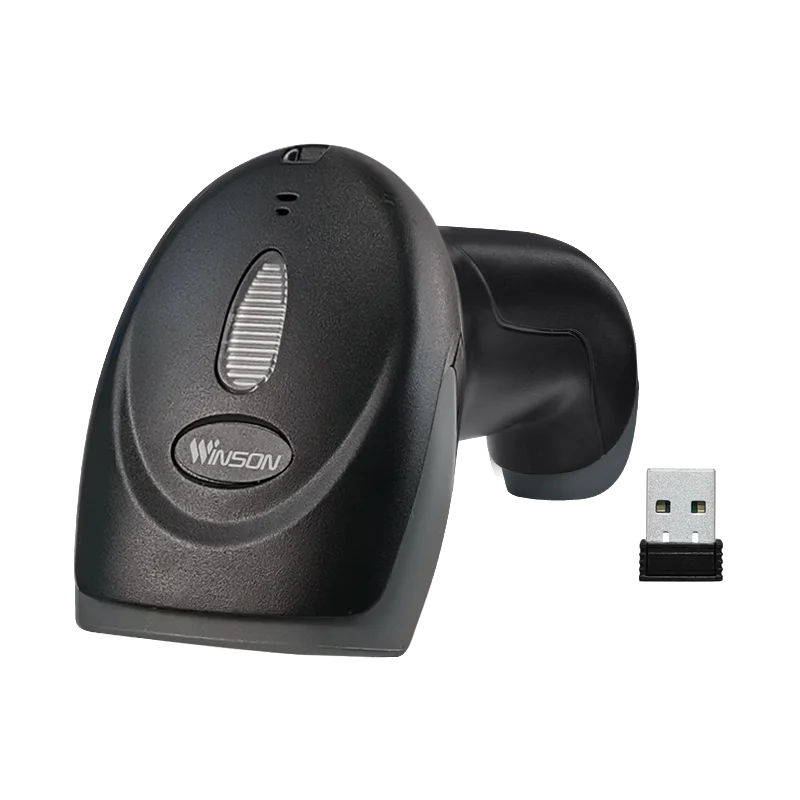

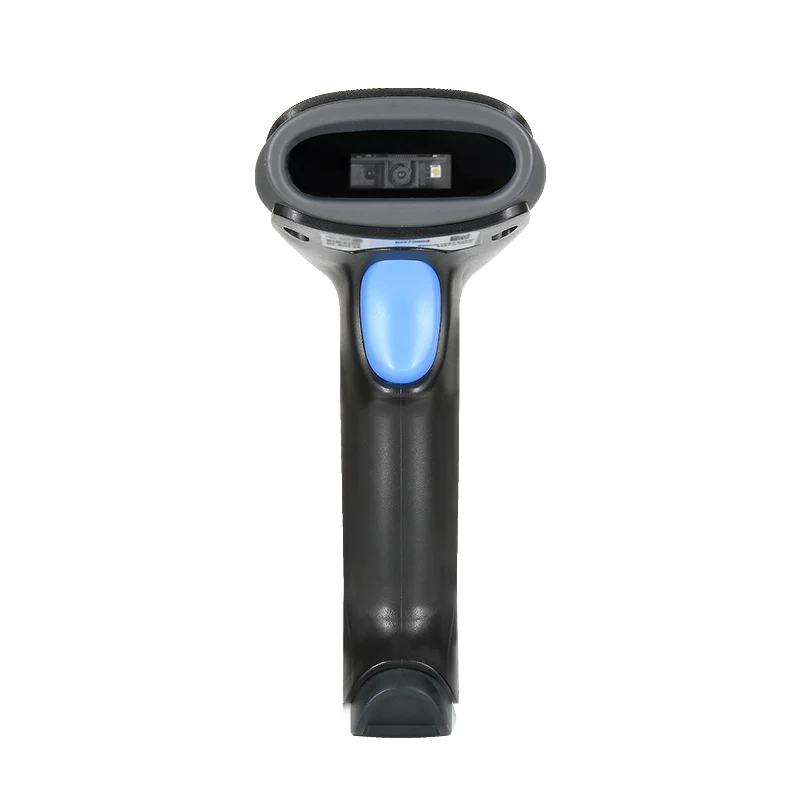

Bulk OEM QR Code 1D 2D Device Wireless Handheld Barcode Scanner for Payment System
Model: WNI-S212
Specifications
Product Description
Specification
Communication mode | Wired transmission mode/ Wireless Read-time mode/Inventory mode／Cache mode |
Communication frequency | 2.400GHz - 2.483GHz ISM band |
Transmission range | 80m（In empty area ） |
Battery capacity | 2600mAh (Lithium battery) |
Charge Time from Empty to Full Charge | 6H |
Continuous working hours | 12H |
Memory | The flash is 16M and stores 2 million characters |
Interface Supported | RS232/USB HID KEYBOARD/USB VCP |
Input Voltage | DC 5V±5% |
Current | Max:180mA |
Image Sensor | CMOS Array Sensor |
Sensor Resolution | 640 X 480 Pixels |
Light Source | white LED |
Aiming light source | RED LED |
Decoding speed | 60FPS |
Scanning Angle | Pitch angle:±60°;Skew angle:±60°;Tilt angle:±360° |
Field of View | 40H),29V) |
Min Resolution | 4mil |
Min .PCS value | ≥30% UPC/EAN 13（13mil） |
Language | Multiple Languages |
Data Edition | Support for custom data output |
Decode Capability | 1D：UPC-A , UPC-E, EAN-8, EAN-13,EAN-14, EAN-128,GS1-128, UCC128, ISBN/ISSN,CODE 11, CODE 32, CODE 39, CODE 39 Full ASCII, CODE93, CODE 128,UK/Plessey, Interleaved 2 of 5,Pharmacode,Codabar 2D ：QR code, PDF417,Data matrix,Maxi code,Aztec |
Dimensions | scanner :95mm*65mm*160mm(L*W*H) Lampstand:14mm x7mm x 19mm(L*W*H) |
Weight | scanner :160g Lampstand:1g |
Indicator | Beeper, LED |
Indicator | Beeper, LED |
