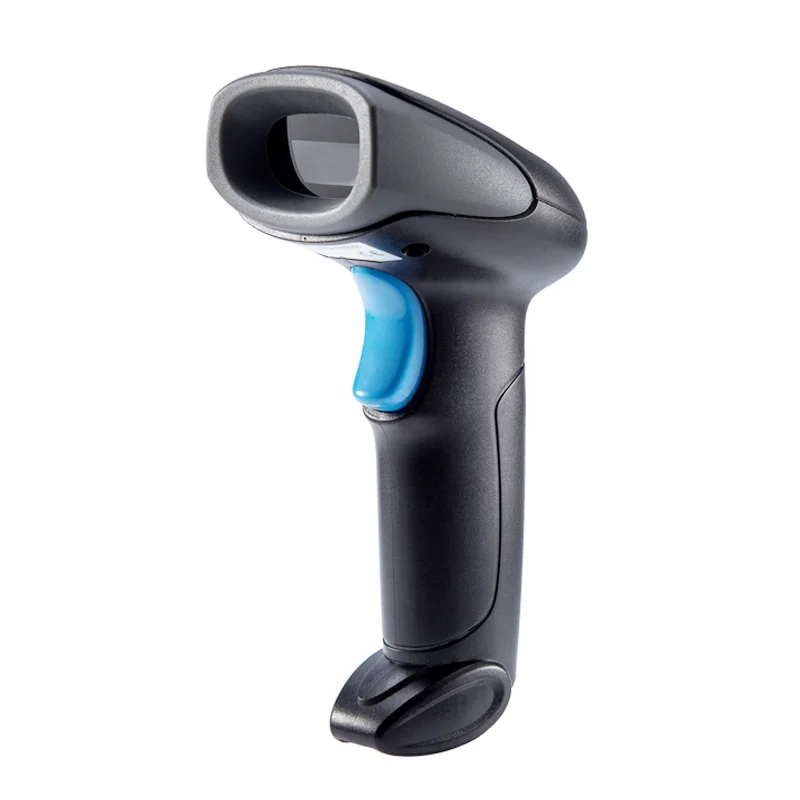

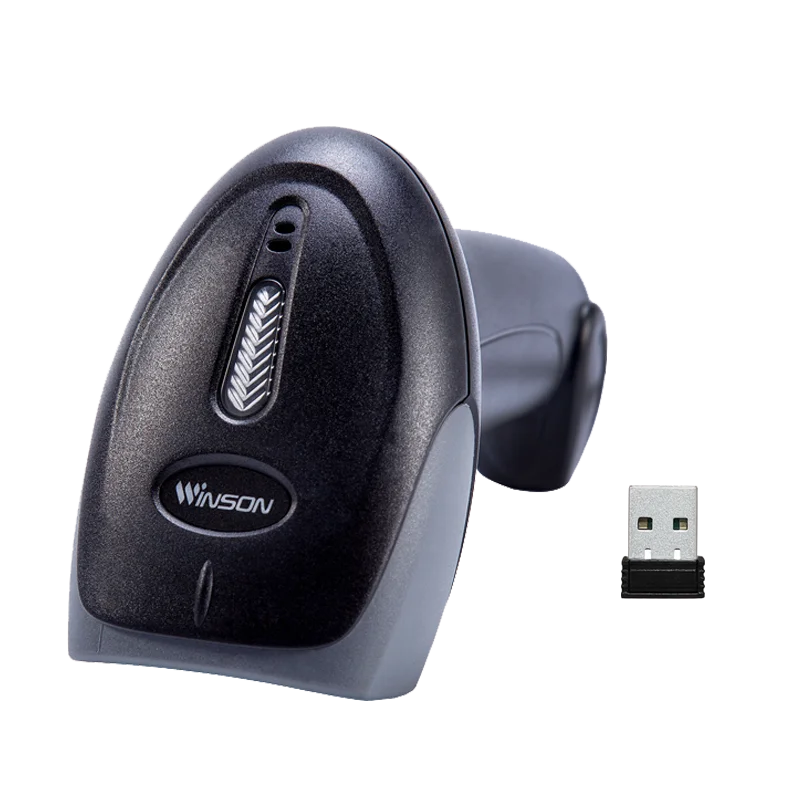

Handheld Barcode Scanner D QR Barcode Reader Brand Series 1D 2 Usb A4 Phone Spare Parts Repair Stock Scanner Machine
Model: WNC-5074PZ
Specifications
Product Description
Specification
Communication mode | Wired transmission mode/ Wireless Read-time mode/Inventory mode／Cache mode |
Communication frequency | 2.400GHz - 2.483GHz ISM band&Bluetooth 4.2 |
Transmission range | ZM-2.4G: 50~80m（In empty area ） Bluetooth 4.2: 15m（In empty area ） |
Battery capacity | 2000mAh (Lithium battery) |
Charge Time from Empty to Full Charge | 4H |
Continuous working hours | 12H |
Memory | The flash is 16M and stores 2 million characters |
Interface Supported | USB HID KEYBOARD/USB VCP |
Input Voltage | DC 5V±5% |
Current | Max:160mA |
Image Sensor | Linear CCD sensor |
Sensor Resolution | 2500 Pixels |
Light Source | 632 nm red LED |
Aiming light source | 633 nm red LED |
Decoding speed | 350±50 (times/second) |
Scanning Angle | Pitch angle:±30°;Skew angle:±75°;Tilt angle:±45° |
Field of View | 30H),27V) |
Min Resolution | 5mil |
Min .PCS value | ≥20% UPC/EAN 13（13mil） |
Language | Multiple Languages |
Data Edition | Support for custom data output |
Decode Capability | EAN13，EAN8，UPC-A，UPC-E， CODABAR，CODE 39，CODE 93， INTERLEAVED 2 OF 5，STANDARD 2 of 5， MATRIX 2 of 5，CODE 128，CODE 11，GS1 Databar |
