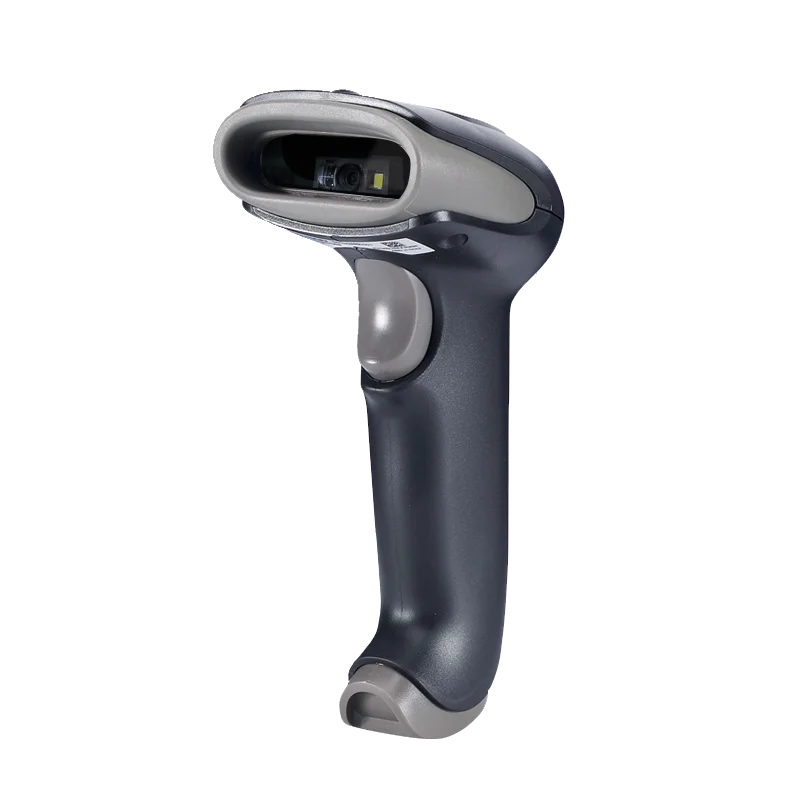

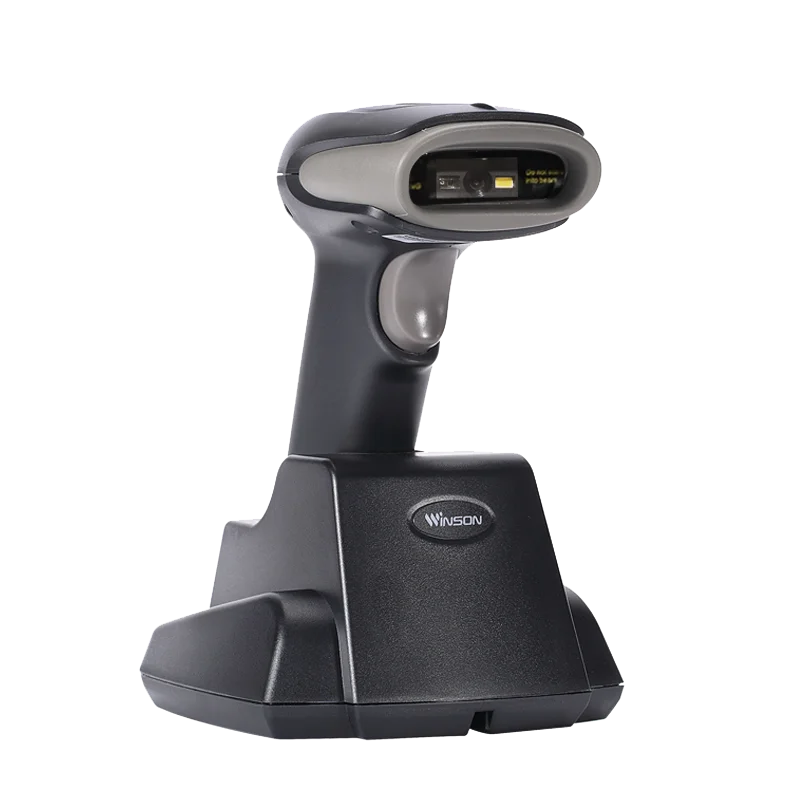

1D 2D QR Barcode Scanner Portable Scanner Wireless Wired Bar Code Reader Cordless Handheld Barcode Scanner
Model: WNI-6223/V
Specifications
Product Description
Specification
Communication mode | Wired transmission mode/ Wireless Read-time mode/Inventory mode/Cache mode |
Communication frequency | 433MHz to 440MHz |
Transmission range | ≤100M(In empty area 100M ) |
Battery capacity | 2000mAh (Lithium battery) |
Charge Time from Empty to Full Charge | 6H |
Scans per Battery Charge | 25,000 (1 scan per second) |
Memory | 100,000@13Byte barcode |
Interface Supported | USB HID KEYBOARD/USB VCP/RS232 |
Input Voltage | DC 5V±10% |
Current | Max:250mA |
Image Sensor | CMOS Array Sensor |
Sensor Resolution | 1280 x 800pixels |
Light Source | White LED |
Aim Light Source | Red Bar LED |
Scanning Angle | Pitch angle:±70°;Skew angle:±70°;Tilt angle:±180° |
Min Resolution | 1D ≥0.101/4mil(PCS 0.9) 2D ≥0.178/7mil(PCS 0.9) |
Min .PCS value | >20%UPC/EAN 13(13mil) |
Language | Multiple Languages |
Data Edition | Support for custom data output |
Dimensions | Scanner:90mm*67mm*168mm(L*W*H) Receiver:145mm*112mm*74mm(L*W*H) |
Weight | Scanner:160g Receiver:185g |
