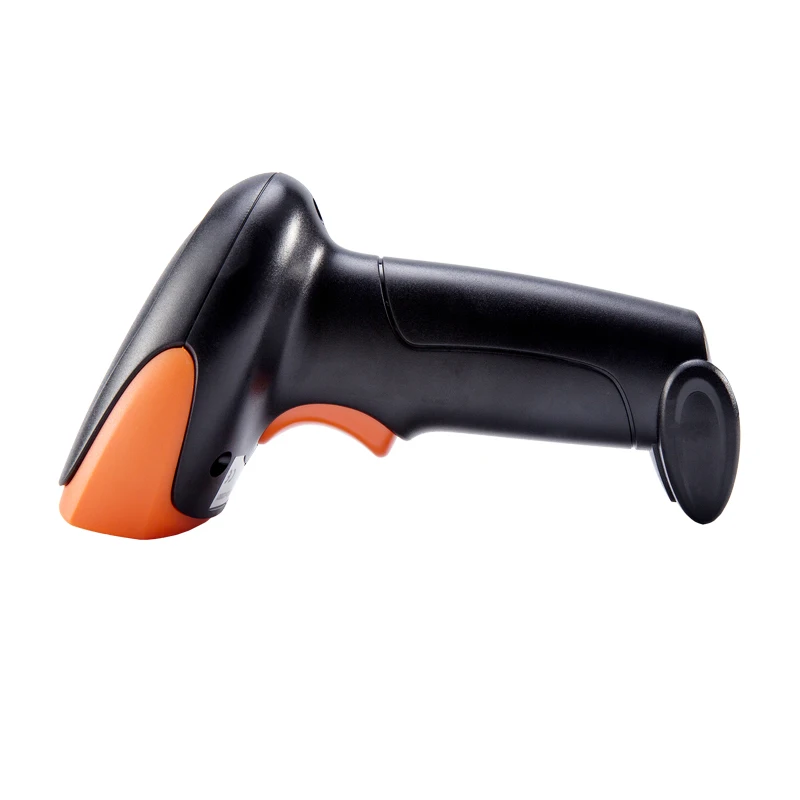

Factory Price Wireless CCD Barcode Scanner for POS Machine

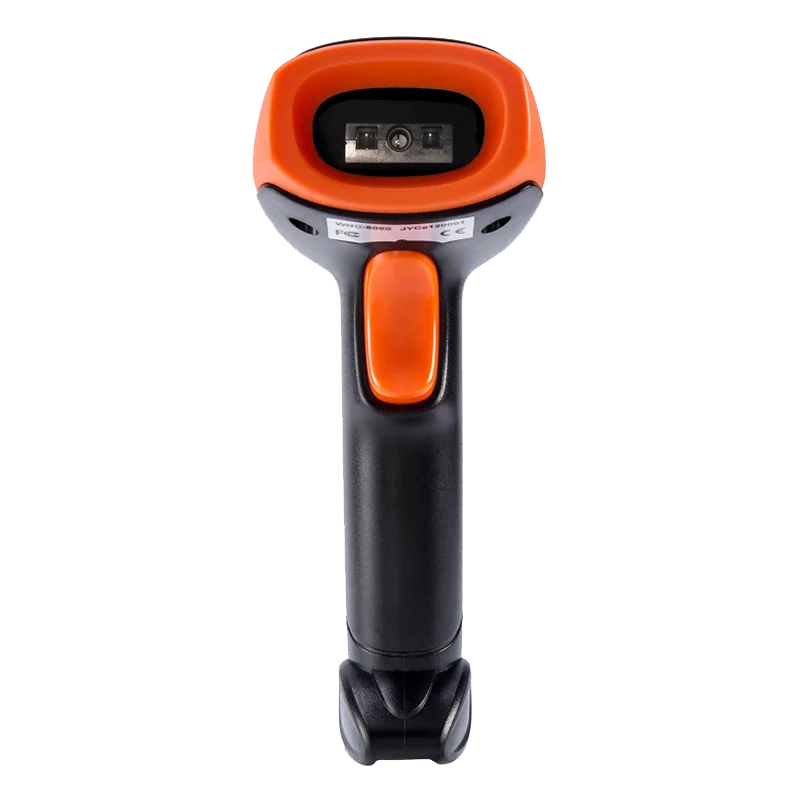

Factory Price Wireless CCD Barcode Scanner for POS Machine - Media 2

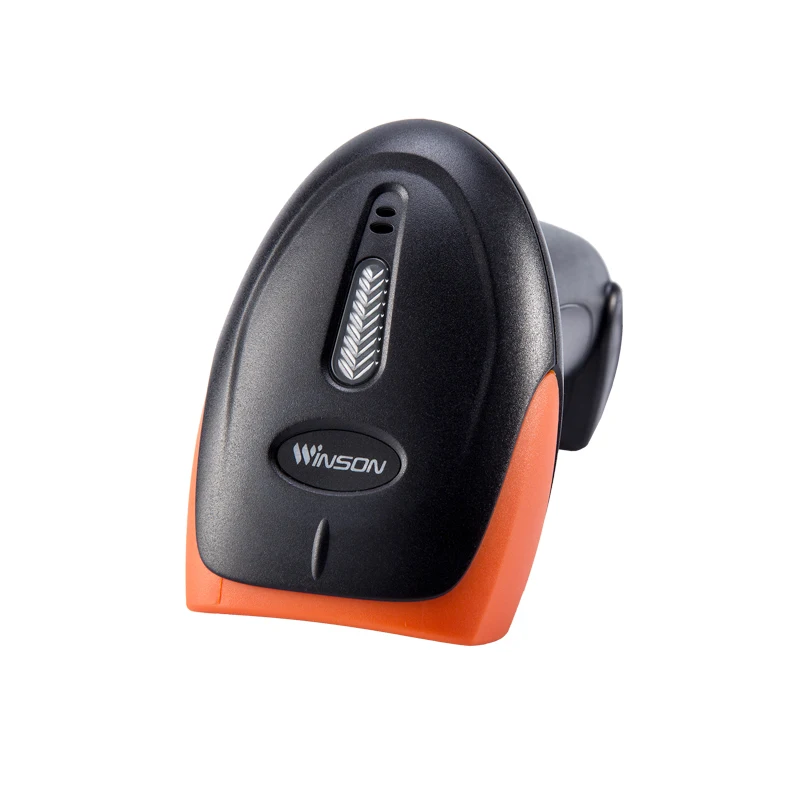

Factory Price Wireless CCD Barcode Scanner for POS Machine - Media 3
Factory Price Wireless CCD Barcode Scanner for POS Machine - Media 4
Factory Price Wireless CCD Barcode Scanner for POS Machine - Media 5
Factory Price Wireless CCD Barcode Scanner for POS Machine - Media 6
Factory Price Wireless CCD Barcode Scanner for POS Machine - Media 7

Factory Price Wireless CCD Barcode Scanner for POS Machine

Model: WNC-5082/V

Specifications

Factory Price Wireless CCD Barcode Scanner for POS Machine







2.4G wireless transmission

The transmission range up to 30 meters (In empty area).





Mass storage
100,000 @ 13 Byte barcode

Factory Price Wireless CCD Barcode Scanner for POS Machine
Factory Price Wireless CCD Barcode Scanner for POS MachineFactory Price Wireless CCD Barcode Scanner for POS Machine
Factory Price Wireless CCD Barcode Scanner for POS Machine

1500 mAh lithium battery

Supports 14 hours continuous normal manual trigger working,compatible with wire and wireless working mode.






Support customized functions

Add prefix,delete the last four,interlaced upload.





Technical parameters

Wireless specifications

Communications

2.4GHz

Communication frequency

2.402-2.480GHz

Data rate

1Mbps

Memory

500@13Byte barcode

Battery capacity

1500mAh (Lithium battery)

Charging time

4.5H

The life time of the full charge

4h(continuous reading situation)

9.5h(Manual reading situation)

More than 15 days(Stand-by time

Communication mode

Read-time mode/Inventory mode

Electrical Characteristics

Interface

USB HID KEYBOARD(Wireless receiver)

Voltage requirement

DC 5V±10%

Current consumption

Max:120mA

Min:50mA

Optical Characteristics

Photo sensor

CCD linear sensor

Sensor Resolution

2500pix

light source

LED 632nm red led

Performance Characteristics

Scan Rate:

350±50 (scans/second)

Decode angle

Pitch angle:±30°

Skew angle:±70°

Tilt angle:±45°

curvature

R15 mm (EAN8),R20 mm (EAN13)(resolution=0.26mm,PCS=0.9)

Min resolution

0.127mm/5mil(PCS 0.9)

Min .PCS value

>25%UPC/EAN 13(13mil)

Language

multiple languages

Identification

EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST

Physical Characteristics

Dimensions

Scanner:97 mm x 67 mm x165mm (L*W*H)

Receiver:83mm*18mm*13mm(L*W*H)

Weight

Scanner:162g

received:16g

Environmental Characteristics

Temp

-20°-65°C / -4°-149°F((operation) )   -30°- 70°C /-22°-158°F(storage)

Humidity

5 - 90% (operation) ) 5 - 90% (storage)

Ambient Light:

fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max

Shock drop test

1.3m drop onto concrete surface

Regulatory

Electrical Safety

UL 60950,EN/IEC 60950

EMI/RFI

FCC Part 15 Class B,EN 55024/CISPR 22

Environmental

RoHS




























































































































































































Winsdon WNC-5082/V OEM CCD Wireless Code Scanner Gun Supermarket And Logistics:

Wireless transmission distance;
Large storage capacity;
Excellent scanning performance;
Warehouse management applications;
Using 2.4g/ wireless communication technology.





1.Superior decoding performance
Winson WNC-5082 barcode scanner can reach 350+50 scans per second, fast and accurate can help to improve your working efficiency.
2.Perfect process design and ultimate experience
Winson WNC-5082 uses imported ABS material, high quality rubber is a good buffer against impact. Nice design makes it different and popular. It applies to cashier for mobile payment and Logistics & Express.
3.Long life span
Shockproof and Anti-broken.Winson WNC-5082 barcode scanner, after 1.2 drop onto concrete surface floor, still works well.
