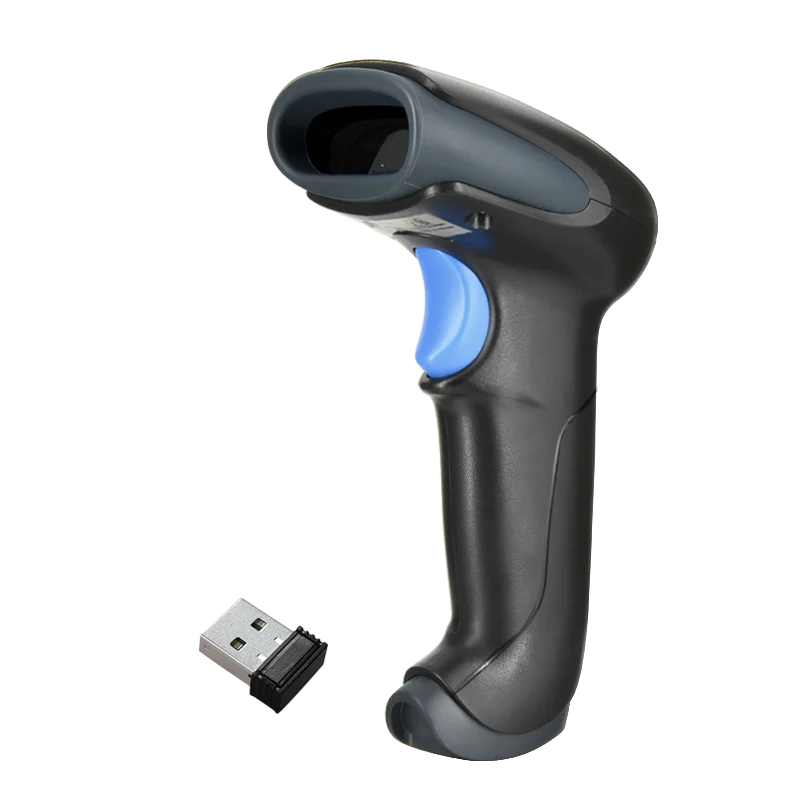

Wireless Portable 2.4G WIFI BT 1D 2D QR Bar Code Cordless Warehouse Handheld Barcode Scanner Reader for Retail

Communication mode

Wireless Read-time mode/Inventory mode／Cache mode

Communication frequency

2.400GHz - 2.483GHz ISM band

Transmission range

80m（In empty area ）

Battery capacity

2600mAh (Lithium battery)

Charge Time from Empty to Full Charge

6H

Continuous working hours

11H

Memory

The flash is 16M and stores 2 million characters

Interface Supported

RS232/USB HID KEYBOARD/USB VCP

Input Voltage

DC 5V±5%

Current

Max:180mA

Image Sensor

CMOS Array Sensor

Sensor Resolution

640 X 480 Pixels

Light Source

white LED

Aiming light source

RED LED

Decoding speed

60FPS

Scanning Angle

Pitch angle:±60°;Skew angle:±60°;Tilt angle:±360°

Field of View

40H),29V)

Min Resolution

4mil

Min .PCS value

≥30% UPC/EAN 13（13mil）

Language

Multiple Languages

Data Edition

Support for custom data output

Decode Capability

1D：UPC-A , UPC-E, EAN-8, EAN-13,EAN-14, EAN-128,GS1-128, UCC128, ISBN/ISSN,CODE 11, CODE 32, CODE 39, CODE 39 Full ASCII, CODE93,
CODE 128,UK/Plessey, Interleaved 2 of 5,Pharmacode,Codabar
2D ：QR code, PDF417,Data matrix,Maxi code,Aztec

Dimensions

scanner :95mm*62mm*160mm(L*W*H)

Weight

scanner :160g
Lampstand:120g

Indicator

Beeper, LED

Temperature

-20°∽50°C (operation)
-40°∽70°C (storage)

Humidity

Relative humidity: 5% to 95% (no condensation)

Shock Drop Test

1.5m drop onto concrete surface
