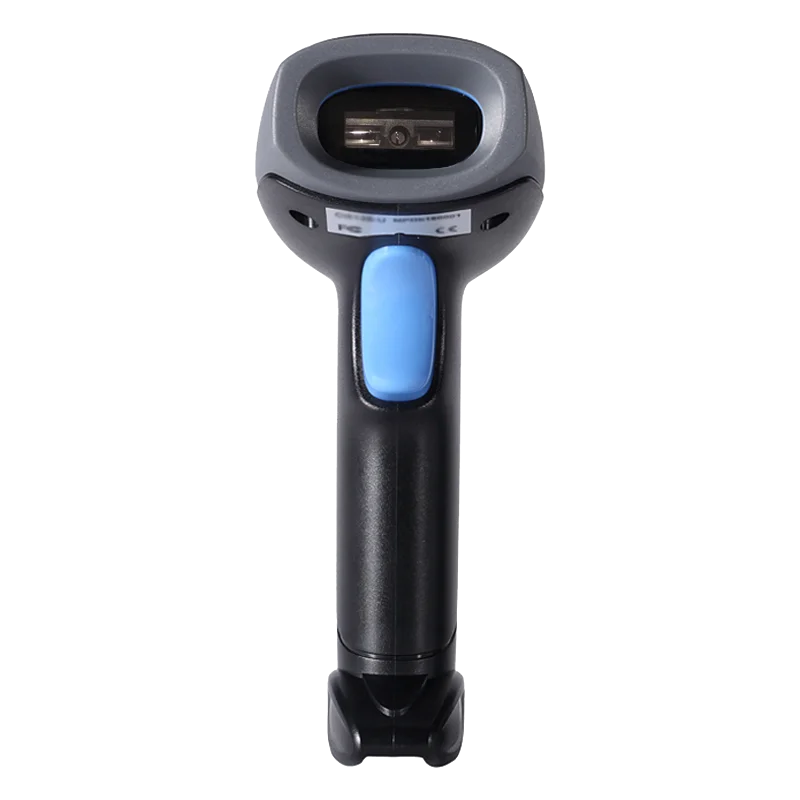

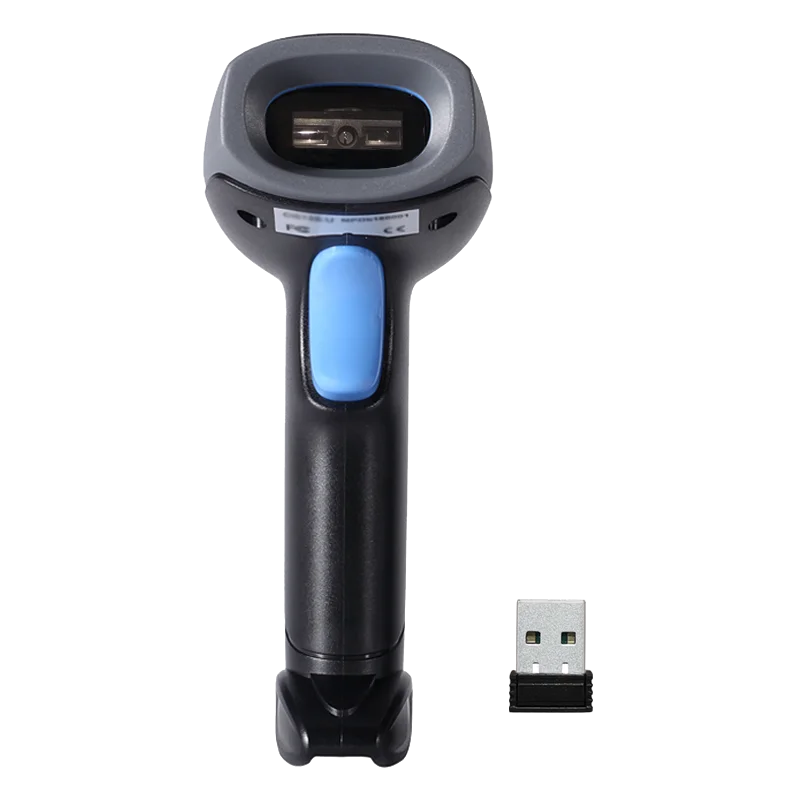

Wholesale Price Wireless USB Barcode Scan Machine 1D CCD Laser Barcode Reader
Model: WNC-5072V
Specifications
Wholesale Price Wireless USB Barcode Scan Machine 1D CCD Laser Barcode Reader
2 colors available: (1)black+blue (2)black+orange
1.Wireless transmission distance.
2.Large storage capacity.
3.Excellent scanning performance.
4.Warehouse management applications.
5.Using 2.4g/ wireless communication technology.
6.Support multiple keyboard language.
7.Support Custom Function.
8.Support self-upgrade.
|
2.4G wireless transmission The transmission range up to 30 meters (In empty area).
Mass storage |
 |
 |
|
 |
|
|
1500 mAh lithium battery Supports 12 hours continuous normal manual trigger working,compatible with wire and wireless working mode.
|
Compatibility Compatible with the current system used by the general public, such as Windows, Android, Mac OS, IOS, Linux, and so on. |
|
Technical Parameters |
|
|
Wireless specifications |
|
|
Communications |
2.4GHz |
|
Communication frequency |
2.402-2.480GHz Adaptive frequency hopping |
|
Transmission range |
≤20M(In empty area 20M ) |
|
Data rate |
1Mbps |
|
Memory |
100000@13Byte barcode |
|
Battery capacity |
1500mAh (Lithium battery) |
|
Charging time |
4.5H |
|
The life time of the full charge |
4h(continuous reading situation) 9.5h(Manual reading situation) More than 15 days(Stand-by time |
|
Communication mode |
Read-time mode/Inventory mode |
|
Electrical Characteristics |
|
|
Interface |
USB HID KEYBOARD(Wireless receiver) |
|
Voltage requirement |
DC 5V±10% |
|
Current consumption |
Max:120mA
Min:50mA |
|
Optical Characteristics |
|
|
Photo sensor |
CCD linear sensor |
|
Light source |
632nm red led |
|
Performance Characteristics |
|
|
Scan Rate |
350±50 (scans/second) |
|
Decode angle |
Pitch angle:±30° Skew angle:±70° Tilt angle:±45° |
|
Curvature |
R≥15 mm (EAN8),R≥20 mm (EAN13)(resolution=0.26mm,PCS=0.9) |
|
Min resolution |
0.127mm/5mil(PCS 0.9) |
|
Min .PCS value |
>25%UPC/EAN 13(13mil) |
|
Language |
Multiple languages |
|
Identification |
EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93, INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST |
|
Physical Characteristics |
|
|
Dimensions |
Scanner:97 mm x 67 mm x165mm (L*W*H) Received : 67mm x 25mm x 11mm(L*W*H) |
|
Weight |
Scanner:162g Received:16g |
|
Environmental Characteristics |
|
|
Temp |
-20°-65°C / -4°-149°F(operation) -30°- 70°C /-22°- 158°F(storage) |
|
Humidity |
5 - 90% (operation) ) 5 - 90% (storage) |
|
Ambient Light |
Fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max |
|
Shock drop test |
1.3m drop onto concrete surface |
|
Regulatory |
|
|
Electrical Safety |
UL 60950,EN/IEC 60950 |
|
EMI/RFI |
FCC Part 15 Class B,EN 55024/CISPR 22 |
|
Environmental |
RoHS |
