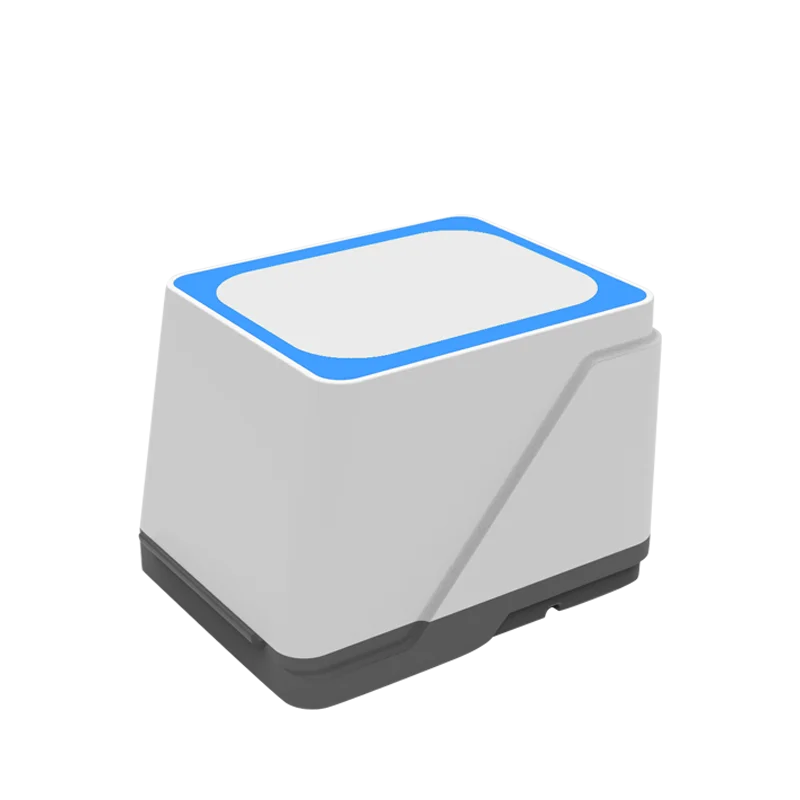

Wired 2D Omnidirectional Desktop Barcode Reader QR Code Scanning Platform Bar Code Scanner for Supermarket Price

Interface Supported

USB HID KEYBOARD/USB VCP/RS-232

Input Voltage

DC 5V±10%

Current

Max:190mA

Sensor Resolution

640X480 Pixels

Light Source

White LED

Scanning Angle

Pitch angle:±45°;Skew angle:±50°;Tilt angle:±180°

Field of View

53°(H),40°(V)

Min .PCS value

>30% UPC/EAN 13(13mil)

Language

Multiple Languages

Decode Capability

1D: Code128,GS1-128,AIM-128,EAN-8,EAN-13,ISSN,ISBN,UPC-A,UPC-E,Interleaved 2 of 5(ITF),Matrix 2 of 5,Industrial 2 of 5,Standard 2
of 5,Code93,Code11,Code39,Codabar,GS1-Databar(RSS),Plessey,MSI-Plessey
2D:QR Code,Data Matrix,PDF417

Dimensions

110mm*84mm*75mm(L*W*H)

Weight

200g

Indicator

Beeper, LED

Temperature

0° to 50°C / 32° to 122°F(operation) /-10° to 60°C /14° to 140°F(storage)

Humidity

20 - 85% (operation) ) 20 - 90% (storage)

Shock Drop Test

1.2m drop onto concrete surface
