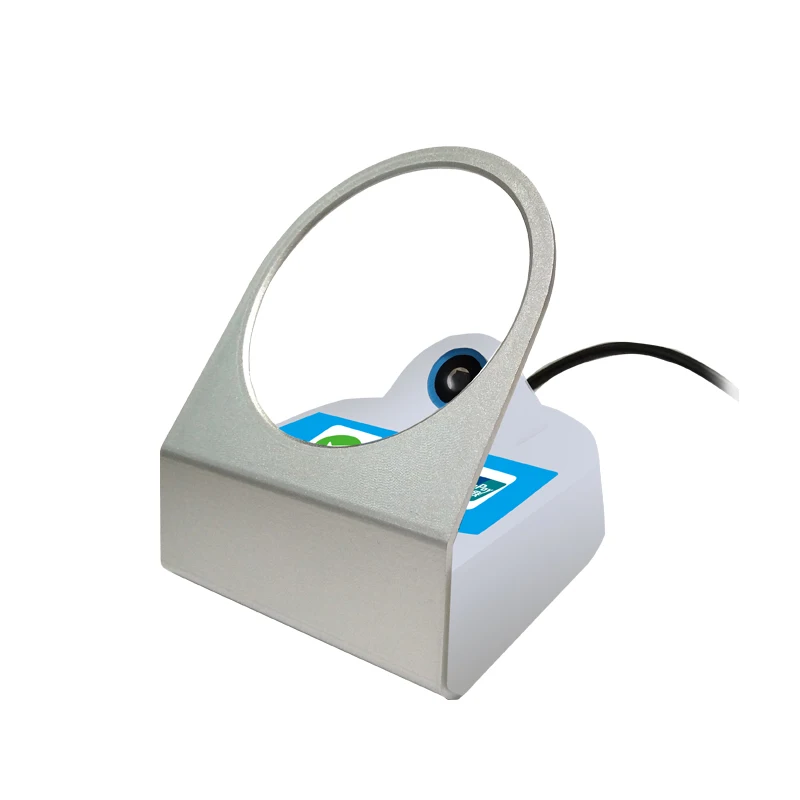

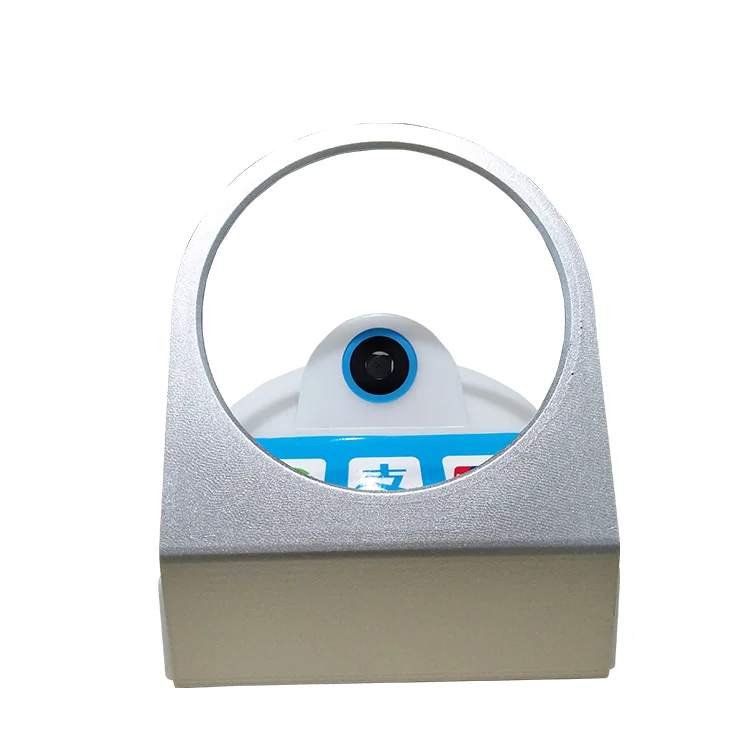

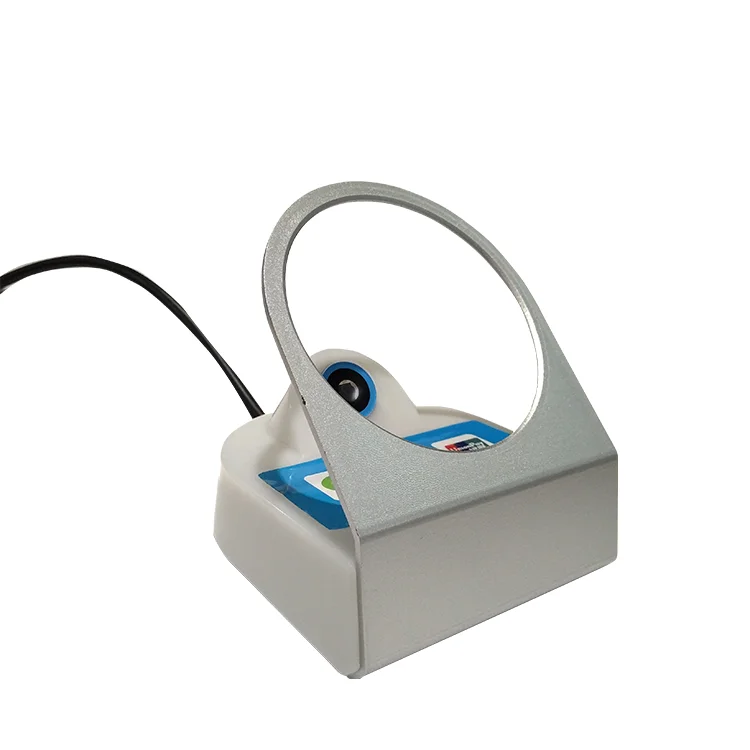

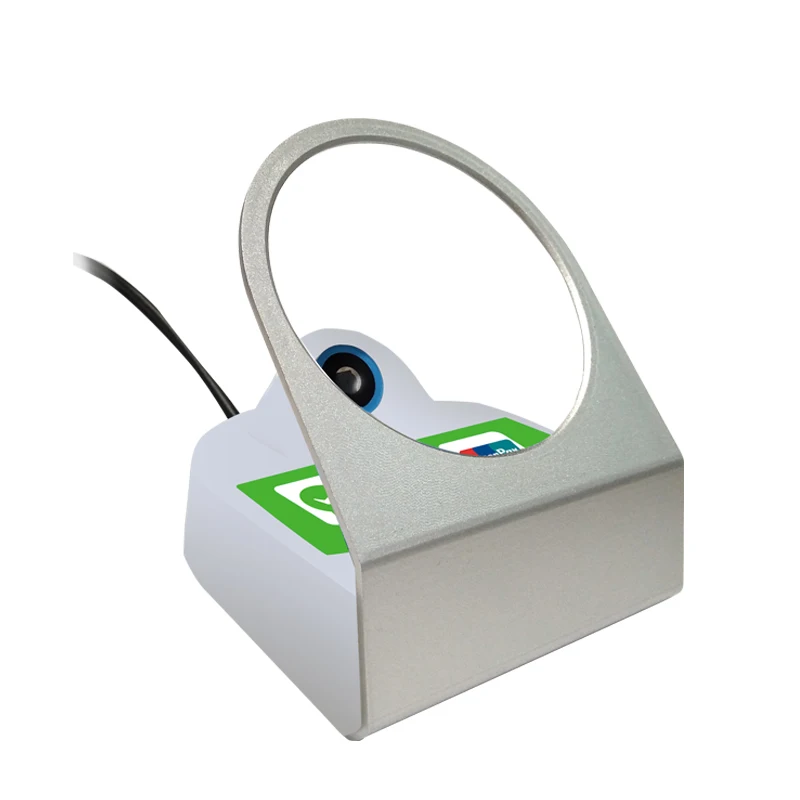

Barcode Scanner Usb Fast Scanning 2D Desktop Barcode Scanner
Barcode Scanner Usb Fast Scanning 2D Desktop Barcode Scanner - Media 1
Barcode Scanner Usb Fast Scanning 2D Desktop Barcode Scanner - Media 2
Barcode Scanner Usb Fast Scanning 2D Desktop Barcode Scanner - Media 3
Barcode Scanner Usb Fast Scanning 2D Desktop Barcode Scanner - Media 4
Barcode Scanner Usb Fast Scanning 2D Desktop Barcode Scanner - Media 5

Barcode Scanner Usb Fast Scanning 2D Desktop Barcode Scanner

Model: WAI-703

Specifications



barcode scanner usb fast scanning 2D desktop barcode scanner

Barcode Scanner Usb Fast Scanning 2D Desktop Barcode ScannerBarcode Scanner Usb Fast Scanning 2D Desktop Barcode ScannerBarcode Scanner Usb Fast Scanning 2D Desktop Barcode Scanner

Barcode Scanner Usb Fast Scanning 2D Desktop Barcode Scanner

Barcode Scanner Usb Fast Scanning 2D Desktop Barcode Scanner

Product Detail



Technical Parameters

Electrical Characteristics

Interface

USB HID KEYBOARD/ RS232

Voltage requirement



5VDC±10%

Current consumption

Max:180mA,Min:40mA

Optical Characteristics

Photo sensor

CMOS array sensor

SENSOR RESOLUTION

640X480 pixels

Light source

625nm white LED

Performance Characteristics

Scan Rate

60fps

Decode angle

Pitch angle:±25°

Skew angle:±25° Tilt angle:±180°

Scan Mode

Auto trigger scan

Min resolution

QR 10mil; CODE128 10mil;

Min.PCS value

25% minimum reflective difference

Identification

1D:CODE128

2D:QR

compatible systems

Linux,Android,Windows XP,Windows 7,Windows 8,Windows 10,Windows Server

2003,Windows Server 2008,Windows Server 2010

Update

Support

Physical Characteristics

Dimensions

MM

Weight

g

Case material

PC GREY

Environmental Characteristics

Temp

0° C to 70° C ( -4°F - 140°F )(operation) ,-40° C to 70° C ( -40°F -185°F) (storage)

-20°to 60°C / -4°to 140°F(operation) -40°to 80°C / -40°to176°F(storage )

Humidity

5%-95%

Ambient Light:

Fluorescent light 1600 Lux ;direct sun light 86000 Lux

Regulatory

Electrical Safety

UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1/IEC60950-1 2nd ed.

LED Safety

IEC/EN60825-1:2001, IEC/EN62471:2006

EMI/RFI

FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN55024

Environmental

Compliant with RoHS directive 2002/95/EEC
