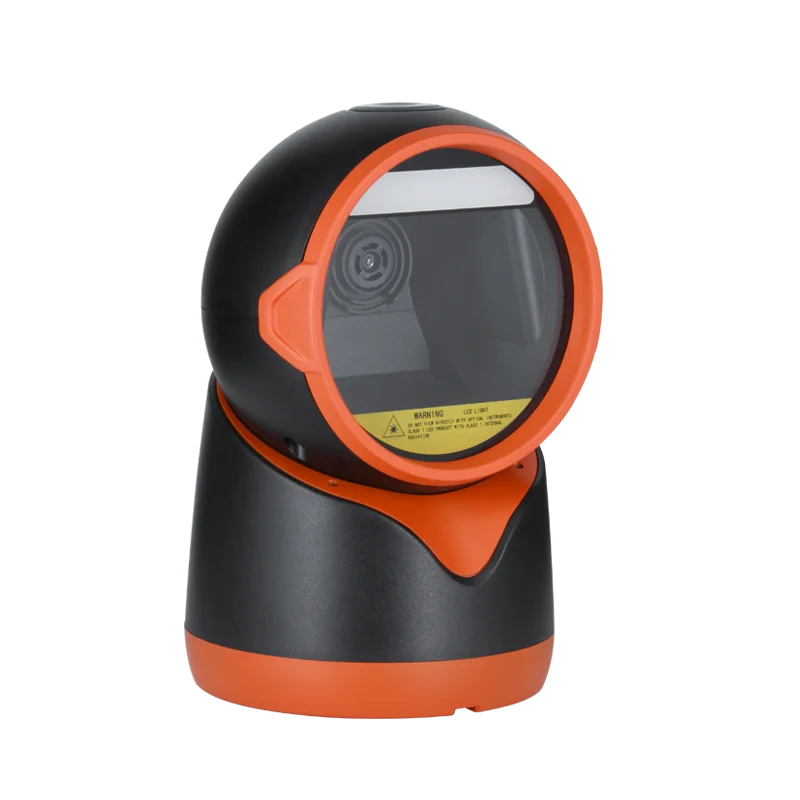

Hot Sell 3d Scanner Price 32 Bit Omnidirectional QR Code 1d Automatic Table Top 2d Barcode Scanner
Model: WAI-5000
Specifications
Product Description
Specification
Interface Supported | RS-232 |
Input Voltage | DC 5V±5% |
Current | Max:150mA |
Image Sensor | CMOS Array Sensor |
Sensor Resolution | 1280 X 800 Pixels |
Light Source | RED LED |
Decoding speed | 120FPS |
Scanning Angle | Pitch angle:±60°;Skew angle:±60°;Tilt angle:±360° |
Field of View | 46H),30V) |
Min Resolution | 3mil |
Min .PCS value | 〉20% UPC/EAN 13（13mil） |
Language | Multiple Languages |
Data Edition | Support for custom data output |
Decode Capability | 1D：Codabar,Code 39,Code 32,Interleaved 2 of 5,Industrial 2 of 5,Matrix 2 of 5 Code 93,Code 128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,Code 11 Code 128 UPC-A ,UPC-E ,EAN/JAN-8，GS1 DataBar，GS1 DataBar Limited，GS1 DataBar Expanded 2D：PDF417，Micro PDF417，QR Code，Micro QR，Data Matrix，Aztec Code |
Dimensions | 94mm*100mm*152mm(L*W*H) |
Weight | 260g |
Indicator | Beeper, LED |
Temperature | -20°∽50°C (operation) -40°∽70°C (storage) |
Humidity | Relative humidity: 5% to 95% (no condensation) |
Shock Drop Test | 1.5m drop onto concrete surface |
