1D 2D Desktop Barcode Scanner QR Reader Screen Platform for POS PC Supermarket Bookstore Retail Mall

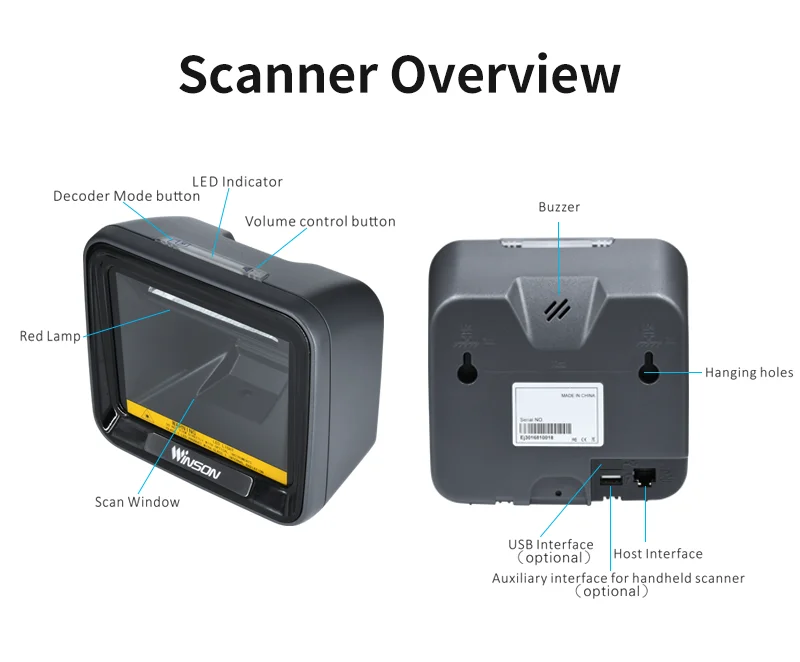

Interface

USB HID Keyboard port/USB Virtual serial port/RS232 Serial port

Input Voltage

DC 5V±5%

Current

Max 335mA

Sensor

CMOS Array Sensor

Sensor Resolution

960 x 640 Pixels（600000 pixels）

Light Source

Red LED

Field of View

Horizontal：39°，Vertical：29°

Min Resolution

1D ≥ 5mils
2D ≥ 10mils

Min .PCS value

>20%UPC/EAN 13(13mil)

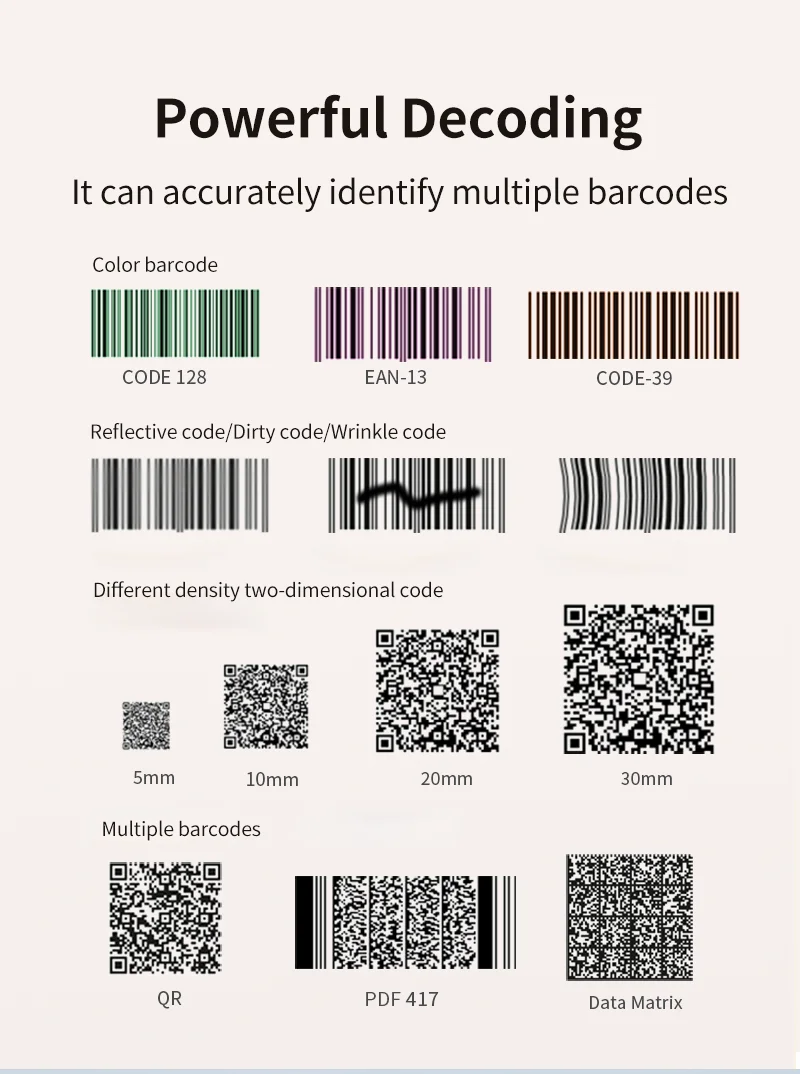

Decode Capability

1D：Codabar，Code 39，Code 32 , Interleaved 2 of 5，NEC 2 of
5，Code 93，Straight 2 of 5(Industrial)，Standard 2 of 5（
IATA），
Matrix 2 of 5，Code 11，Code 128，GS1-128，UPC-A，UPC-E，
EAN-8，EAN-13，MSI Code，GS1 DataBar Expanded，GS1 DataBar
Limited，GS1 DataBar Omnidirectional ，Matrix 2 of 5，Telepen
2D：PDF417, QR code，DataMatrix ，Aztec ，China Post（Hong
Kong 2 of 5），Korea Post，Han Xin code，MaxiCode，
MicroPDF417，GS1 Composite Code，Codablock A ，Codablock F
