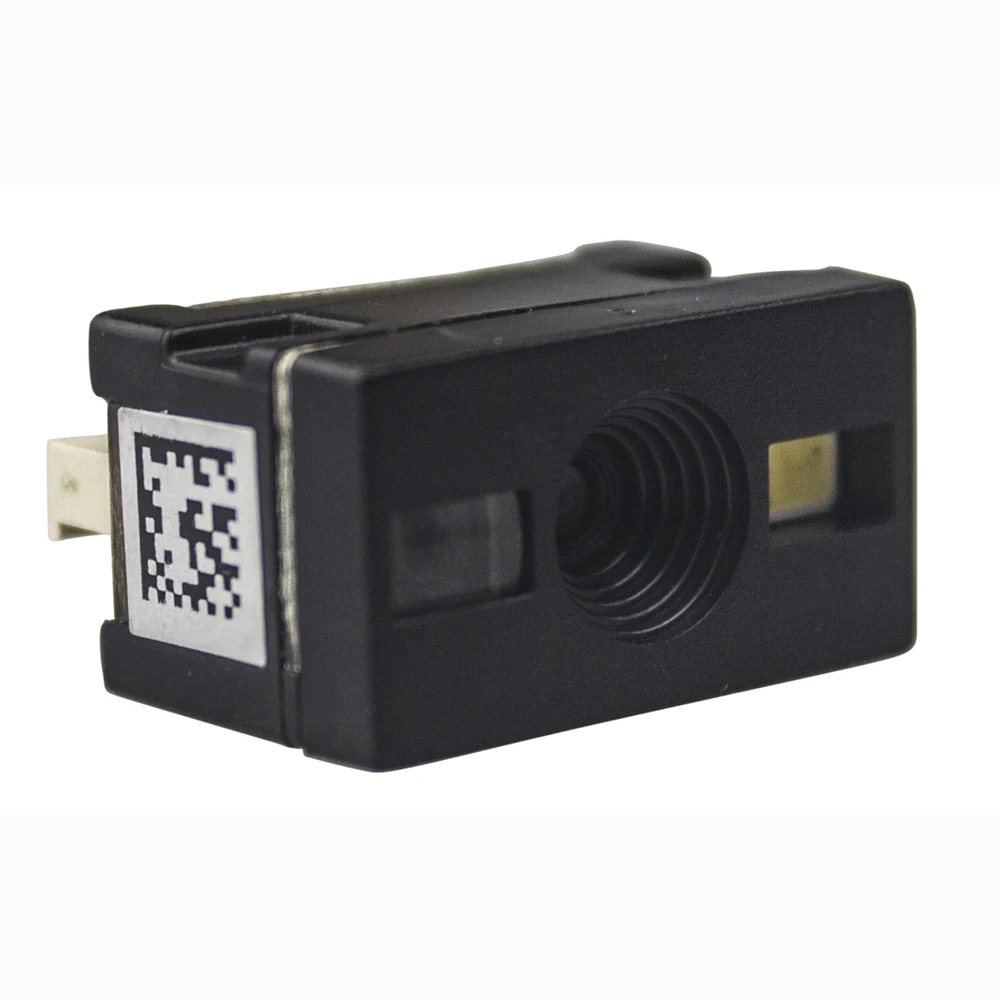

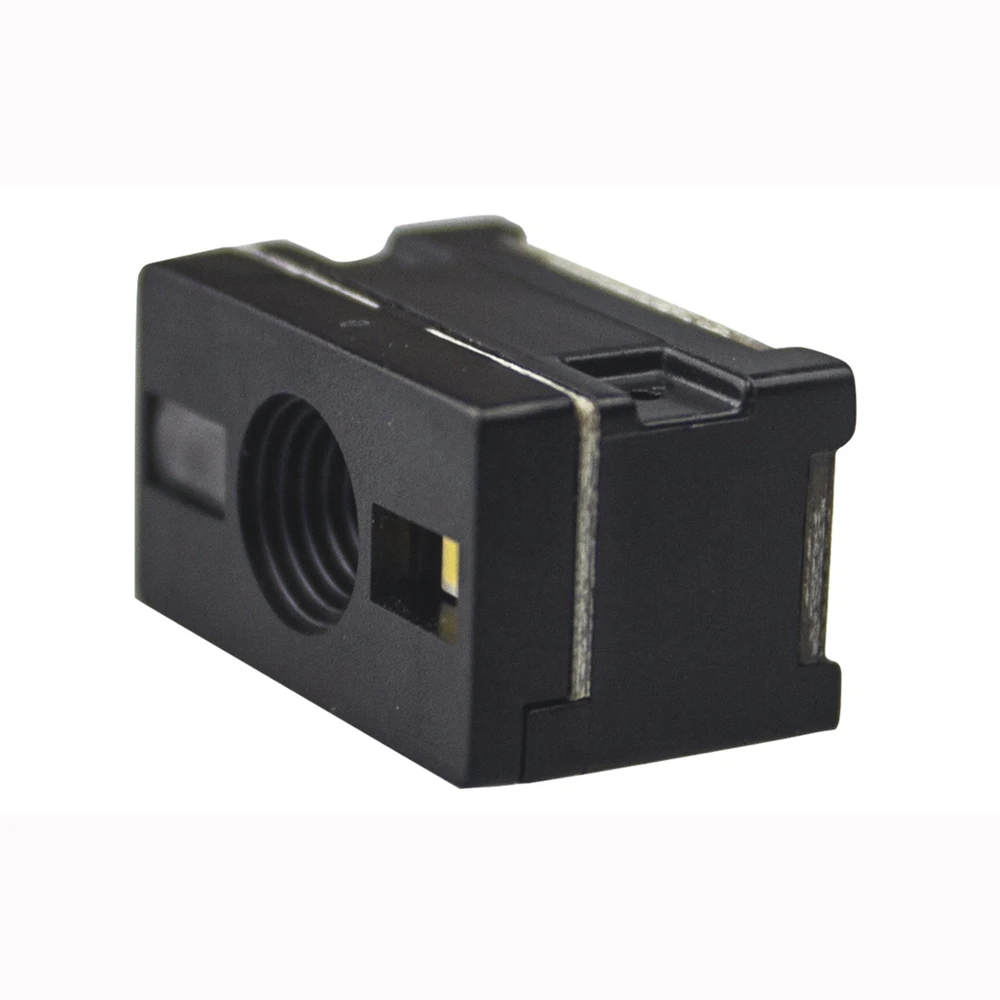

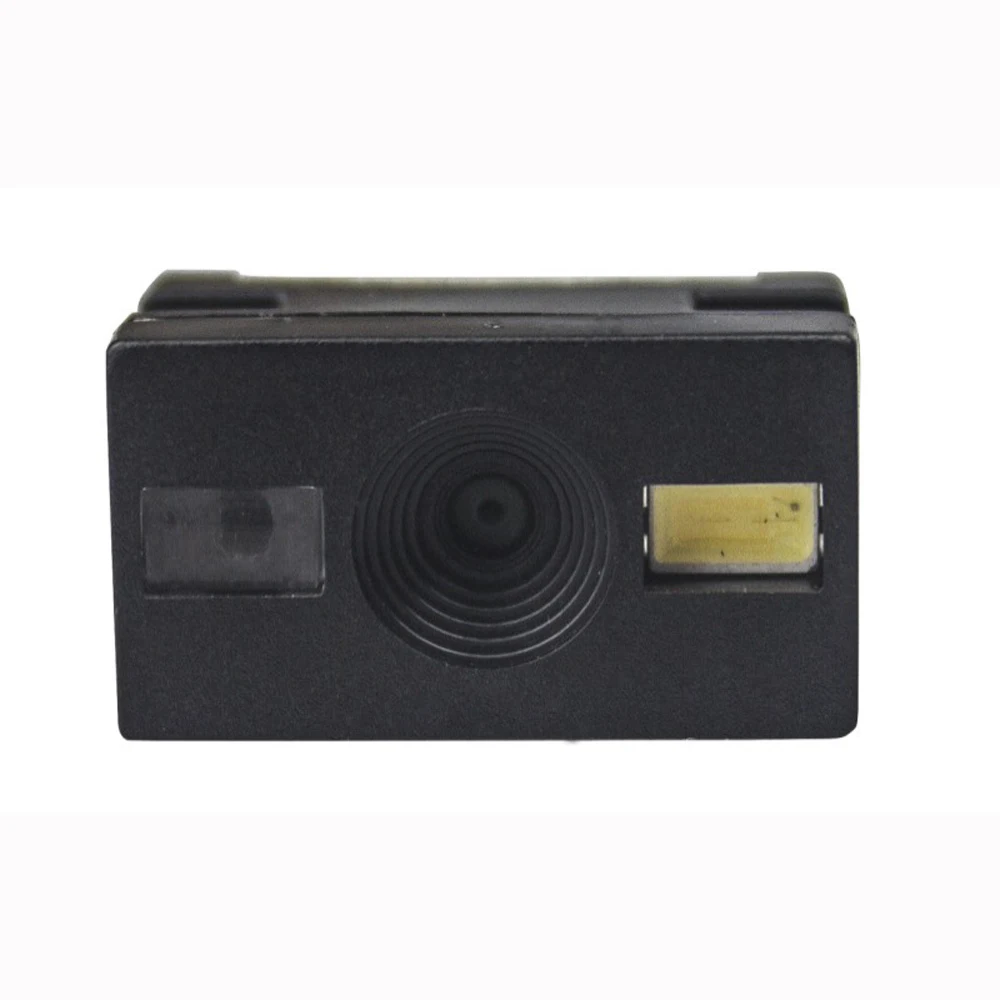

Fixed Mount Qr Code Reader 1D 2D Barcode Scanner Module for Kiosk Vending Machine WDI2022

Technical Parameters

Electrical Characteristics

Interface

TTL-232/USB

Interface connector

0.5-12P FPC

Voltage requirement

DC 3.3V±5%

Current consumption

Max:135mA

Optical Characteristics

Photo sensor

CMOS array sensor

Sensor resolution

648X488 pixels

Light source

white LED*1

Aim light source

Red Bar LED

Performance Characteristics

Scan rate

30fps

Decode angle

Pitch angle:±65°

Skew angle:±60° Tilt angle:±180°

Fixed focus distance

-

Motion capability

-

Image save format

-

Min resolution

1D:5mil(0.127mm)

2D:10mil(0.25mm)

Min.PCS value

>30%UPC/EAN 13(13mil)

Field of View

34°(H),26°(V)

Language

multiple languages

Identification

1D:UPC/EAN,Code 128, Code 39,

Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI , GS1 Databar

2D:QR,PDF417,Data Matrix

Physical Characteristics

Dimension

22 mm x 12 mm x17mm(L*W*H)

Weight

7g

Configurations

Decode

Environmental Characteristics

Temp

-20°to 60°C / -4°to 140°F((operation) ) -40°-to 80°C /-40°to 176°F(storage)

Humidity

5 - 95% (operation) ) 5 - 95% (storage)

Ambient light

fluorescent light 1600 Lux max, direct sun light 80,000 lx max

Shock drop test

1.2m drop onto concrete surface

Regulatory

Electrical safety

UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1/IEC60950-1 2nd ed.

MI/RFI

FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN55024

Environmental

RoHS
