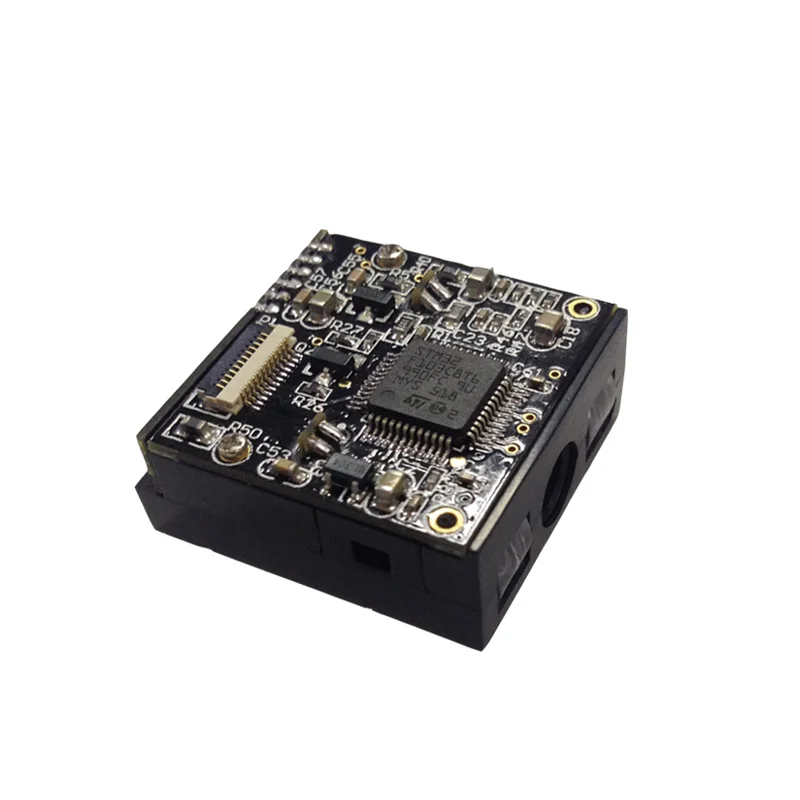

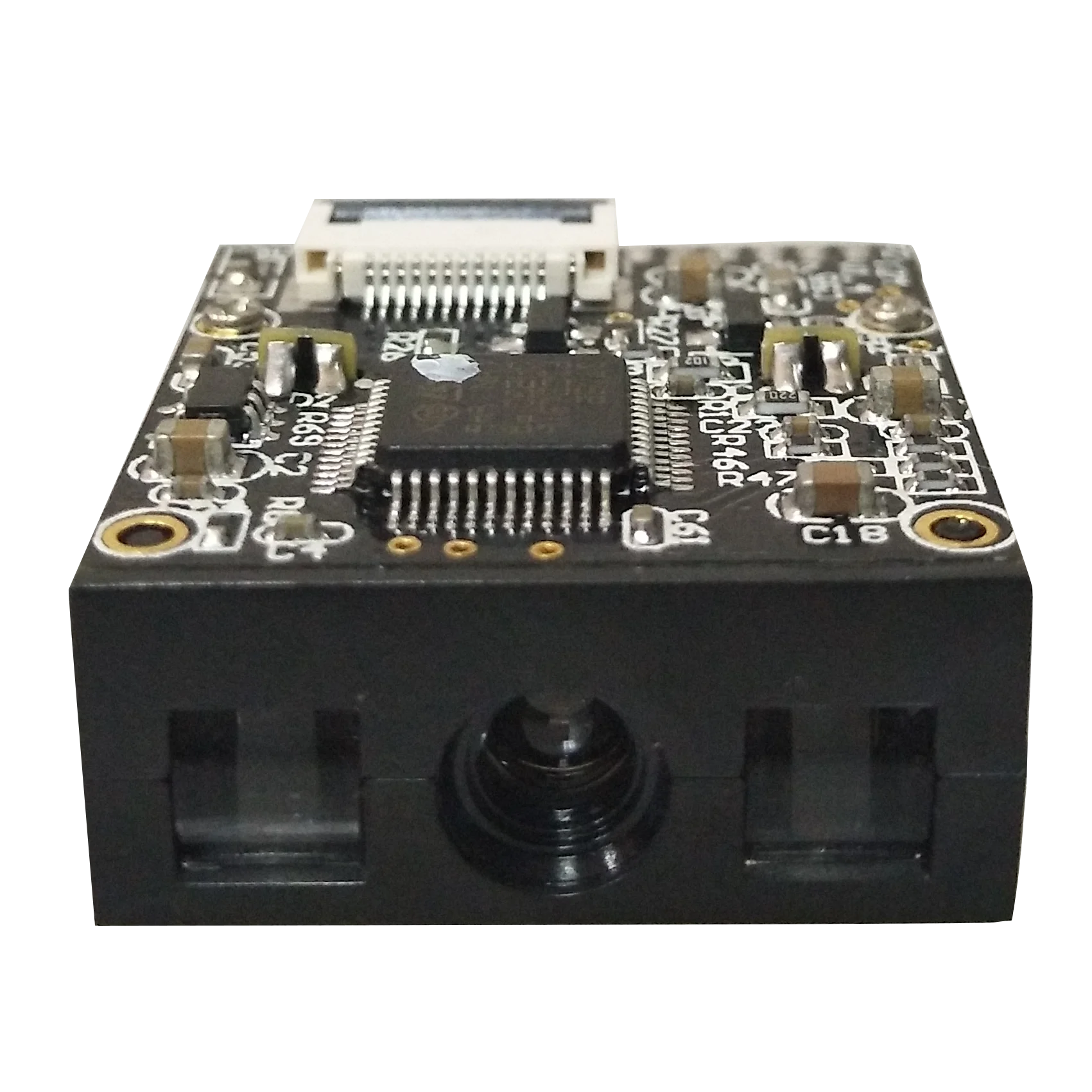

High Quality OEM 1D 2D Qr Reader High Performance Bar Code Modules Barcode Scanner Module CMOS for Kiosk Machine

Better scanning performance

32-bit CPU, scanning code speed up to 350 scans per second.

Support bidirectional scanning Accurate scanning, the error rate is 1 / 5,000,000.

Compatibility

Compatible with the current system used by the general public, such as Windows,Android, Mac OS,IOS,Linux,and so on.

Mechanical Shock

After 1.0m drop onto concrete surface, still work as usual,shockproof and Anti-broken.

Technical parameters

Electrical Characteristics

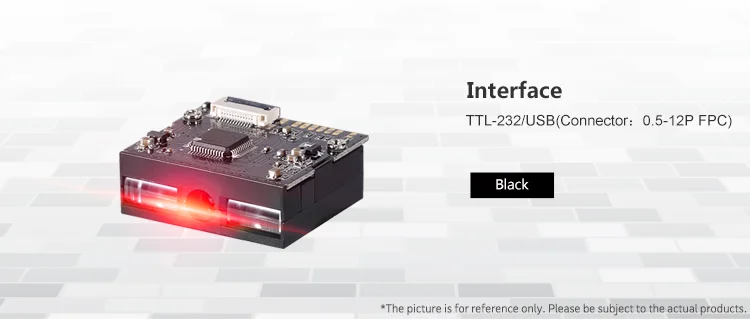

Interface

Interface connector

0.5-12P FPC

Voltage requirement

DC 3.3/5V±10%

Current consumption

Max:120mA

Optical Characteristics

Photo sensor

CCD linear sensor

Sensor Resolution

2500pix

light source

632nm red led

Performance Characteristics

Scan Rate

350±50 (scans/second)

Decode angle

Pitch angle:±30°

Skew angle:±70°

Tilt angle:±45°

Min resolution

0.127mm/5mil(PCS 0.9)

Min.PCS value

>20%UPC/EAN 13(13mil)

Curvature

R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9)

Identification

EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST

Regulatory

Electrical Safety

UL 60950,EN/IEC 60950

EMI/RFI

FCC Part 15 Class B,EN 55024/CISPR 22

Environmental

RoHS

Physical Characteristics

Dimensions

30mm*26 mm*12mm(L*W*H)

Weight

8g

Configurations

Decode

Environmental Characteristics

Temp

-10°-65°C / 32°-149°F(operation)   -30°- 70°C /-22°-158°F(storage)

Humidity

5 - 90% (operation) 5 - 90% (storage)

Ambient Light

Fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max

Shock drop test

1.2m drop onto concrete surface
