Qr Code Reader Embedded1D 2D Barcode Scanner Module for Kiosk Vending Machine

Technical Parameters

Electrical Characteristics

Interface

TTL-232/USB

Interface connector

0.5-12P FPC

Voltage requirement

DC 3.3/5V±10%

Current consumption

Max:120mA

Optical Characteristics

Photo sensor

CCD linear sensor

Sensor Resolution

2500pix

light source

632nm red led

Performance Characteristics

Scan Rate

350±50 (scans/second)

Decode angle

Pitch angle:±30° Skew angle:±70°

Tilt angle:±45°

Min resolution

0.101mm/4mil(PCS 0.9)

Min.PCS value

>20%UPC/EAN 13(13mil)

Curvature

R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9)

Identification

EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED

2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE

POST

Regulatory

Electrical Safety

UL 60950,EN/IEC 60950

EMI/RFI

FCC Part 15 Class B,EN 55024/CISPR 22

Environmental

RoHS

Physical Characteristics

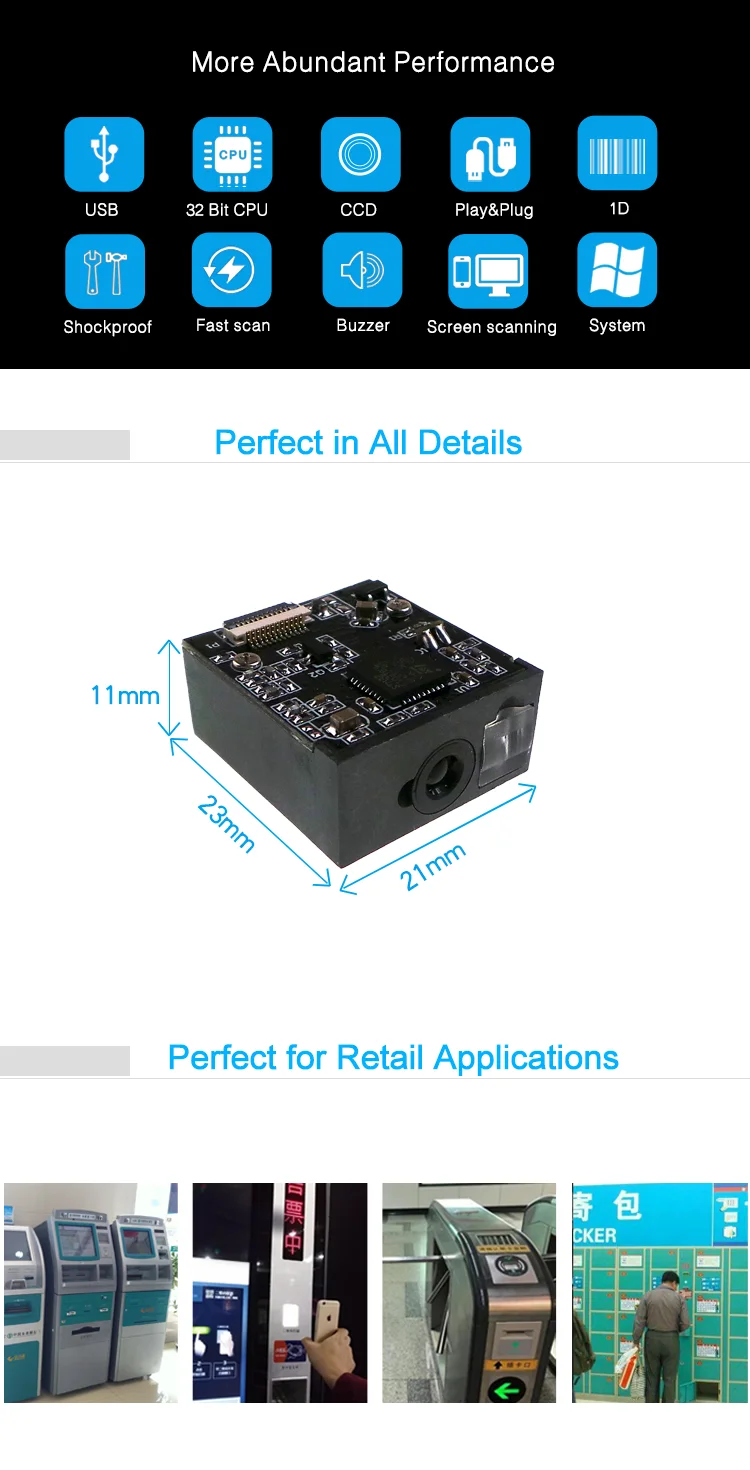

Dimensions

23 mm x 21 mm x11mm(L*W*H)

Weight

6g

Configurations

Decode

Environmental Characteristics

Temp

-0°-65°C / 32°- 149°F((operation) ) -30°- 70°C /-22° - 158°

F(storage)

Humidity

5 - 90% (operation) ) 5 - 90% (storage)

Ambient Light:

fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light

4000 lx max

Shock drop test

1.2m drop onto concrete surface
