Qr Code Reader Embedded 1D 2D Barcode Scanner Module for Kiosk Vending Machine
Model: WDC-2500
Specifications
Product Description
Specification

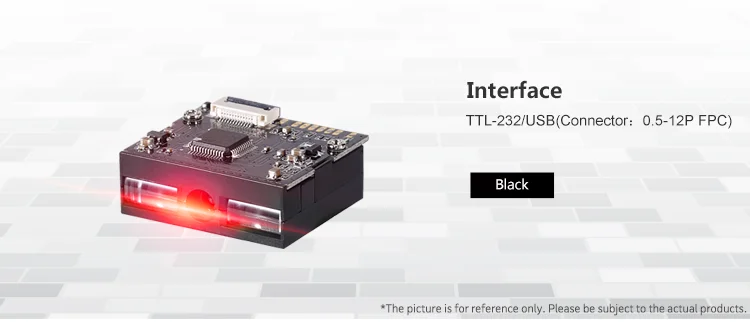

Interface | TTL-232/USB |
Interface connector | 0.5-12P FPC |
Voltage requirement | DC 3.3/5V±10% |
Current consumption | Max:120mA |
Photo sensor | CCD linear sensor |
Sensor Resolution | 2500pix |
light source | 632nm red led |
Scan Rate | 350±50 (scans/second) |
Decode angle | Pitch angle:±30° Skew angle:±70° Tilt angle:±45° |
Min resolution | 0.127mm/5mil(PCS 0.9) |
Min.PCS value | >20%UPC/EAN 13(13mil) |
Curvature | R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9) |

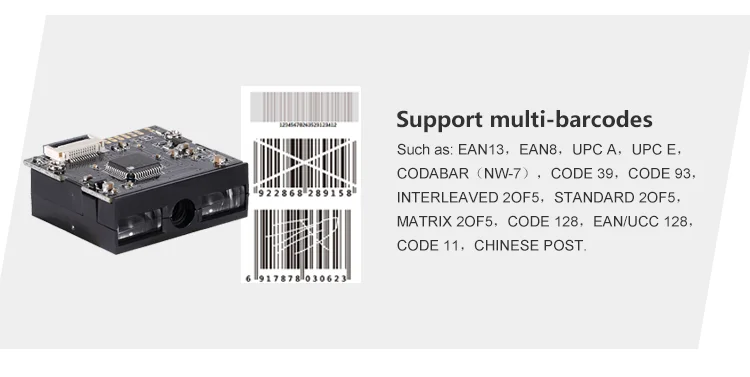

Identification | EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST |
Electrical Safety | UL 60950,EN/IEC 60950 |
EMI/RFI | FCC Part 15 Class B,EN 55024/CISPR 22 |
Environmental | RoHS |
Dimensions | 30mm*26 mm*12mm(L*W*H) |
Weight | 8g |
Configurations | Decode |
Temp | -10°-65°C / 32°-149°F(operation) -30°- 70°C /-22°-158°F(storage) |
Humidity | 5 - 90% (operation) 5 - 90% (storage) |
Ambient Light | Fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max |
Shock drop test | 1.2m drop onto concrete surface |
