Fixed Mount 2D Barcode Scanner Hands-free Imaging Barcode Reader Scanner Module with USB&RS232
Model: WDC3000
Specifications
1D 2D Embedded Barcode Scanner QR Code Scanner Module for Supermarket Warehouse

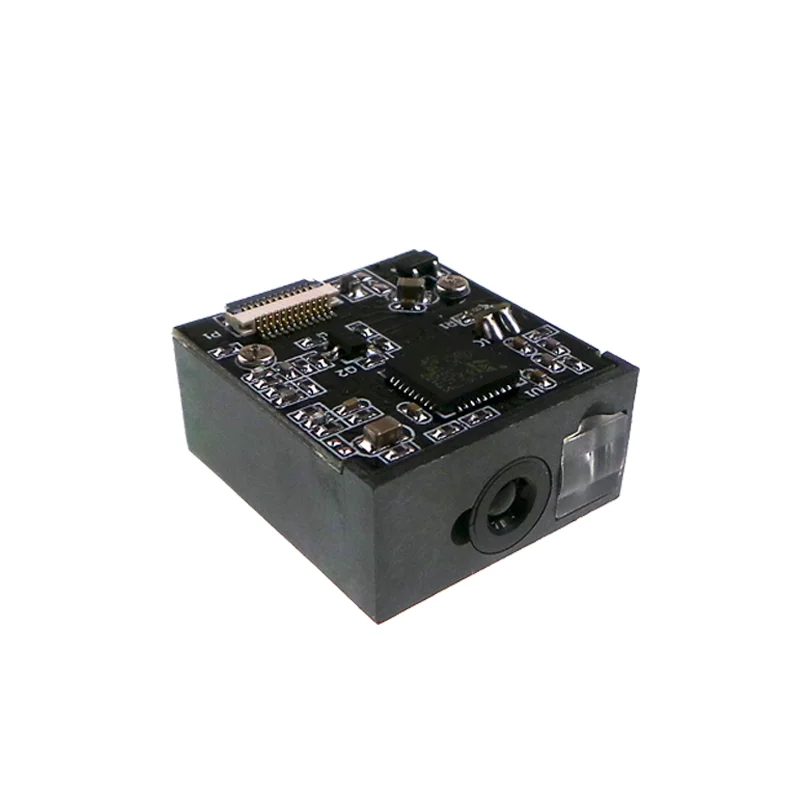

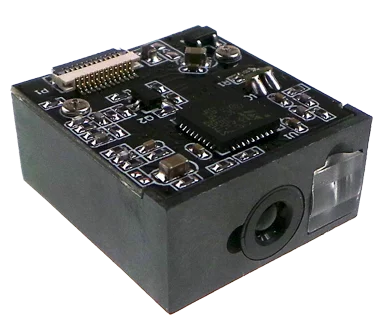

| 1.Winson WDC-3000 CCD Bar Code Scanner Engine Small Code Reader Module OEM. |
| 2.Support read poorly printed, damaged, low contrast, wide or high-density codes... |
| 3.Support add a prefix/suffix, delete the last four characters, interlaced upload data... |
| 4.OEM applications:vending machine, payment terminal machine, locker, banking machine, packing machine. |
|
Better scanning performance 32-bit CPU, scanning code speed up to 350 scans per second.
Support bidirectional scanning Accurate scanning, the error rate is 1 / 5,000,000. |
 |
 |
|
 |
|
|
Compatibility
Compatible with the current system used by the general public, such as Windows,Android, Mac OS,IOS,Linux,and so on.
|
Mechanical Shock After 1.0m drop onto concrete surface, still work as usual,shockproof and Anti-broken.
|
|
Technical Parameters |
|
|
Electrical Characteristics |
|
|
Interface |
TTL-232/USB |
|
Interface connector |
0.5-12P FPC |
|
Voltage requirement |
DC 3.3/5V±10% |
|
Current consumption |
Max:120mA |
|
Optical Characteristics |
|
|
Photo sensor |
CCD linear sensor |
|
Sensor Resolution |
2500pix |
|
Light source |
632nm red led |
|
Performance Characteristics |
|
|
Scan Rate |
350±50 (scans/second) |
|
Decode angle |
Pitch angle:±30° Skew angle:±70° Tilt angle:±45° |
|
Min resolution |
0.127mm/5mil(PCS 0.9) |
|
Min.PCS value |
>25%UPC/EAN 13(13mil) |
|
Curvature |
R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9) |
|
Identification |

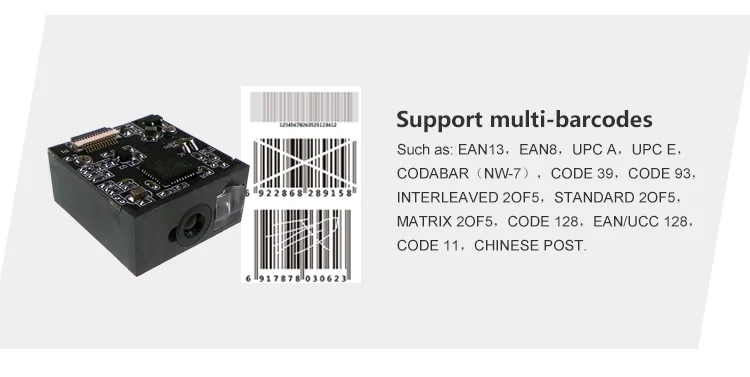

EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST |
|
Regulatory |
|
|
Electrical Safety |
UL 60950,EN/IEC 60950 |
|
EMI/RFI |
FCC Part 15 Class B,EN 55024/CISPR 22 |
|
Environmental |
RoHS |
|
Physical Characteristics |
|
|
Dimensions |
23 mm x 21 mm x11mm(L*W*H) |
|
Weight |
6g |
|
Configurations |
Decode |
|
Environmental Characteristics |
|
|
Temp |
-0°-65°C / 32°-149°F(operation) -30°- 70°C /-22°-158°F(storage) |
|
Humidity |
5 - 90% (operation) 5 - 90% (storage) |
|
Ambient Light |
Fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max |
|
Shock drop test |
1.2m drop onto concrete surface |
