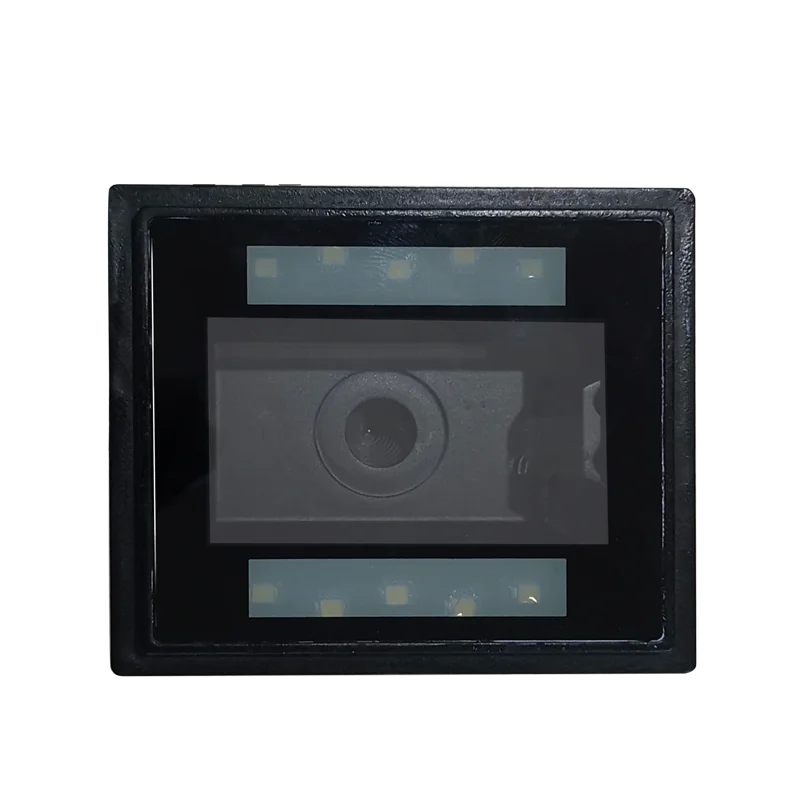

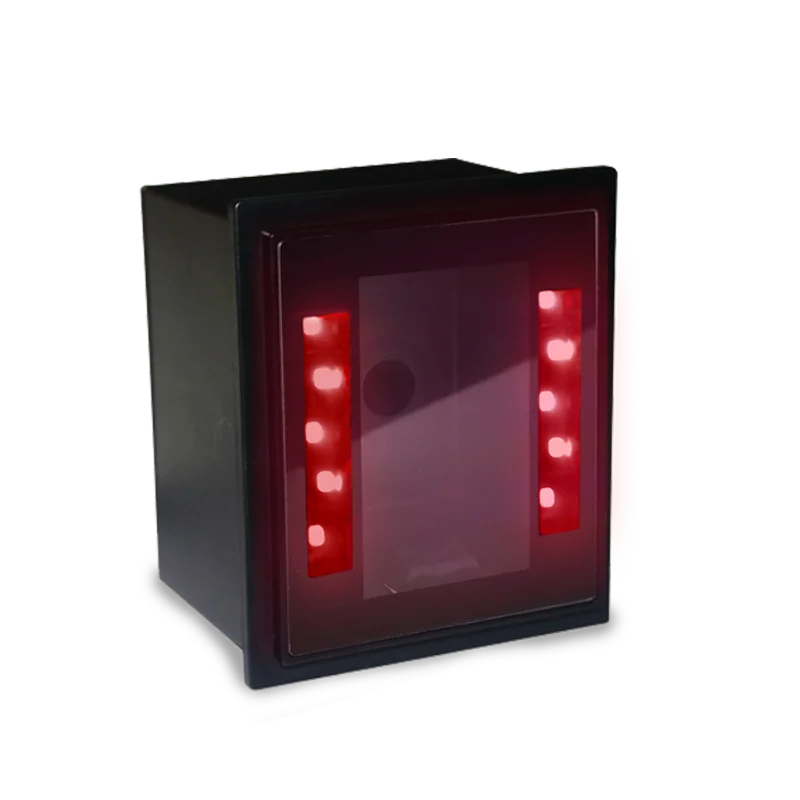

Embedded 1D 2D QR Code Barcode Reader Scanner Module With USB Serial TTL RS232 Port Output

Interface

USB/ RS-232/TTL

Voltage requirement

DC 5V±10%

Current consumption

Max:200mA

photo sensor

CMOS array sensor

SENSOR RESOLUTION

1280X800 pixels

light source

Red LED

AIM light source

Green Bar LED

Decode angle

Pitch angle:±60°;Skew angle:±40°;Tilt angle:±180°

Min resolution

≥5mil(PCS 0.9)

Min.PCS value

>20%UPC/EAN 13(13mil)

Field of View

60°(H),40°(V)

Language

multiple languages

Identification

1D:Codebar,Code128,Code39,Code39,Code93,Code11,EAN13,EAN8,GS1-Databar,GS1-128(EAN-128),Interleaved 2 of 5,Matrix 2 of 5,Industry 2
of 5,UPC-A,UPC-E,ISBN,ISSN, Code 11, MSI
2D:PDF417, Data Matrix, QR Code,Micro PDF417,Micro QR Code,Aztec Code

Dimensions

78mm*67mm*54mm

Weight

180g

Shock drop test

1.2m drop onto concrete surface

Temp

-10° to 60°C / -14° -140°F((operation) ) -30°-to 70°C /-22° - 158°
F(storage)

Humidity

5 - 90% (operation) ) 5 - 90% (storage)
