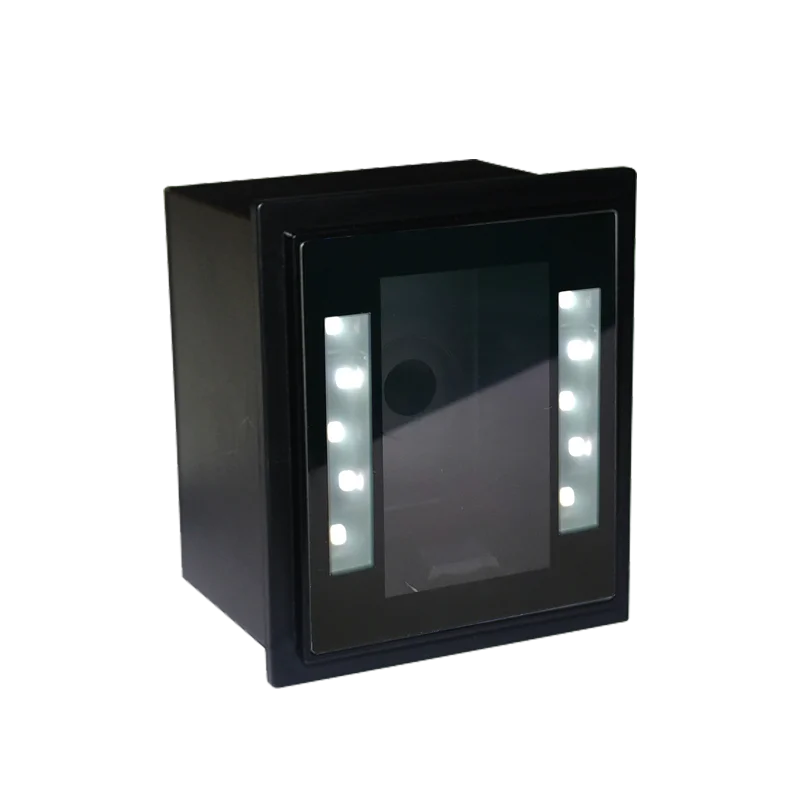

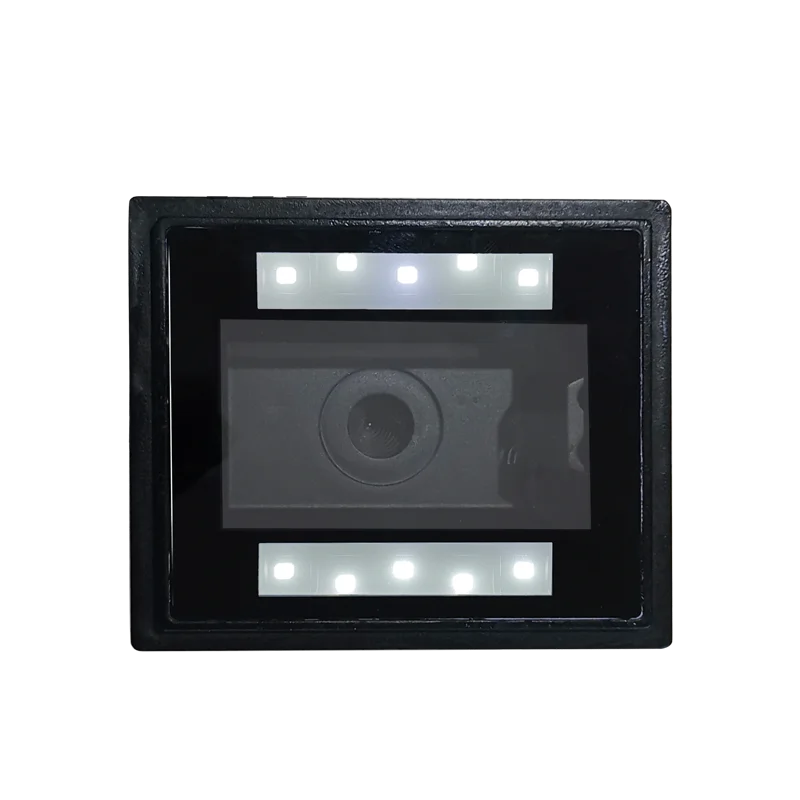

1D 2D QR Barcode Scanner Module Engine Embedded CCD Fixed Bar Code Reader Module for Industrial RS232 USB TTL Interface
Model: Z11-321
Specifications
Product Description
Specification
Interface Supported | USB/ RS-232/TTL |
Input Voltage | DC 5V±5% |
Current | Max:135mA |
Image Sensor | CMOS Array Sensor |
Sensor Resolution | 640X480 Pixels |
Light Source | White LED |
Scanning Angle | Pitch angle:±30°;Skew angle:±40°;Tilt angle:±180° |
Field of View | 68°(H),54°(V) |
Min Resolution | ≥5mil（PCS 0.9） |
Min .PCS value | 〉25% UPC/EAN 13（13mil） |
Decode Capability | 1D：Code 128, Code 39, Code93，EAN-8, EAN13, UPCA, UPCE, ISBN, ISSN 2D：QR code |

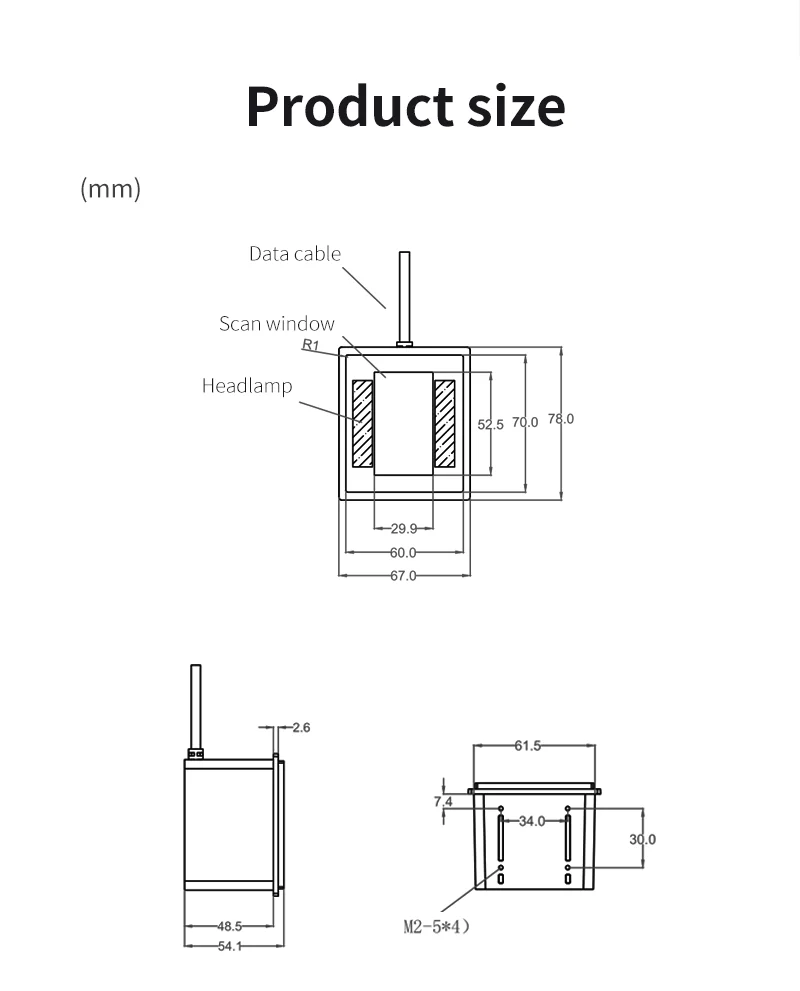

Dimensions | 78mm*67mm*54mm(L*W*H) |
Temperature | -10°∽60°C / -14°∽140°F(operation) /-30°∽70°C /-22°∽158°F(storage) |
Humidity | 5 - 90% (operation) ) 5 - 90% (storage) |
Shock Drop Test | 1.2m drop onto concrete surface |

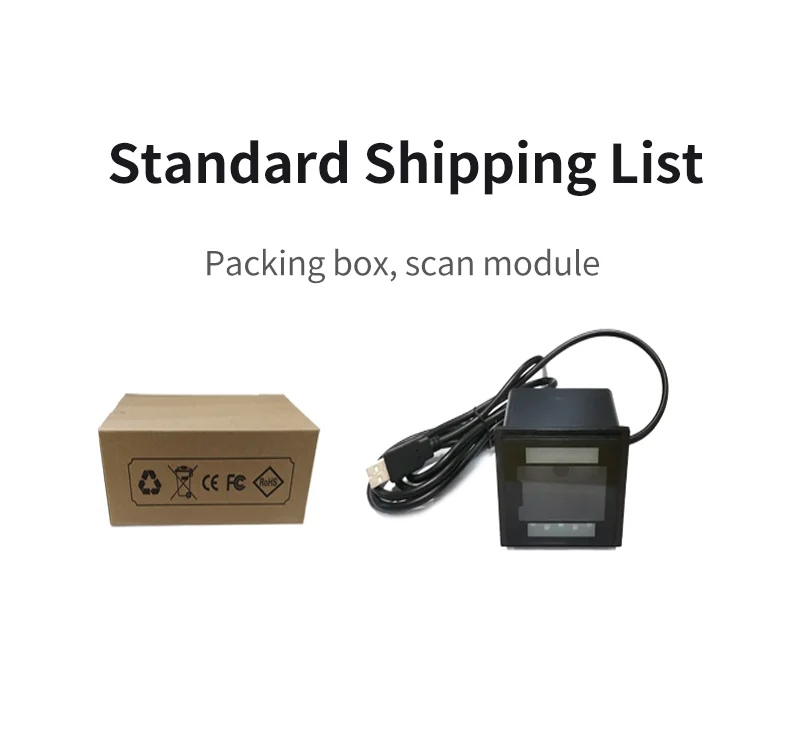

Packing & Delivery
