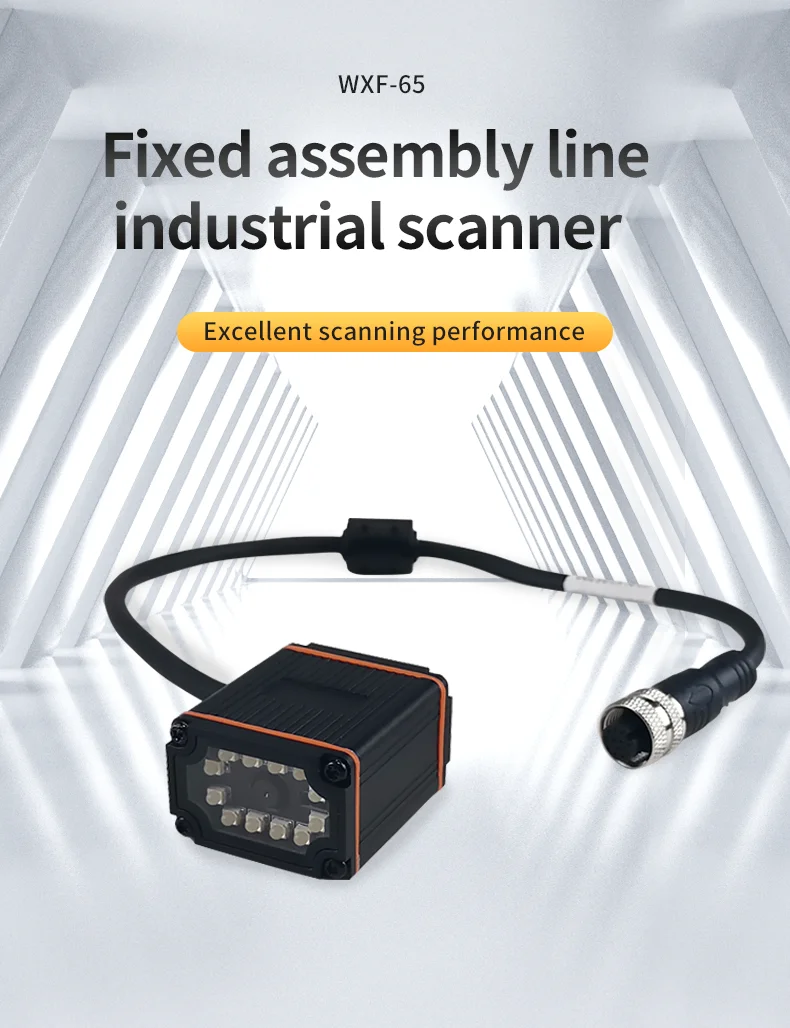

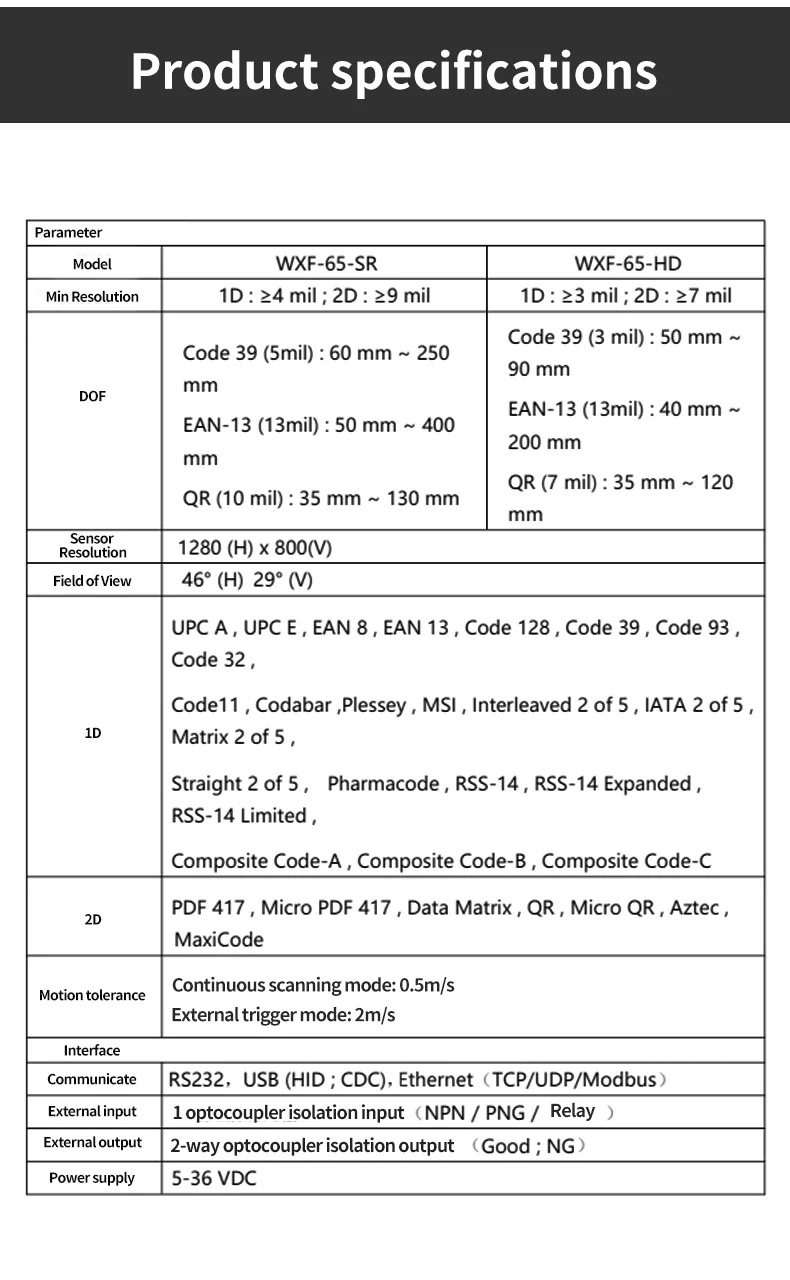

1D 2D QR Code Reader Fixed Mount Barcode Scanner for Kiosk

Interface

USB HID KEYBOARD/USB VCP/RS-232

Voltage requirement

DC 5V±10%

Current Consumption

Max:118mA

Power supply

5-36 VDC

1d

UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 ,
Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode ,
RSS-14 , RSS-14 Expanded , RSS-14 Limited Composite
Code-A , Composite Code-B , Composite Code-C

2D

PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , MaxiCode

Decode Angle

Pitch angle:±30° Skew angle:±70° Tilt angle:±40°

Min X Dimension

0.127mm/5mil(PCS 0.9)
