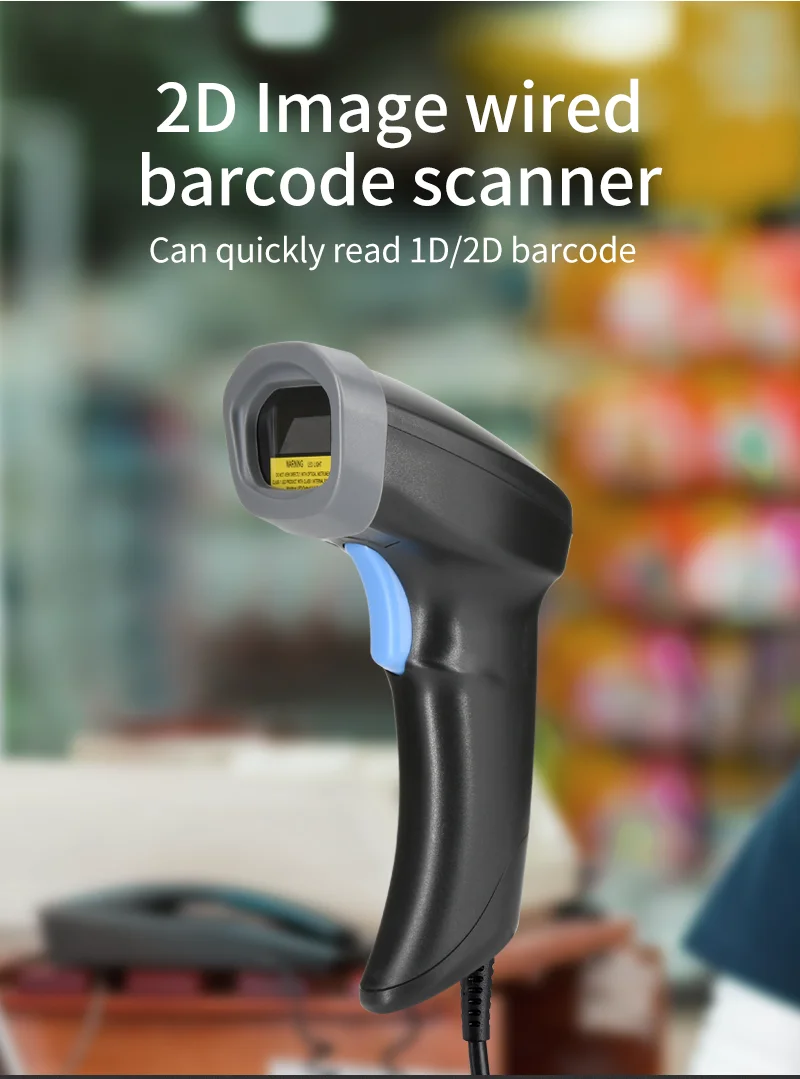

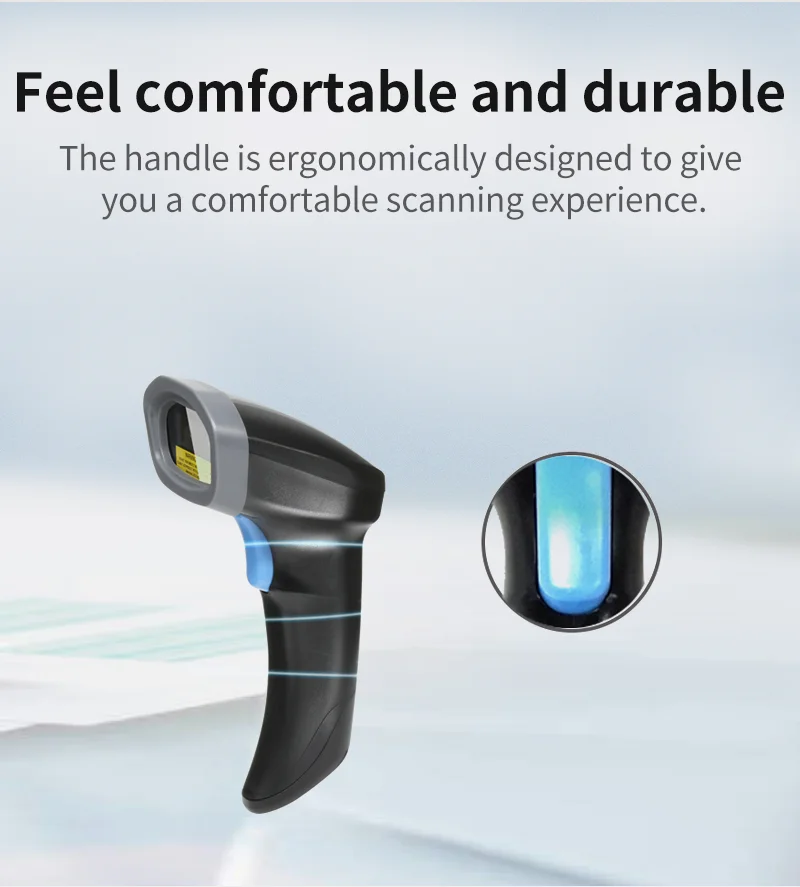

1D 2D Wired USB Qr Bar Code Reader Supermarket Handheld Barcode Scanner for POS Solutions

Interface Supported

USB HID KEYBOARD/USB

Input Voltage

DC 5V±5%

Current

Max:220mA

Image Sensor

CMOS Array Sensor

Sensor Resolution

640 X 480 Pixels

Light Source

white LED

Aiming light source

RED LED

Decoding speed

60FPS

Scanning Angle

Pitch angle:+65°,Skew angle.+65°,Tilt angle:+360°

Field of View

36H),27V)

Min Resolution

4mil

Min .PCS value

〉20% UPC/EAN 13（13mil）

Language

Multiple Languages

Data Edition

Support for custom data output

Decode Capability

1D:EAN-13，EAN-8，UPC-A，UPC-E，ISSN，ISBN，CodaBar， Code 128，Code93，ITF-14，ITF-6，Interleaved 2 of 5， Industrial 2 of 5，Standard 2 of
5，Matrix 2 of 5，GS1 Databar(RSS)，Code 39，Code 11，MSI-Plessey， GS1-Composite
2D:QR Code，Data Matrix，PDF417，Micro PDF417，Micro QR， Aztec，Maxi Code，HanXin code

Dimensions

90mm*65mm*170mm(L*W*H)

Weight

180g

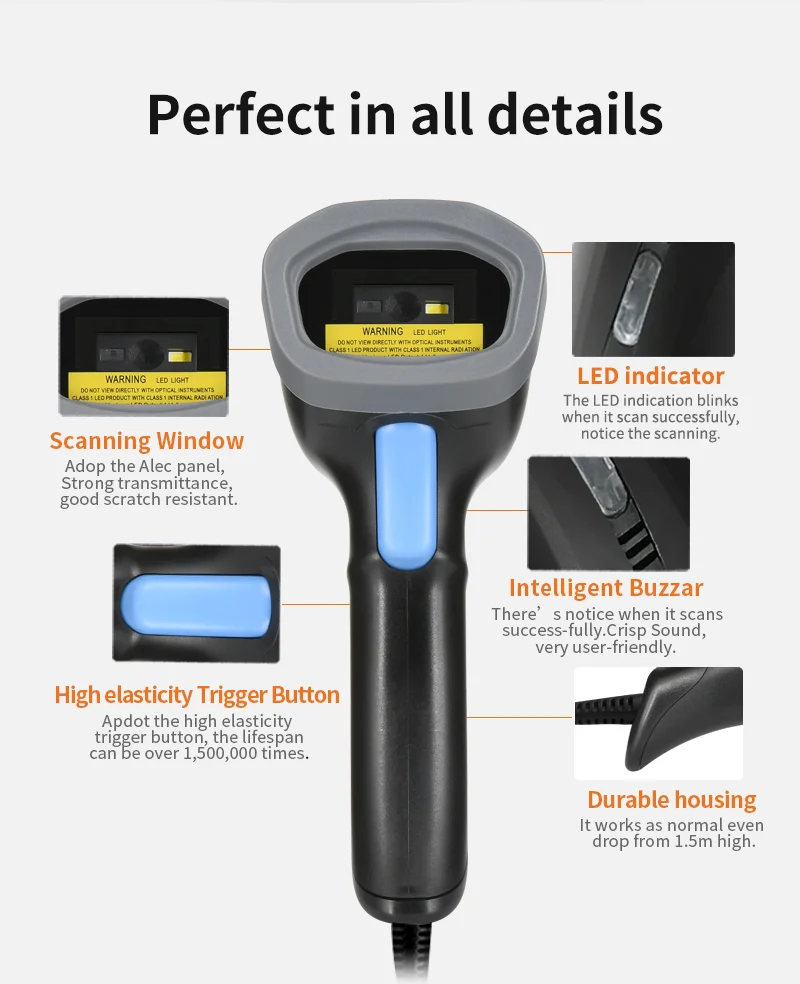

Indicator

Beeper, LED

Temperature

-20°∽60°C (operation)
-40°∽70°C (storage)

Humidity

Relative humidity: 5% to 95% (no condensation)

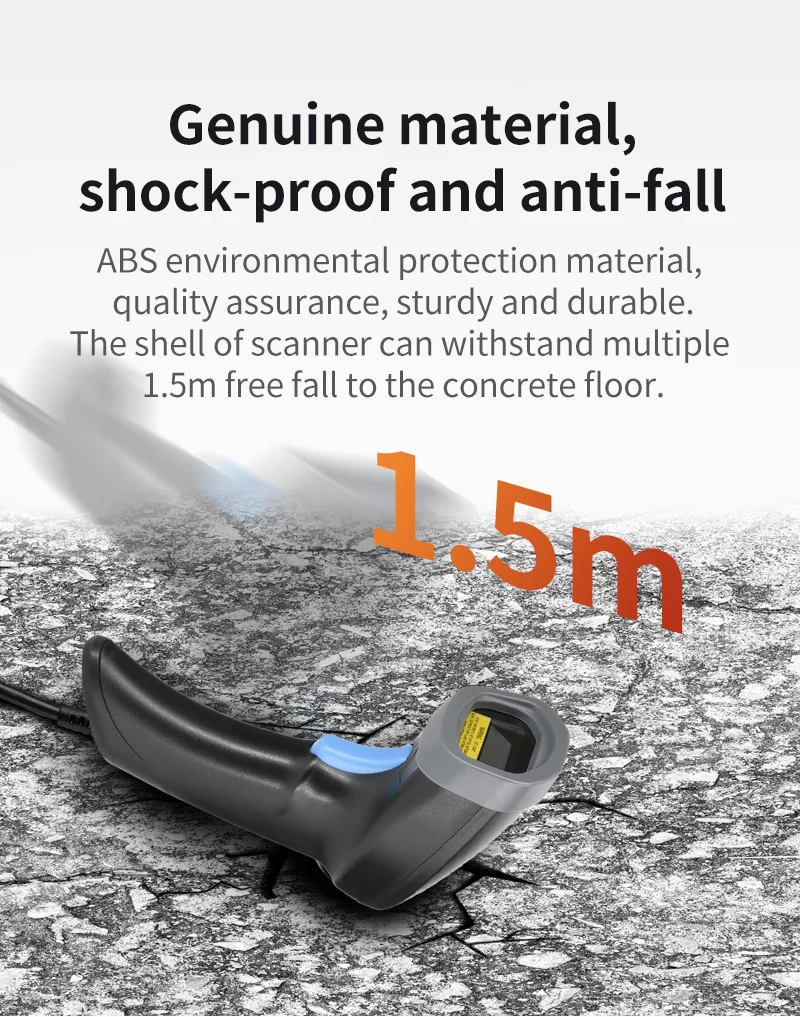

Shock Drop Test

1.5m drop onto concrete surface
