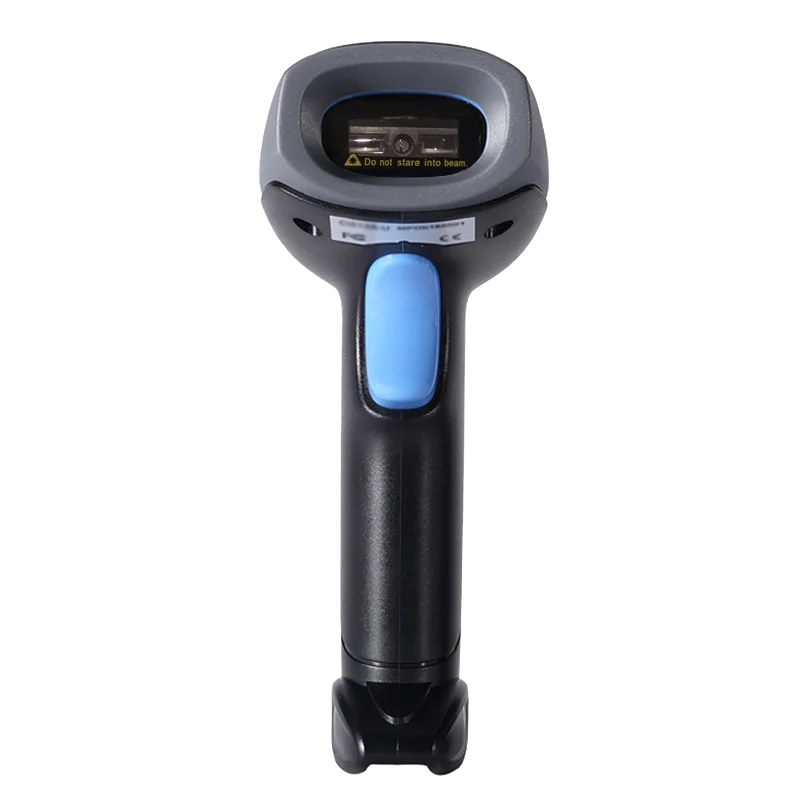

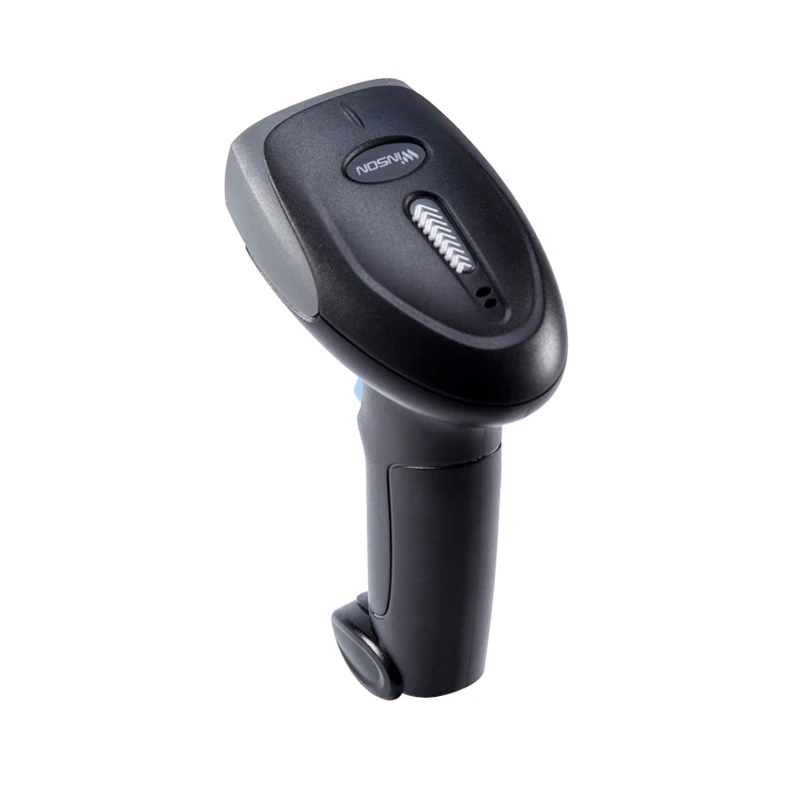

2D Laser Barcode Scanner with Stand Automatic Sensing Scanning QR Bar Code Reader for Mobile Payment
Model: WNC-5070g
Specifications
Product Description
Specification
Interface Supported | RS-232/USB HID KEYBOARD/USB VCP |
Input Voltage | DC 5V±10% |
Current | Max:135mA |
Image Sensor | CCD Linear Sensor |
Sensor Resolution | 2500pixels |
Light Source | 632nm Red LED |
Decoding rate: | 350 scans/second±20 scans/second |
Scanning Angle | Pitch angle:±35°;Skew angle:±75°;Tilt angle:±40° |
Min Resolution | 0.115/4.5mil（PCS 0.9） |
Min .PCS value | 〉25%UPC/EAN 13（13mil） |
Language | Multiple Languages |
Data Edition | Support for custom data output |
Decode Capability | EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，INTERLEAVED 2OF5，STANDARD 2OF5，MATRIX 2OF5，CODE 128，EAN/UCC 128，CODE 11，CHINESE POST |
Dimensions | 97mm*67mm*165mm(L*W*H) |
Weight | 132.4g |
Indicator | Beeper, LED |
Temperature | -20°∽65°C / -4°∽149°F(operation) /-30°∽70°C /-22°∽158°F(storage) |
Humidity | 5 - 90% (operation) ) 5 - 90% (storage) |
Ambient Light: | Up to 80,000 lx |
Shock Drop Test | 1.5m drop onto concrete surface |
Packing & Delivery
Company Profile
FAQ
