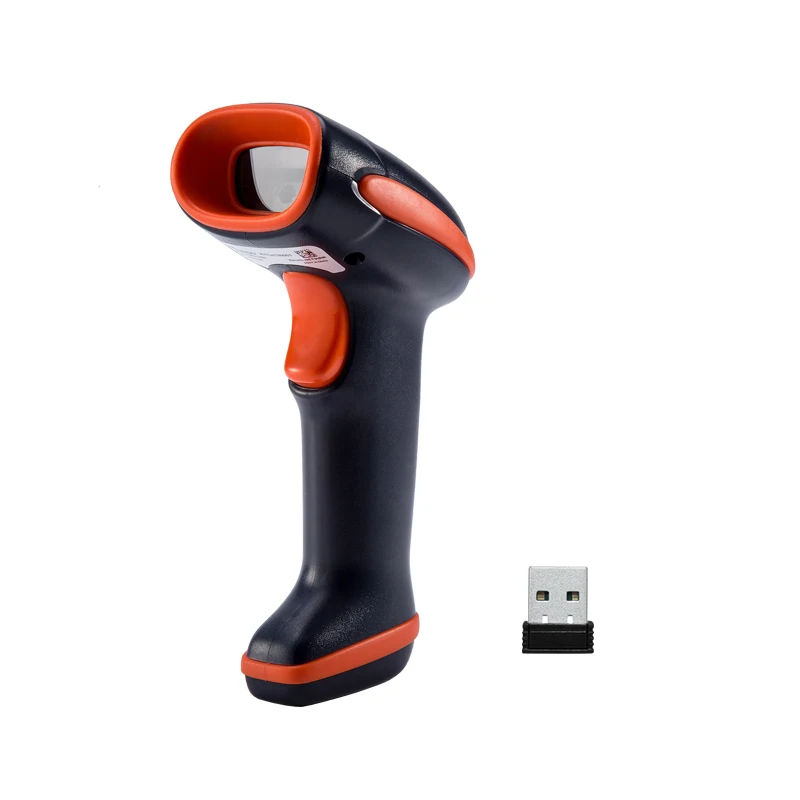

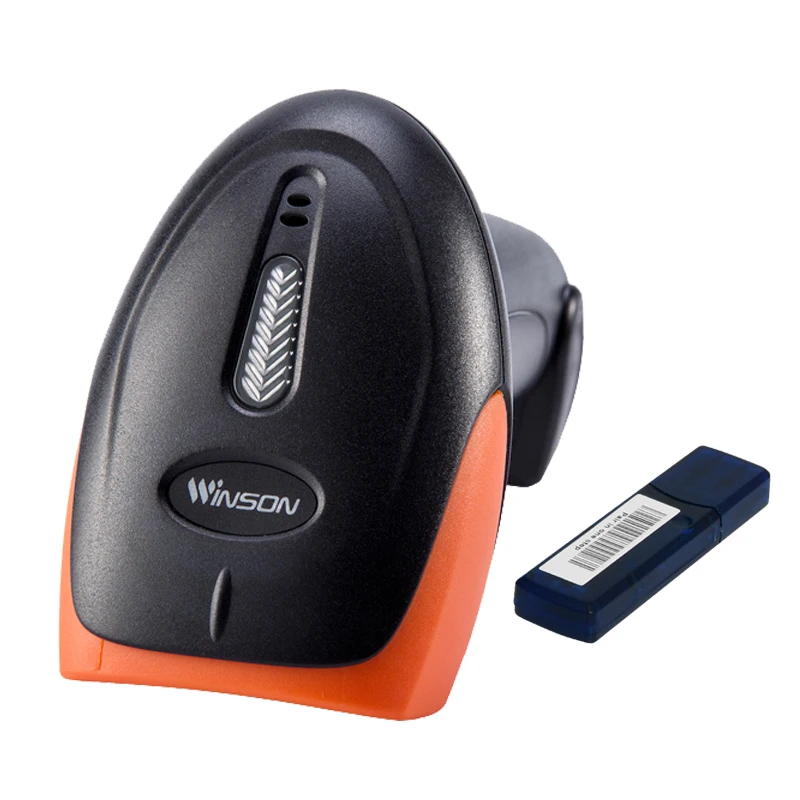

Winson 2d Barcode Scanner 2.4G BT Barcode Reader
Model: WNI-7014PZ
Specifications
Product Description
Specification
Communications | 433 | ||
Communication frequency | 433 to 440MHz | ||
Transmission range | ≤100M(In empty area 10M ) | ||
Data rate | 10kbps | ||
Memory | 100,000@13Byte barcode | ||
Battery capacity | 1500mAh (Lithium battery) | ||
Charging time | 4.5H | ||
The life time of the full charge | 4h(continuous reading situation) 9.5h(Manual reading situation) More than 15 days(Stand-by time) | ||
Communication mode | Read-time mode/Inventory mode/Cache mode | ||
Interface | USB HID KEYBOARD/USB VCP | ||
Voltage requirement | 5VDC±10% | ||
Current consumption | Max:180mA | ||
Photo sensor | CMOS array sensor | ||
SENSOR RESOLUTION | 648×488 pixels | ||
light source | white LED*1 | ||
Aim light source | Red Bar led | ||
Decode angle | Pitch angle:±65° Skew angle:±60° Tilt angle:±180° | ||
Min resolution | 1D:5mil(0.127) | ||
Min.PCS value | >30%UPC/EAN 13(13mil) | ||
Field of View | 34°(H),26°(V) | ||
Identification | 1D:UPC/EAN,Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI GS1 Databar 2D:QR ,PDF417,Data Matrix | ||
Dimensions | Scanner:97 mm x 67 mm x165mm (L*W*H) Receiver:83mm*18mm*13mm(L*W*H) | ||
Weight | Scanner:174.5g Receiver:16g | ||
Temp | -20°to 60°C / -4°-140°F((operation) ) -40°-to 80°C /-40°-176°F(storage) | ||
Humidity | 5 - 95% (operation) ) 5 - 95% (storage) | ||
Shock drop test | 1.2m drop onto concrete surface | ||
Ambient Light: | fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max | ||
Electrical Safety | UL 60950,EN/IEC 60950 | ||
EMI/RFI | FCC Part 15 Class B,EN 55024/CISPR 22 | ||
Environmental | RoHS | ||
